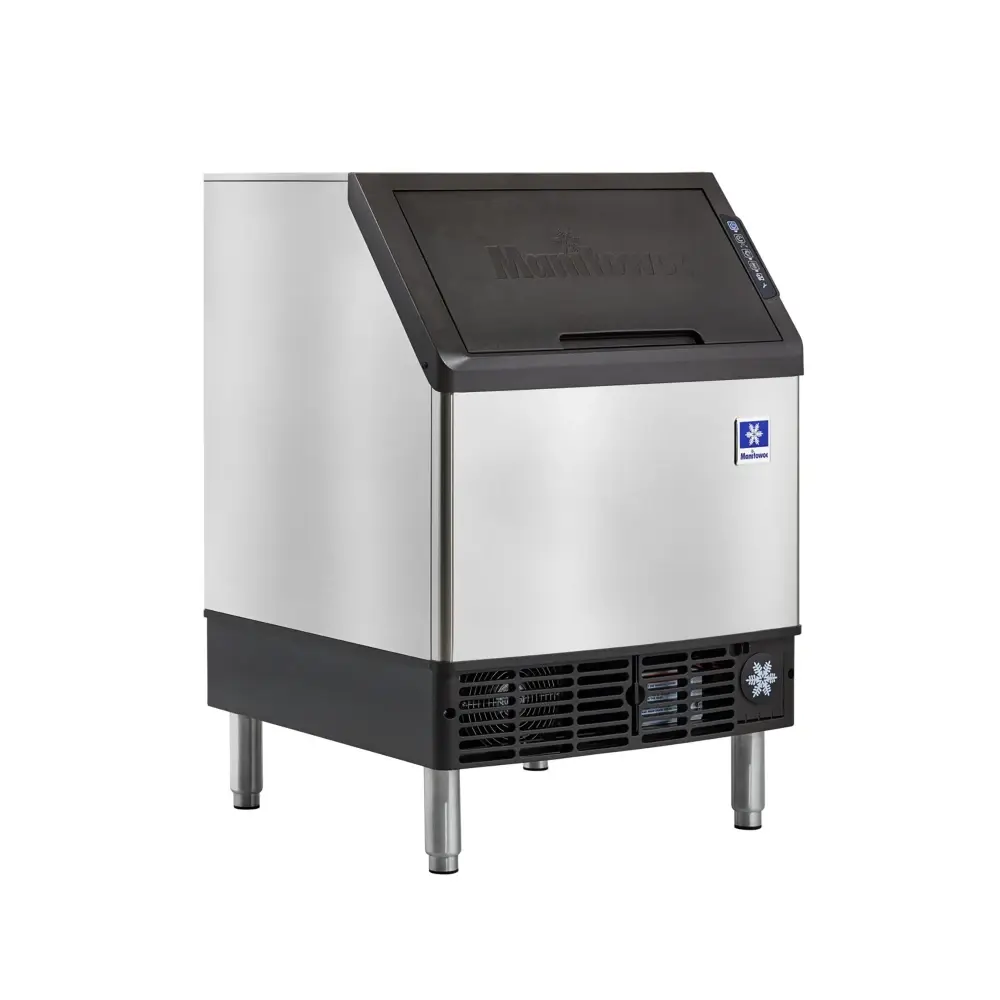

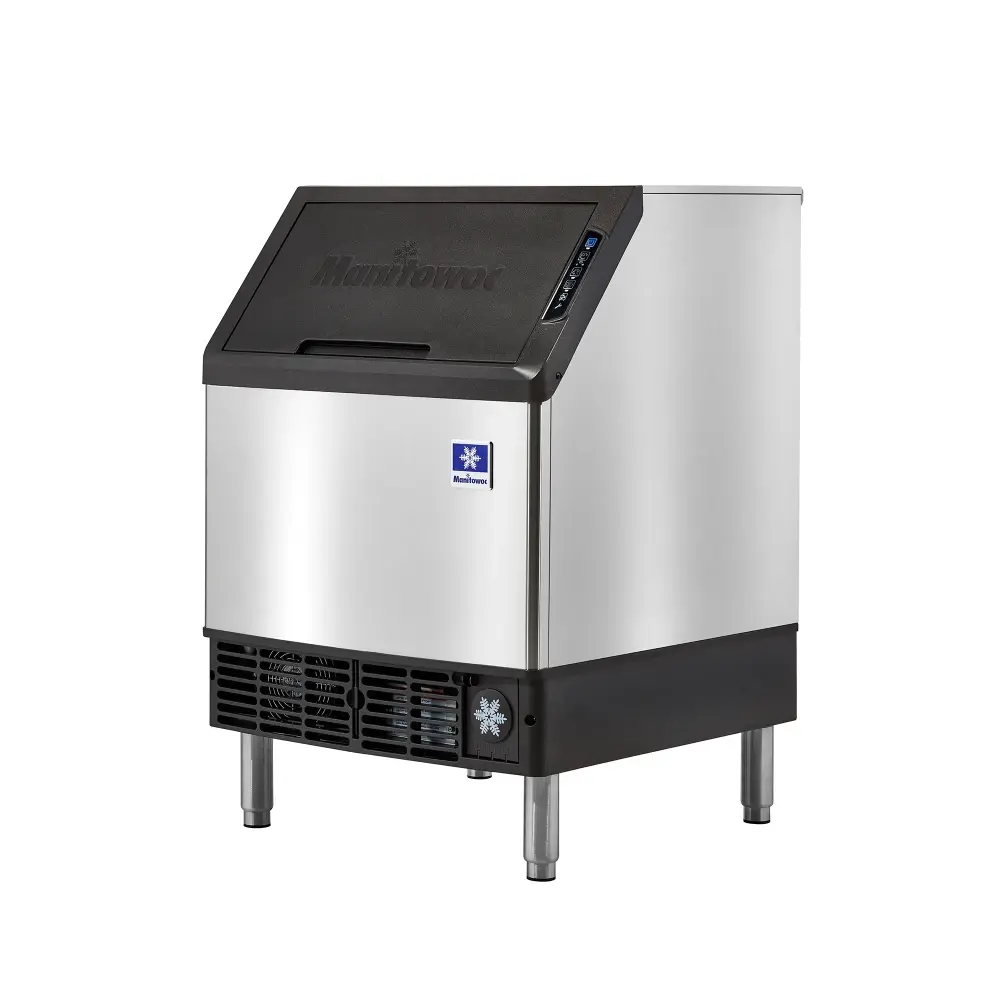

Manitowoc Ice UYP0240W 26"W NEO® Half Cube Undercounter Ice Machine - 235 lbs/day, Water Cooled, Integrated Water Filter

Built for smooth drink service, the angled door on the Manitowoc Ice UYP0240W NEO® undercounter ice machine lifts upward to expose a generous bin opening, allowing bartenders to scoop half-dice cubes without awkward bending or blind grabs. Clear sightlines reduce spills, and the smooth interior wipes clean, keeping bar traffic moving and patrons refreshed through evening rushes. The forward-sliding bin helps provide quick access to key components, while the integrated filtration system helps ensure clean-tasting ice.

To streamline installation in tight kitchen lines, the Manitowoc Ice UYP0240W NEO undercounter ice machine features front-ventilated airflow that draws cool air in and pushes warm air forward without side clearance for reliable performance during peak hours. This arrangement shields internal components from heat buildup, distinguishing it from water-cooled units that demand extra plumbing and higher water costs.

Product Details

• NEO series
• 235-lb. daily production capacity
• 90-lb. storage bin capacity
• Undercounter configuration
• Makes half-dice ice cubes
• Forward-sliding insulated storage
• Front-ventilated design
• Integrated 5-micron onboard water filtration system

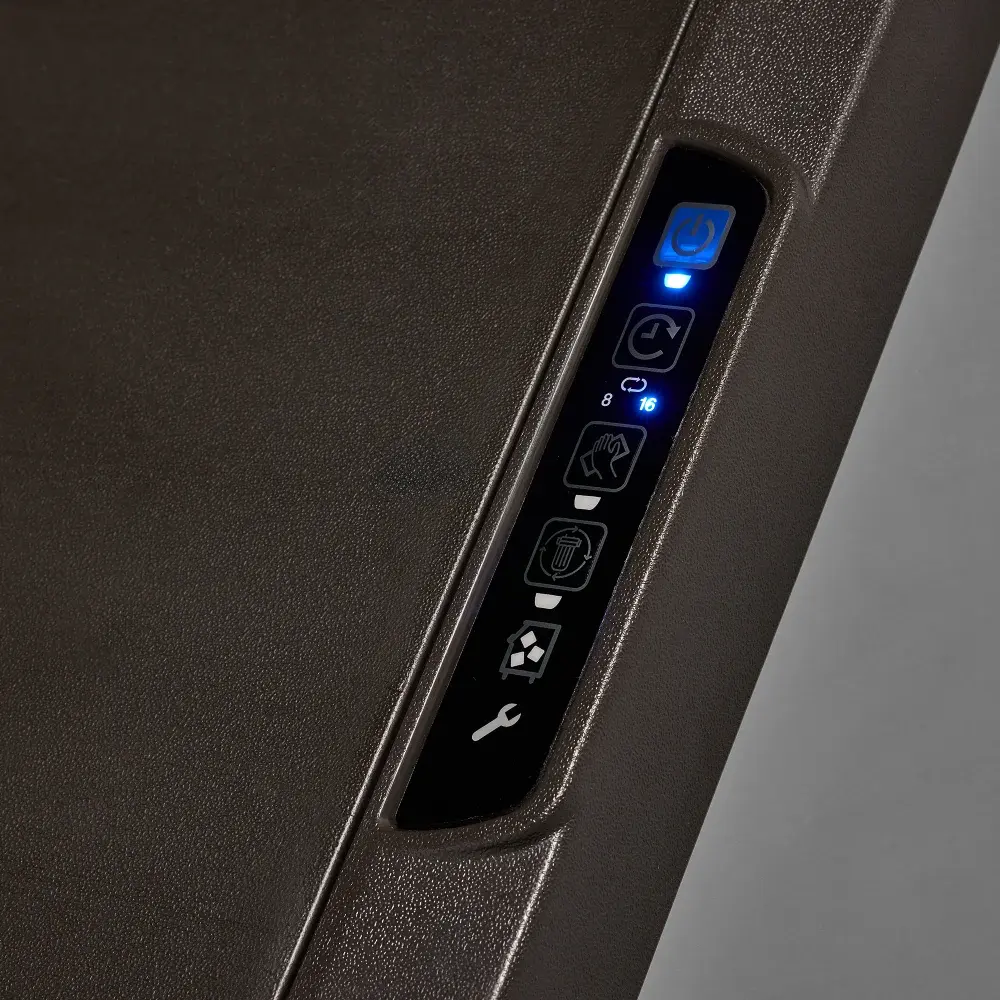

• Touchpad controls
• 6-in. adjustable leveling legs

Refrigeration System

• R290 hydrocarbon refrigerant
• Water-cooled, self-contained condenser
• Cupra-nickel condenser
• Average heat rejection: 4,500 BTU/hr
• Peak heat rejection: 5,200 BTU/hr
• Ambient temperature range: 50-100 degrees F
• Incoming water temperature range: 45-90 degrees F
• Water inlet pressure range: 20-80 psi
• Condenser inlet pressure: 20-150 psi

Dimensions & Utilities

• 26 in. W x 281⁄2 in. D x 381⁄2 in. H
• 6.5 A
• 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug

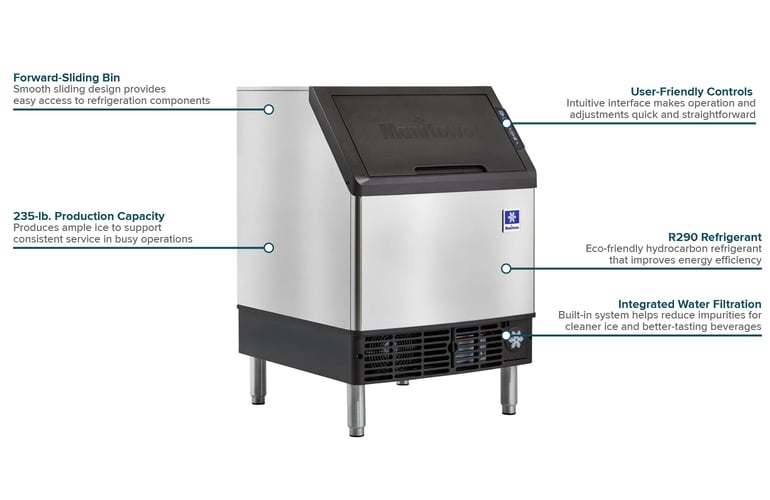

Product Features

*Free shipping on Manitowoc Ice UYP0240W within the 48 contiguous states.

From The Manufacturer

NEO® Undercounter Ice Maker, R290 Refrigerant, integrated on-board water filtration included, half-dice size ice, water-cooled, self-contained, 26"W x 28-1/2"D x 38-1/2"H, production capacity up to 235 lbs./24 hours at 70/50 (214 lbs. AHRI certified at 90/70), 90 lbs. storage capacity, integrated 5 micron water filer, touchpad controls, clean button, filter replacement, full bin, and service indictors, forward sliding storage bin for access to refrigeration components, 6"adjustable legs, Energy Star, NSF, CE, cULus, AHRI

*Image may not depict product color, inclusions or accessories.

Additional Product Information

This product includes a cord and plug

Product made with Hydrocarbon Refrigerants

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

This unit requires a second supply of water for cooling

This unit has a removable air filter for easy maintenance

This product comes with a NEMA 5-15P plug

This product comes with integrated water filtration
