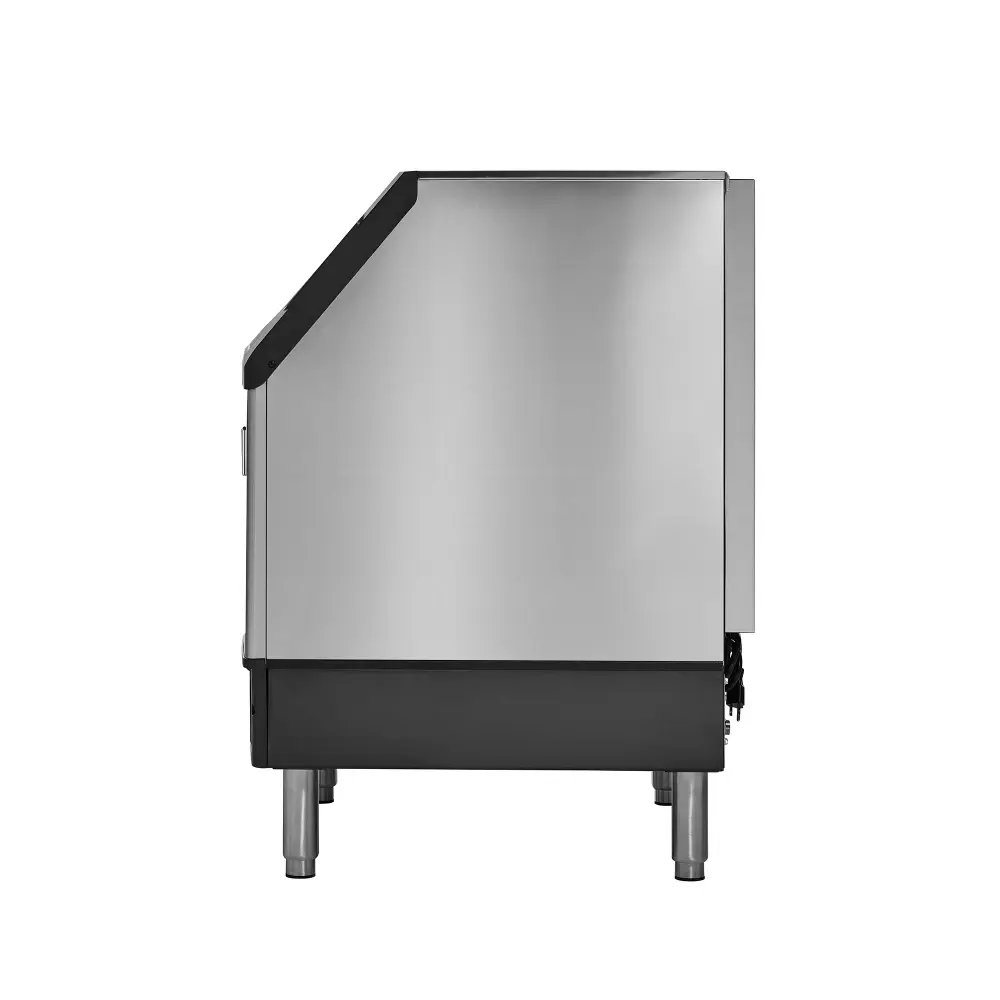

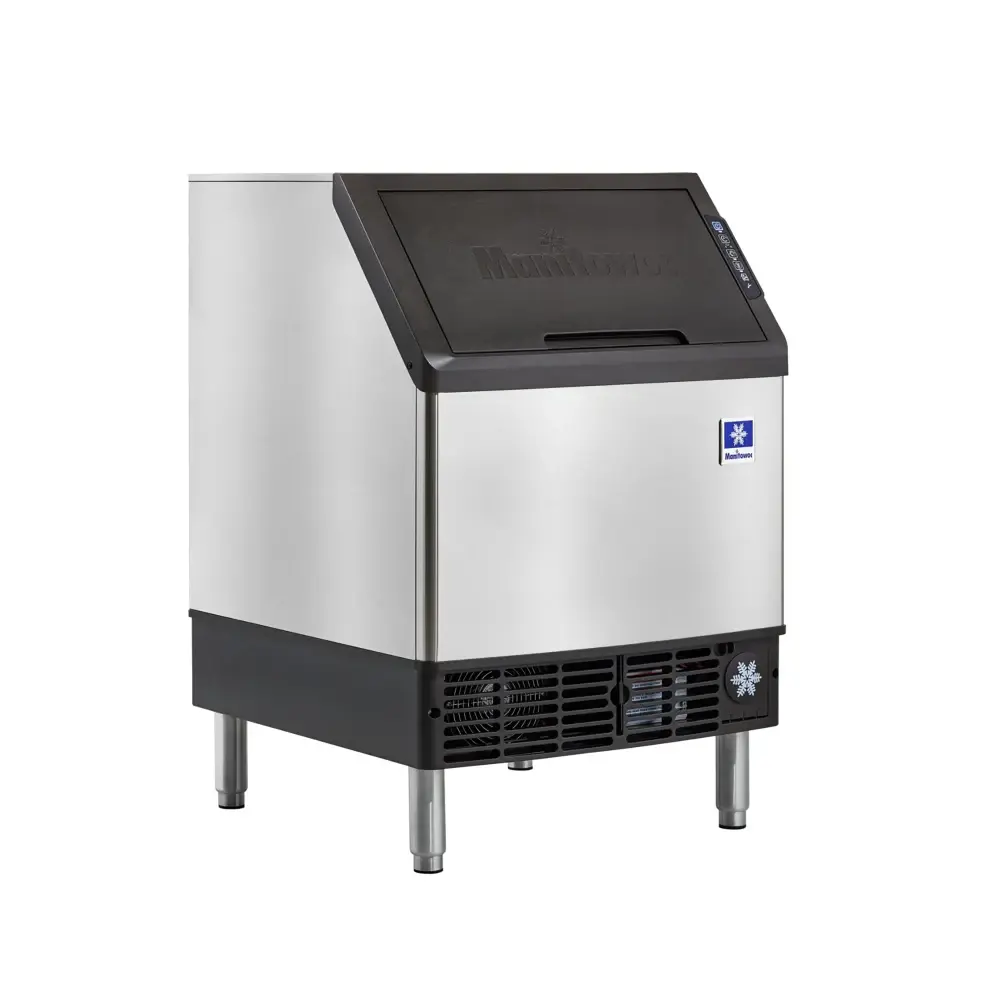

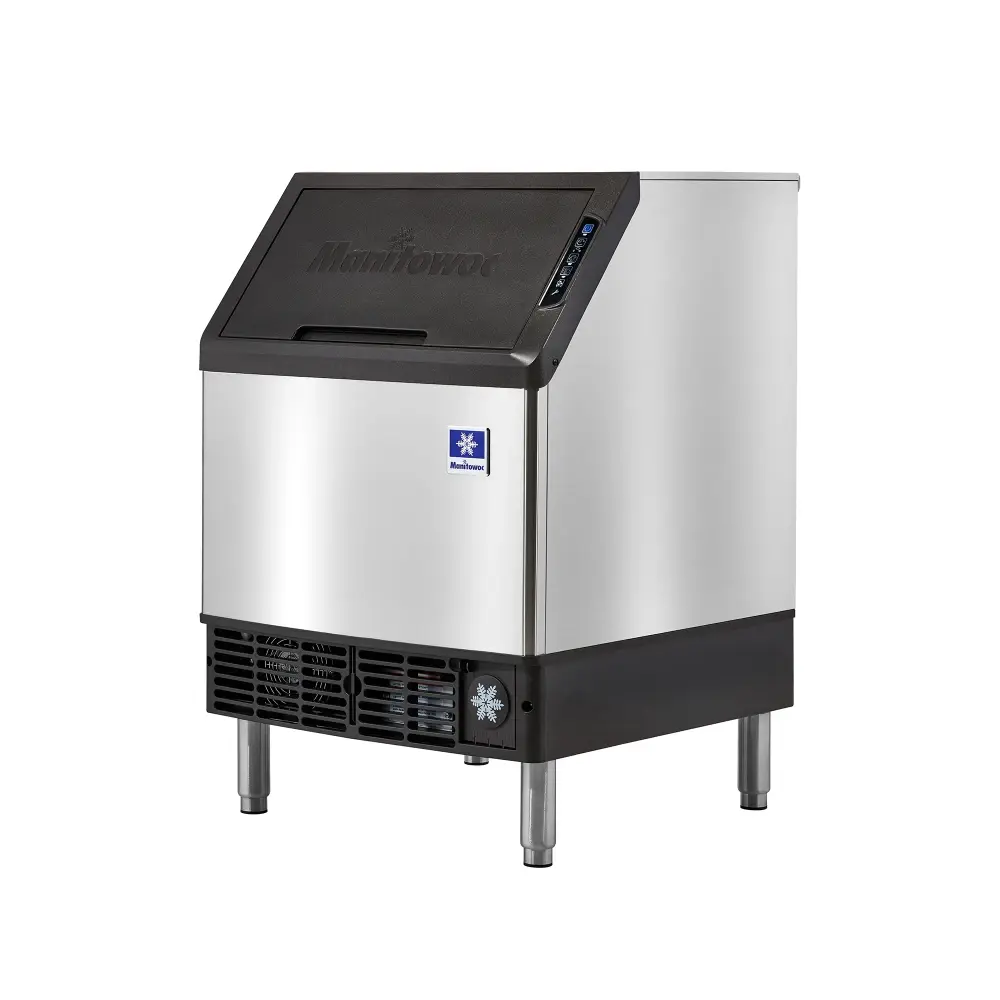

Manitowoc Ice UDP0190A 26"W NEO® Full Cube Undercounter Ice Machine - 200 lbs/day, Air Cooled, Integrated Water Filter

Engineered for compact spaces, the Manitowoc Ice UDP0190A NEO® full cube undercounter ice machine fits beneath standard countertops while producing up to 200 pounds of dice-style ice in 24 hours. This 26-inch-wide unit includes a 90-pound insulated bin with a lift-up front door and a forward-sliding design for quick access to internal components. This ice machine features an onboard 5-micron water filtration system to help reduce sediment buildup and improve ice clarity.

The Manitowoc Ice UDP0190A NEO full cube undercounter ice machine uses an air-cooled, self-contained refrigeration system. Its front-breathing design supports zero-clearance installation next to other equipment. A user-friendly touchpad includes cycle indicators for cleaning, filter status, and service alerts. The unit connects via a gravity drain and includes 6-inch adjustable legs for leveling.

Product Details

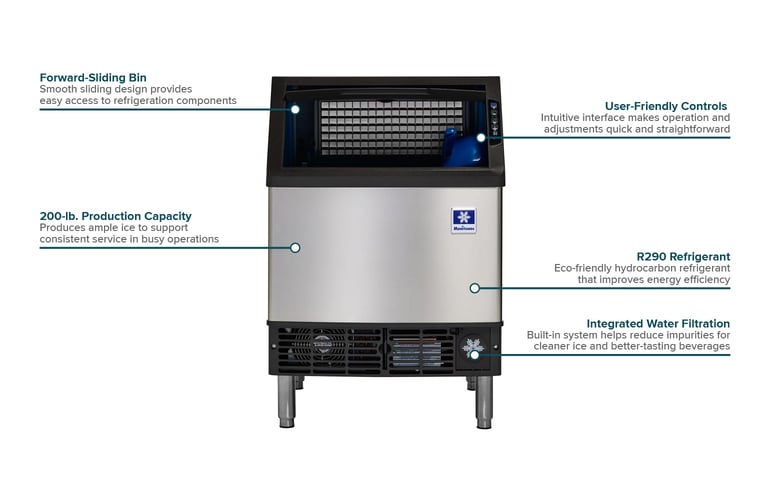

• Part of the NEO series
• Undercounter configuration
• Produces full cube (dice-style) ice
• Up to 200 lbs. ice production per 24 hours
• 175 lbs. AHRI-certified production at 90 degrees/70 degrees F
• Touchpad control panel with on/off button
• Delay mode
• Clean cycle button
• Full bin indicator light
• Filter change indicator
• Integrated 5-micron water filtration system
• Gravity drain connection
• Includes 6-in. adjustable legs

Ice Bin

• 90-lb. storage capacity
• Insulated interior
• Removable
• Forward-sliding access
• Lift-up front bin door

Refrigeration System

• Air-cooled condenser
• Self-contained
• R290 hydrocarbon refrigerant
• Ambient operating range: 50-100 degrees F
• Water temperature range: 45-90 degrees F

Dimensions & Utilities

• 26 in. W x 281⁄2 in. D x 381⁄2 in. H
• 6 A, 1/2 HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug

Product Features

*Free shipping on Manitowoc Ice UDP0190A within the 48 contiguous states.

From The Manufacturer

NEO® Undercounter Ice Maker, R290 Refrigerant, integrated on-board water filtration included, dice size ice, air-cooled, self-contained, 26"W x 28-1/2"D x 38-1/2"H, production capacity up to 200 lbs./24 hours at 70/50 (175 lbs. AHRI certified at 90/70), 90 lbs. storage capacity, integrated 5 micron water filer, touchpad controls, clean button, filter replacement, full bin, and service indictors, forward sliding storage bin for access to refrigeration components, 6"adjustable legs, Energy Star, NSF, CE, cULus, AHRI

*Image may not depict product color, inclusions or accessories.

Additional Product Information

This product includes a cord and plug

Product made with Hydrocarbon Refrigerants

This unit produces full-cube ice ideal for soft drinks, bagging, bulk cooling, and filling coolers.

Also called self-contained, this compressor type uses air for cooling

This unit has a removable air filter for easy maintenance

This product comes with a NEMA 5-15P plug

This product comes with integrated water filtration
