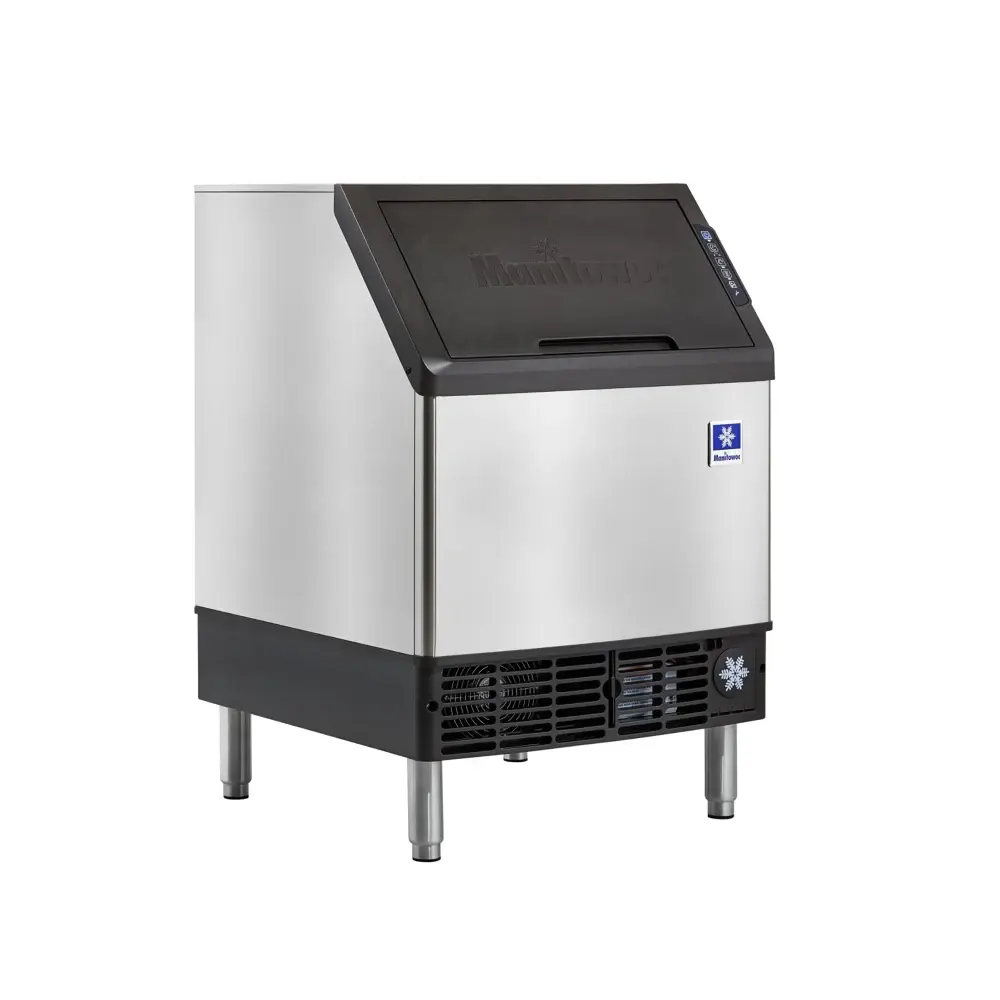

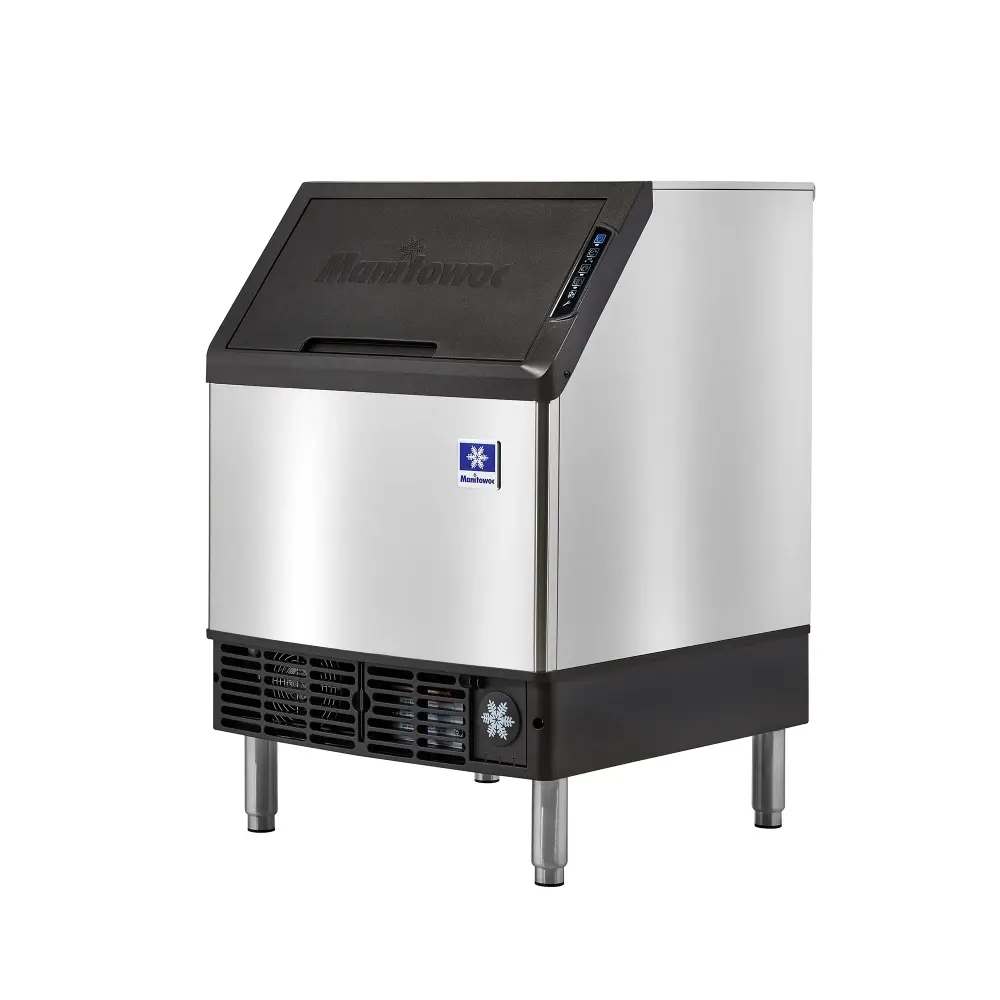

Manitowoc Ice UDP0140A 26"W NEO® Full Cube Undercounter Ice Machine - 140 lbs/day, Air Cooled, Integrated Water Filter

Ideal for compact commercial spaces, the Manitowoc Ice UDP0140A NEO® full-cube undercounter ice machine measures 26 inches wide and includes a front-breathing layout for zero-clearance installation. This model produces up to 140 pounds of dice-style ice every 24 hours and stores 90 pounds in an insulated, removable bin. This unit features a 5-micron onboard water filter that improves ice clarity and helps prevent internal buildup over time. For quick access to key components, this unit features a forward-sliding bin.

The Manitowoc Ice UDP0140A NEO full cube undercounter ice machine is equipped with a self-contained, air-cooled refrigeration system and a 1/2-horsepower compressor. A user-friendly touchpad provides access to core functions and includes alert lights for cleaning, service, filter replacement, and bin status. Designed for efficiency, it includes 6-inch adjustable legs to aid installation on uneven floors.

Product Details

• NEO series
• Undercounter configuration
• Produces full cube (dice-style) ice
• Up to 140 lbs. ice production per 24 hours
• 110 lbs. AHRI-certified production at 90 degrees/70 degrees F

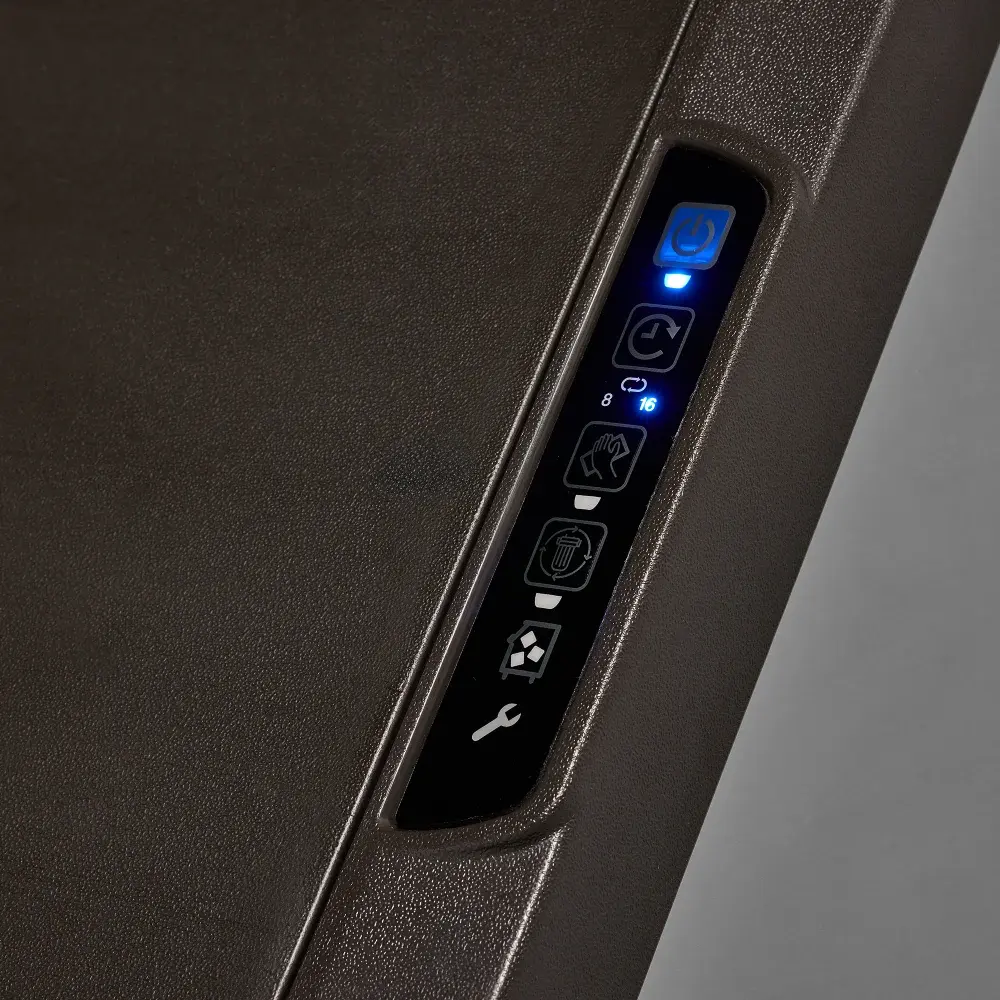

• Touchpad control panel with on/off button
• Delay mode
• Clean cycle button
• Full bin indicator light
• Integrated water filtration
• Filter change indicator
• Integrated 5-micron water filtration system
• Gravity drain connection
• Includes 6-in. adjustable legs

Ice Bin

• 90-lb. storage capacity
• Insulated interior
• Removable

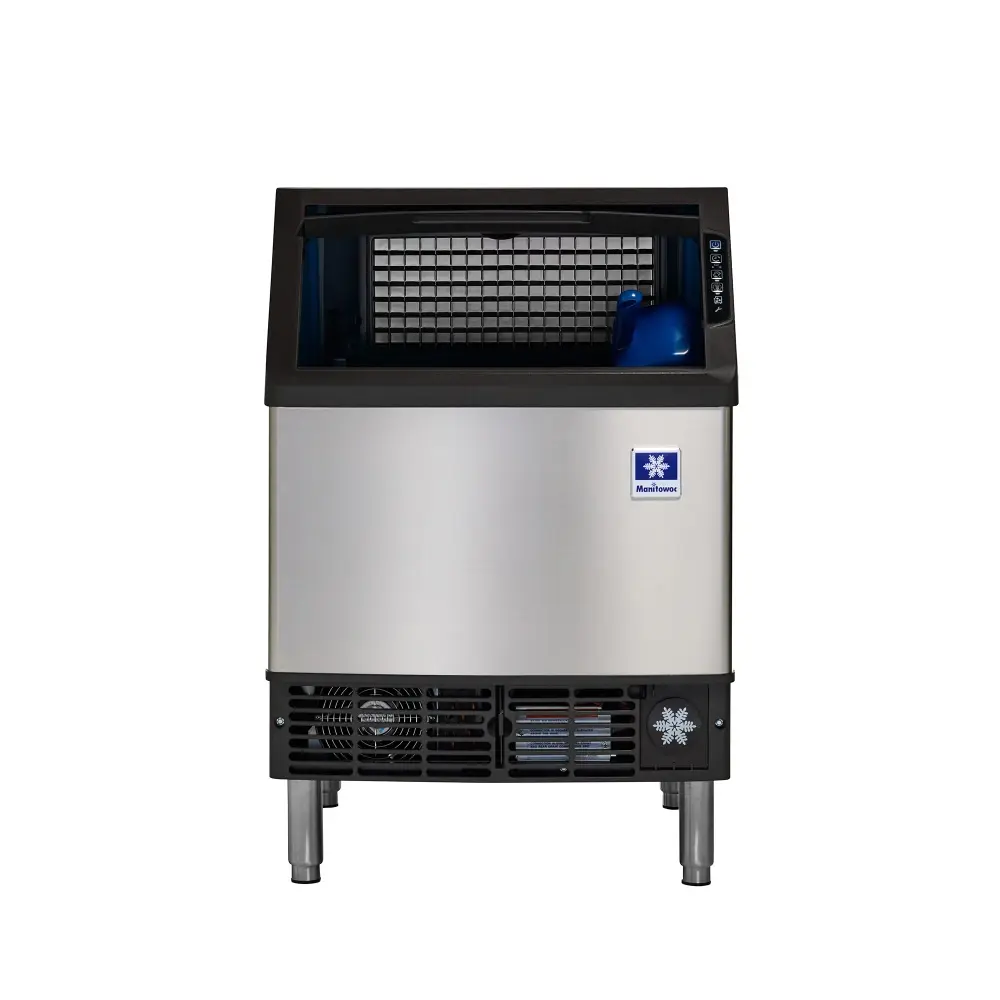

• Forward-sliding access
• Lift-up front door

Refrigeration System

• Air-cooled condenser
• Self-contained
• R290 hydrocarbon refrigerant
• Ambient operating range: 50-100 degrees F
• Water temperature range: 45-90 degrees F

Dimensions & Utilities

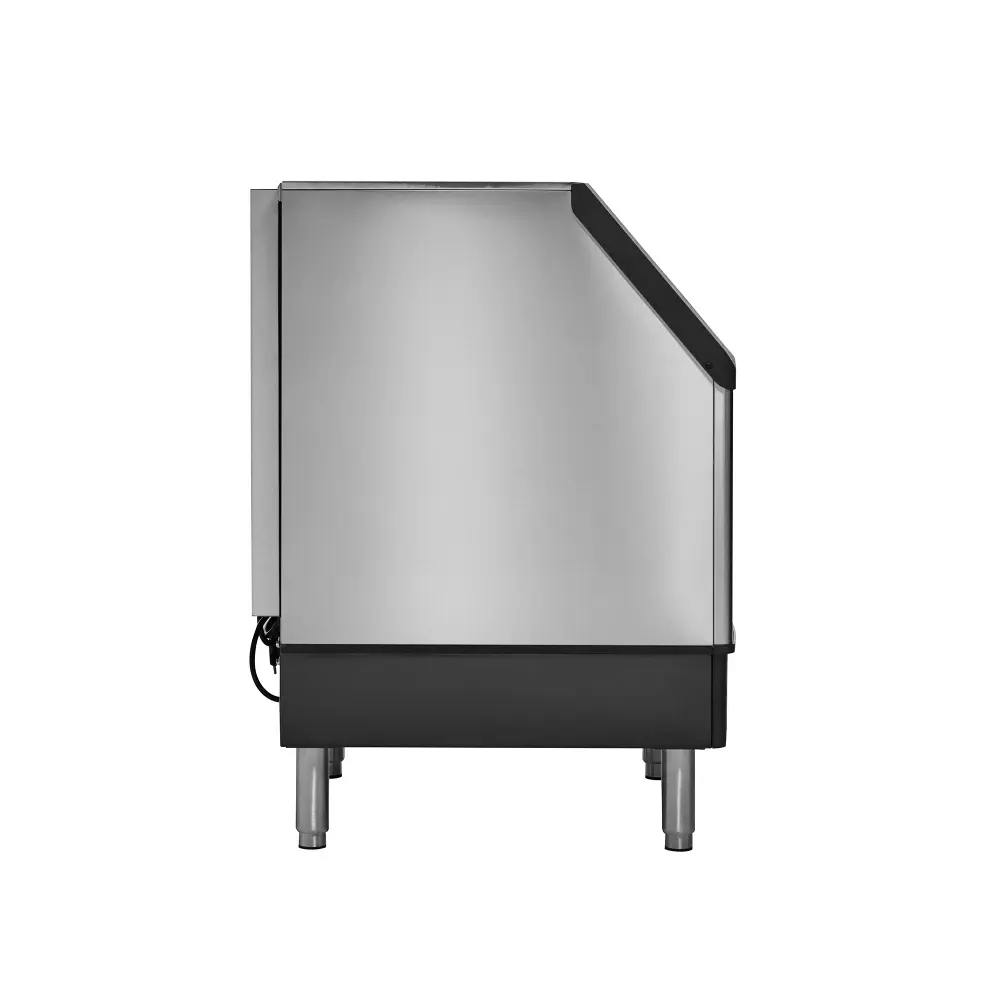

• 26 in. W x 281⁄2 in. D x 381⁄2 in. H
• 5 A, 1/2 HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug

Product Features

*Free shipping on Manitowoc Ice UDP0140A within the 48 contiguous states.

From The Manufacturer

NEO® Undercounter Ice Maker, R290 Refrigerant, integrated on-board water filtration included, dice size ice, air-cooled, self-contained, 26"W x 28-1/2"D x 38-1/2"H, production capacity up to 140 lbs./24 hours at 70/50 (110 lbs. AHRI certified at 90/70), 90 lbs. storage capacity, integrated 5 micron water filer, touchpad controls, clean button, filter replacement, full bin, and service indictors, forward sliding storage bin for access to refrigeration components, 6"adjustable legs, Energy Star, NSF, CE, cULus, AHRI

*Image may not depict product color, inclusions or accessories.

Additional Product Information

This product includes a cord and plug

Product made with Hydrocarbon Refrigerants

This unit produces full-cube ice ideal for soft drinks, bagging, bulk cooling, and filling coolers.

Also called self-contained, this compressor type uses air for cooling

This unit has a removable air filter for easy maintenance

This product comes with a NEMA 5-15P plug

This product comes with integrated water filtration
