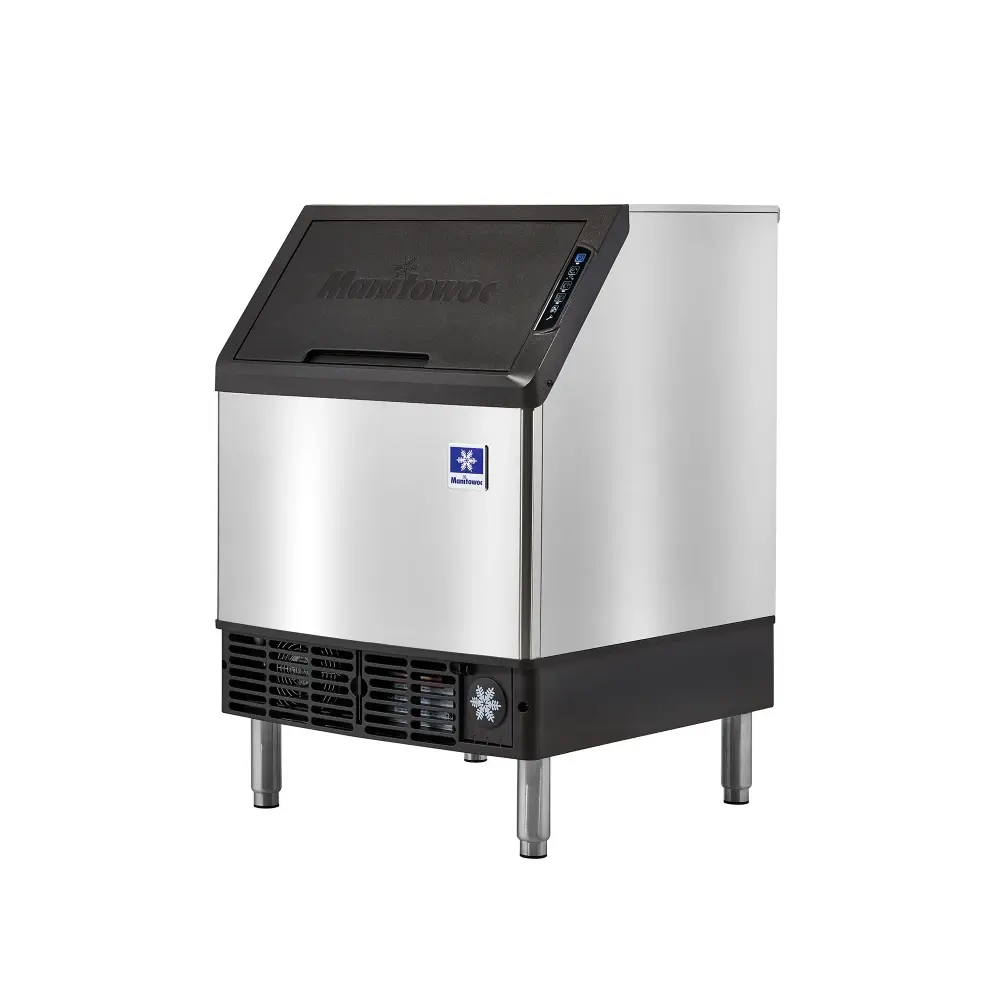

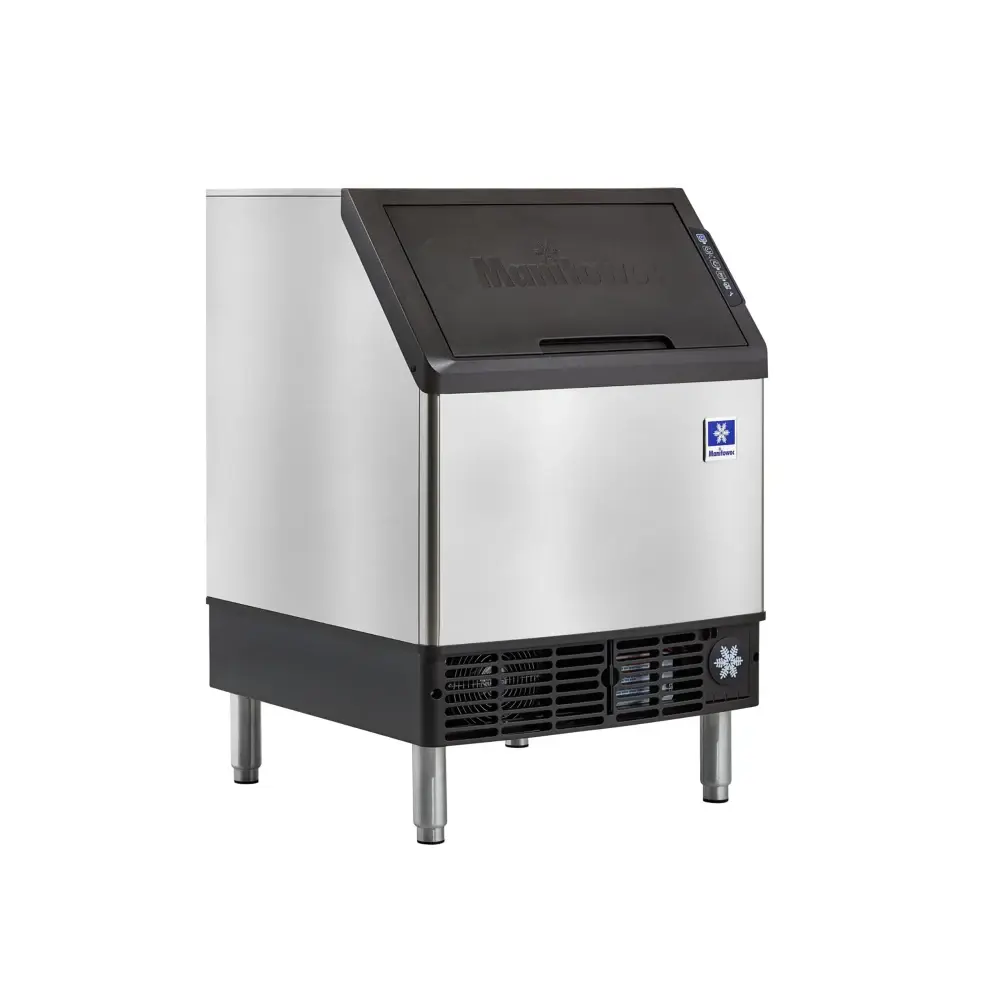

Manitowoc Ice UYP0140A 26"W NEO® Half Cube Undercounter Ice Machine - 150 lbs/day, Air Cooled, Integrated Water Filter

Front-ventilated airflow allows the Manitowoc Ice UYP0140A NEO® undercounter ice machine to sit flush against other equipment, drawing cool air through the grill and pushing heat forward. This design protects critical components and saves space behind crowded bars, while energy-saving R290 refrigerant helps reduce operating costs. An integrated 5-micron water filter helps ensure good-tasting, clean ice.

An angled lift-up door gives bartenders a clear view of half-dice cubes, and the Manitowoc Ice UYP0140A NEO undercounter ice machine positions the opening at a comfortable height to prevent awkward scooping. The wide bin stores 90 pounds, and its forward-sliding base moves out for service, cutting downtime and preserving beverage flow during peak rushes.

Product Details

• NEO series
• 150-lb. daily production capacity
• 90-lb. storage bin capacity
• Undercounter configuration
• Half-dice cube ice type
• Forward-sliding insulated storage
• Front ventilation
• Integrated 5-micron onboard water filtration system

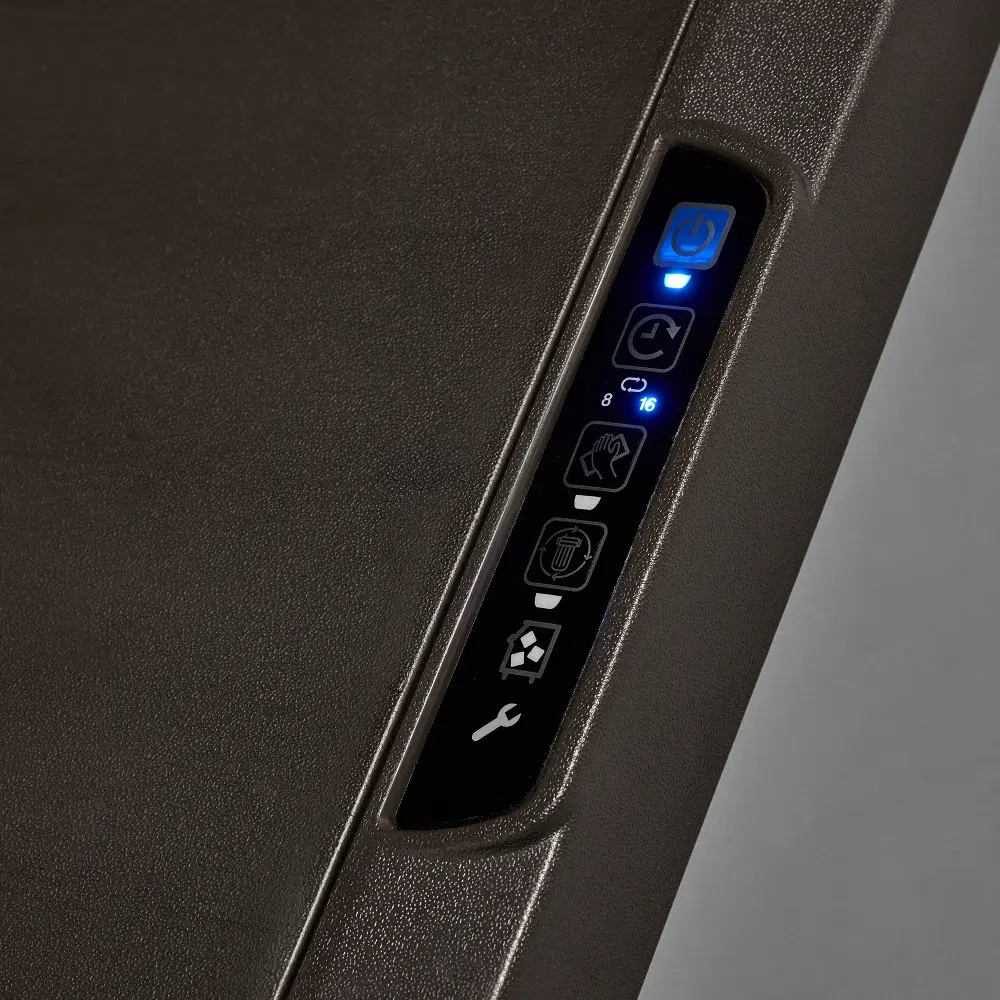

• Touchpad controls
• 6-in. adjustable leveling legs

Refrigeration System

• R290 hydrocarbon refrigerant
• Air-cooled, self-contained condenser
• Average heat rejection: 2,500 BTU/hr
• Peak heat rejection: 2,900 BTU/hr
• Ambient temperature range: 50-100 degrees F
• Water temperature range: 45-90 degrees F
• Water inlet pressure range: 20-80 psi
• Condenser inlet pressure: 20-150 psi

Dimensions & Utilities

• 26 in. W x 281⁄2 in. D x 381⁄2 in. H
• 5 A
• 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug

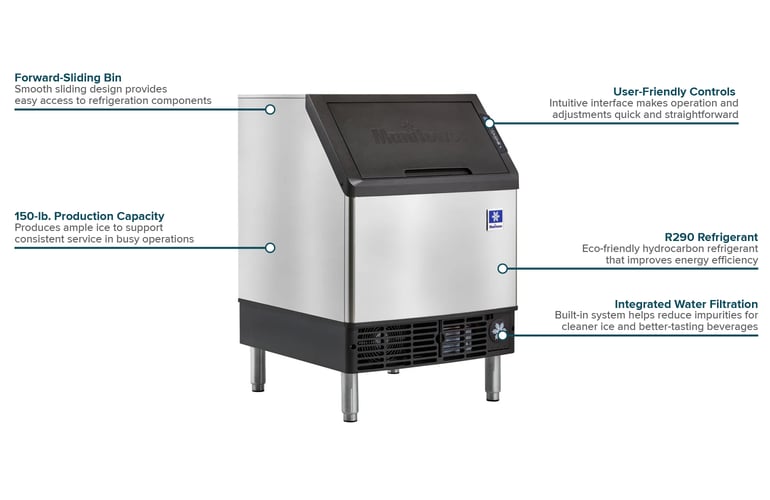

Product Features

*Free shipping on Manitowoc Ice UYP0140A within the 48 contiguous states.

From The Manufacturer

NEO® Undercounter Ice Maker, R290 Refrigerant, integrated on-board water filtration included, half-dice size ice, air-cooled, self-contained, 26"W x 28-1/2"D x 38-1/2"H, production capacity up to 150 lbs./24 hours at 70/50 (114 lbs. AHRI certified at 90/70), 90 lbs. storage capacity, integrated 5 micron water filer, touchpad controls, clean button, filter replacement, full bin, and service indictors, forward sliding storage bin for access to refrigeration components, 6"adjustable legs, Energy Star, NSF, CE, cULus, AHRI

*Image may not depict product color, inclusions or accessories.

Additional Product Information

This product includes a cord and plug

Product made with Hydrocarbon Refrigerants

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

Also called self-contained, this compressor type uses air for cooling

This unit has a removable air filter for easy maintenance

This product comes with a NEMA 5-15P plug

This product comes with integrated water filtration

This product includes a cord and plug

Product made with Hydrocarbon Refrigerants

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

Also called self-contained, this compressor type uses air for cooling

This unit has a removable air filter for easy maintenance

This product comes with a NEMA 5-15P plug

This product comes with integrated water filtration
