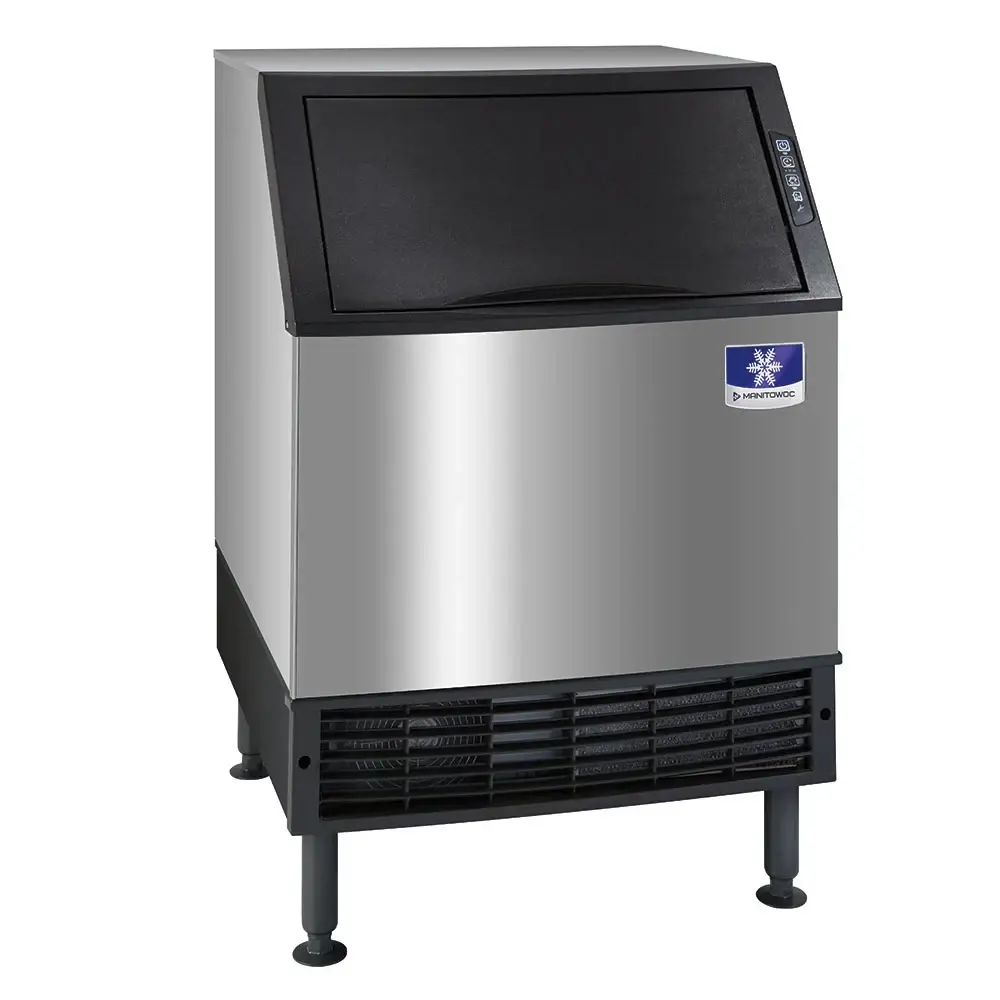

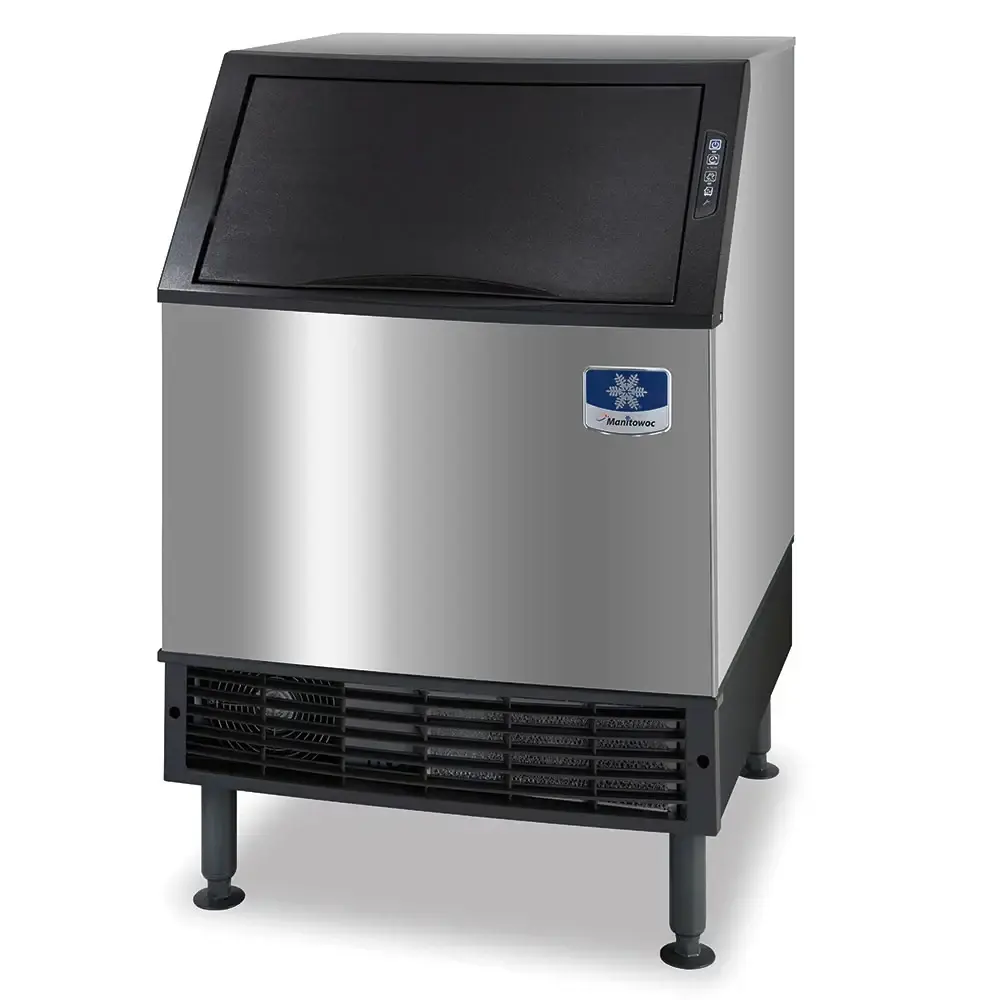

Manitowoc Ice UYF0190A 26"W Half Cube NEO Undercounter Ice Machine - 193 lbs/day, Air Cooled

If the ambient air is 70 degrees Fahrenheit and the incoming water is 50 degrees Fahrenheit, the Manitowoc Ice UYF0190A NEO® undercounter ice machine makes 193 pounds of ice in 24 hours, though at higher temperatures, it will produce less. With the half-dice ice, small cubes that pack together tightly, operators can displace a lot of water so glasses require less beverage to fill. However, this kind of ice also melts quicker than larger, full-size options.

Throughout the day, ice collects in the built-in, 90-pound-capcity storage bin, which helps keep ice cold and ready for use during busy hours. For slow hours, operators can either let ice pile up in the bin, or use the delay function to pause ice production, reducing water usage. When the Manitowoc Ice UYF0190A undercounter ice maker needs cleaning or servicing, components can be accessed through the storage bin, which slides off the front. Several parts contain the antimicrobial agent AlphaSan® to slow bacterial growth, while other parts can be removed for thorough cleaning.

Product Details

• Part of the NEO ice maker series
• 193-lb. maximum daily ice production
• 140-lb. AHRI-certified daily ice production
• Makes half-dice ice cubes
• Half dice ice size: 3⁄8 in. x 7⁄8 in. x 11⁄8 in.
• Produces more ice than previous models while using less water and energy
• Delay function pauses operation during slow or closed periods
• 90-lb. storage bin with full-bin indicator

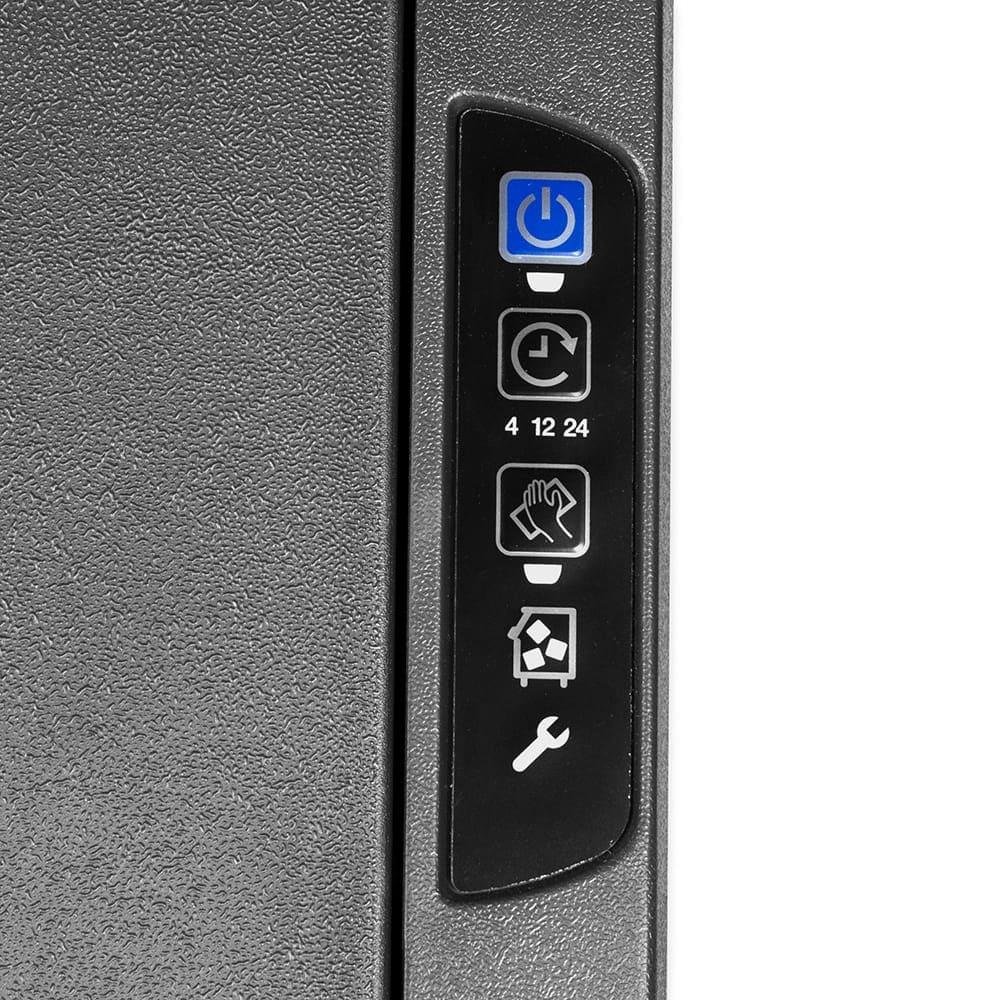

• Service indicator warns operators of maintenance needs

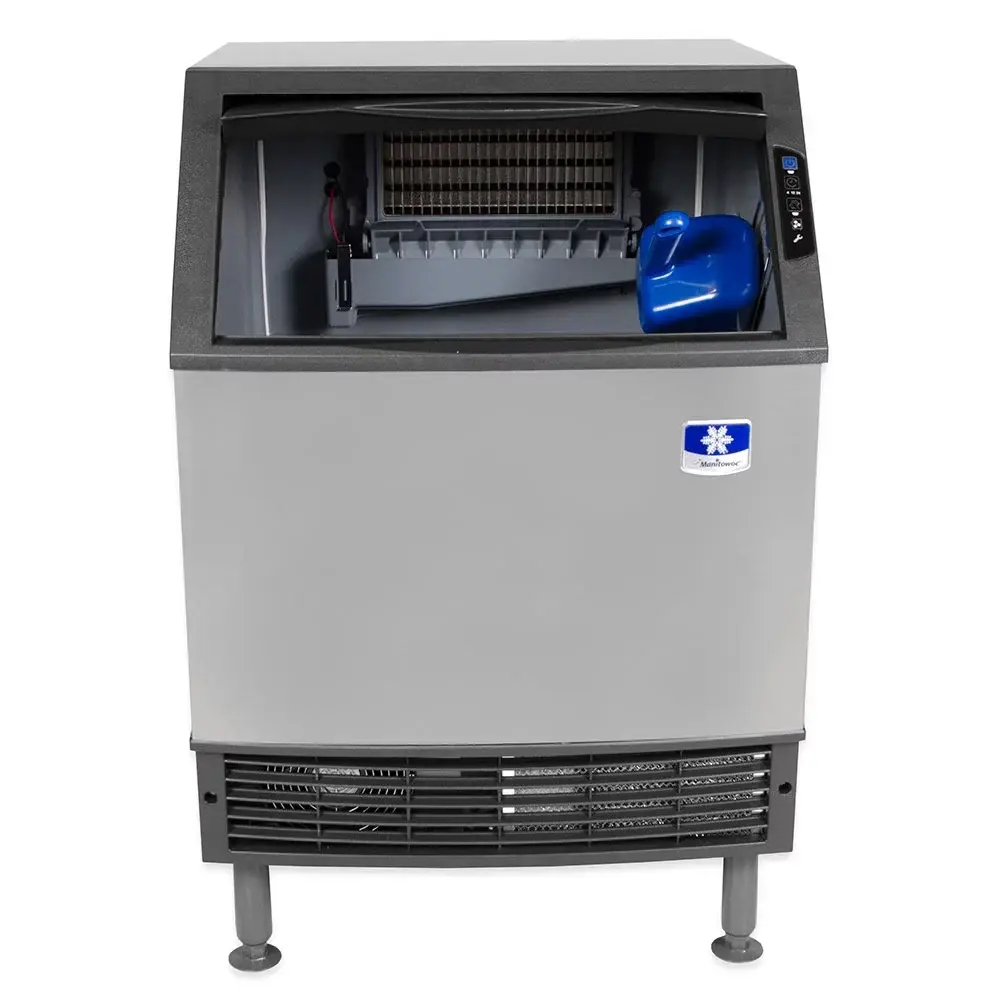

• Refrigeration components are front accessible behind the sliding bin
• Sealed food zone’s removable water trough, damper door, and distribution tube facilitate cleaning
• Integrated AlphaSan agent slows bacteria growth in key components
• 6-in. adjustable legs with flanged feet
• Replaces the UY-0190A
• 2,150 average BTU; 2,600 peak BTU

Product Features

Ideal Operating Conditions

• Ambient air temperature: 40-110 degrees F
• Incoming water temperature: 45-90 degrees F
• Incoming water pressure: 20-80 PSI

Dimensions & Utilities

• 26 in. W x 28.5 in. D x 38.5 in. H
• 6 A, 8.3 kW, 0.42 HP
• 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

*Free shipping on Manitowoc Ice UYF0190A within the 48 contiguous states.

From The Manufacturer

NEO® Undercounter Ice Maker, cube-style, air-cooled, self contained, 26"W x 28"D x 38-1/2"H, production capacity up to 193 lb/24 hours at 70°/50° (140 lb AHRI certified at 90°70°), 90 lb ice storage capacity, electronic controls, half dice size cubes, 6" adjustable legs with flanged feet (painted gray), 0.42 HP, NSF, cULus, CE, 115v/60/1ph

*Image may not depict product color, inclusions or accessories.

Additional Product Information

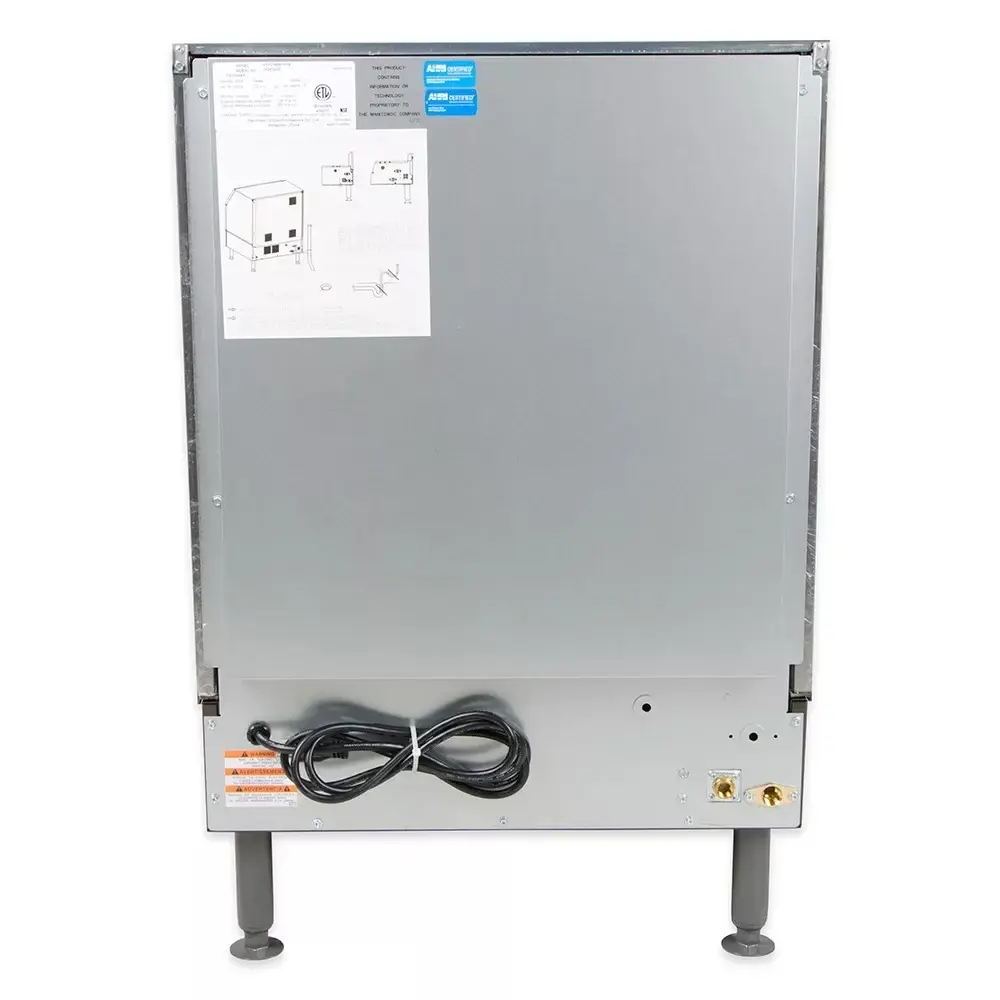

This product includes a cord and plug

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

Also called self-contained, this compressor type uses air for cooling

This unit has a removable air filter for easy maintenance

This item is fabricated with materials and/or finishes that inhibit the growth of microorganisms such as bacteria, fungi, viruses, and parasites.

This product comes with a NEMA 5-15P plug
