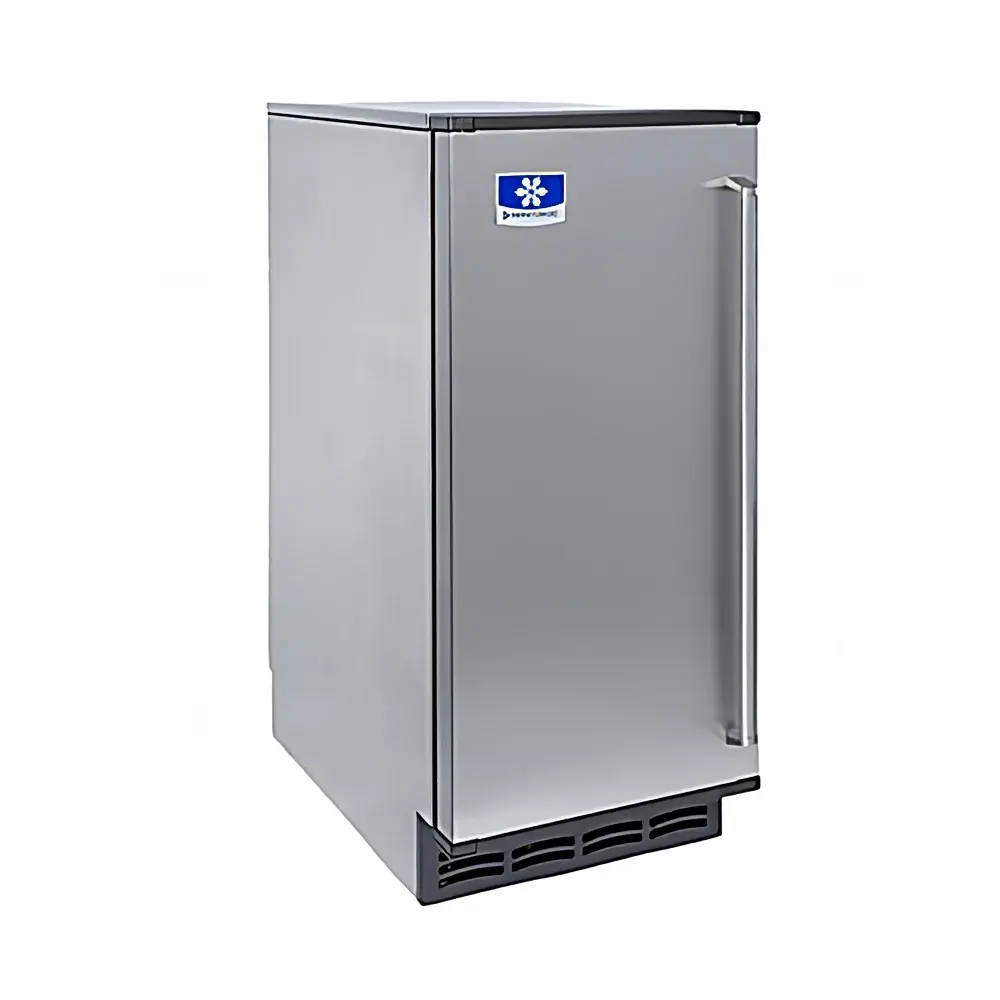

Manitowoc Ice USE0050A CrystalCraft™ 14 3/4"W Large Cube Undercounter Ice Machine - 41 lbs/day, Air Cooled

The Manitowoc Ice USE0050A CrystalCraft™ Premier undercounter ice machine produces clear, individually formed 11/2-inch square ice cubes that are three times larger than the standard CrystalCraft ice cubes. These cubes enhance cocktail and soft drink presentation and melt slowly to preserve drink flavor. When incoming water is 50 degrees Fahrenheit and air is 70 degrees Fahrenheit, this unit can produce as much as 41 pounds of ice in 24 hours. For low-volume establishments, its storage bin features LED lights and a large opening that accommodates 25 pounds of ice. This unit is built with CFC-free foamed-in-place insulation to retain temperatures. This air-cooled machine uses fans to move air across its condensers to cool these components, and because it's self-contained, it's simpler to install than remote options. To eliminate side and vent clearances, air flows in through the front's right side and out its left side.

For streamlined operation, the Manitowoc Ice USE0050A compact ice machine's front-access control panel includes an automatic mode that keeps the bin full. Its delay-start option can be initiated during idle periods, while its cleaning and sanitizing function minimizes manual tasks. To ensure crisp, transparent ice, this machine includes an integrated water filtration system with a scale inhibitor and an auto-bypass design, simplifying changeouts. When the filter requires replacement, the panel's warning light shines. Compatible with standalone use or installation in a 15-inch-wide cabinet, this unit measures 143/4 inches wide by 223/4 inches deep by 331/2 inches high and features a stainless steel top and sides for rust and corrosion resistance. To prevent lateral movement during operation or maintenance, it's fitted with levelers that can be raised by 1 inch.

Ice Maker Details

• Self-contained, air-cooled unit
• 41-lb. maximum daily ice production
• 31-lb. AHRI-certified daily ice production
• Produces full-cube ice
• Full-cube ice dimensions: 11/2 in. x 11/2 in. x 11/2 in.
• R134 refrigerant

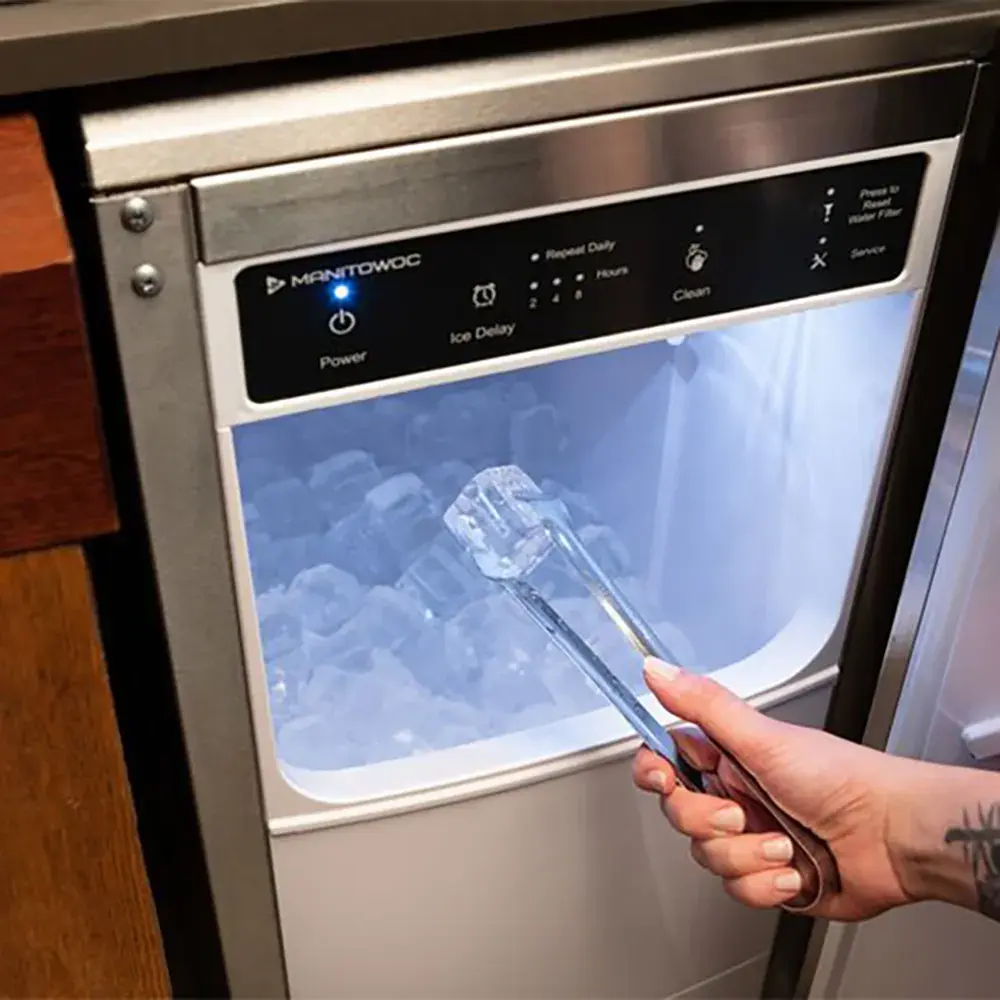

• Front-access control panel with automatic ice-making mode, cleaning and sanitizing function, delay-start option, and filter-replacement warning light
• Integrated water filter system with depth filtration and scale inhibitor
• Auto-bypass simplifies water filter changeout
• Rugged stainless steel top and sides
• Operating ambient air range: 50-110 degrees F
• Operating incoming water temperature range: 35-90 degrees F
• Operating incoming water inlet pressure range: 20-80 PSI
• 1,145 BTU average
• 2,300 BTU peak

Ice Bin Details

• Part of the Crystal Craft™ collection
• Storage capacity: 25 lbs. of full-cube ice
• LED lighting
• Large opening
• Foamed-in-place CFC-free insulation
• Levelers adjustable from 0-1 in.

Dimensions & Utilities

• 143/4 in. W x 223/4 in. D x 331/2 in. H
• 4.1 A, 1⁄6 HP
• 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
• 3⁄4-in. bin drain
• 1⁄4-in. O.D. copper tube water inlet

Product Features

*Free shipping on Manitowoc Ice USE0050A within the 48 contiguous states.

From The Manufacturer

CrystalCraft™ Premier Ice Maker, cube-style, air-cooled, self-contained condenser, 14.75"W x 22-4/5"D x 3-1/2"H, production capacity up to 45 lb/24 hours at 70°/50° (35 lb AHRI certified at 90°/70°), stainless steel cabinet, 1.5" x 1.5" crystal clear square cube, R134 refrigerant, ice storage capacity 25 lbs, AR-2800 water filter integrated into unit, 6'/1.8 M power cord included, with NEMA plug, not compatible with iAuCS or Luminice, use metal save 00000084 descaler

*Image may not depict product color, inclusions or accessories.

Additional Product Information

This product includes a cord and plug

This unit's extra-large cubes are ideal in high-end liquors for slow melting and elevated presentation.

Also called self-contained, this compressor type uses air for cooling

This product comes with a NEMA 5-15P plug
