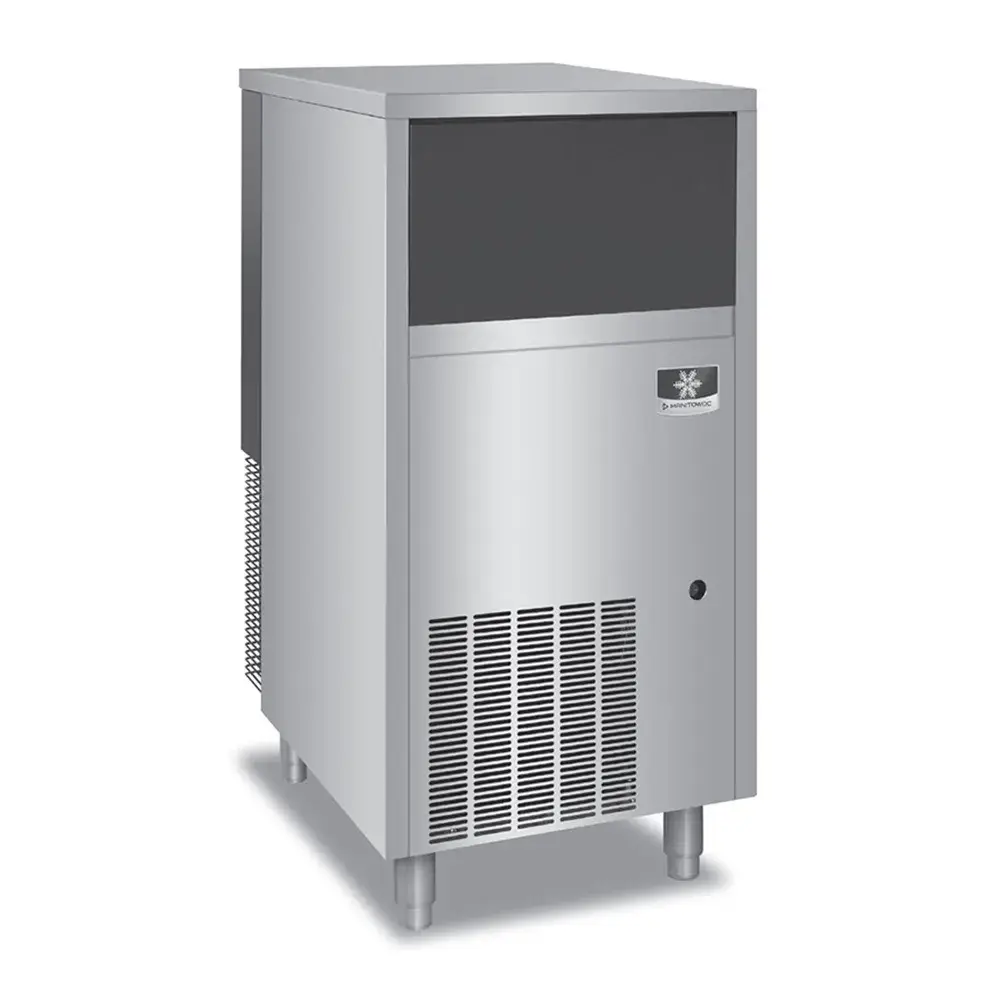

Manitowoc Ice UFP0200A 19" Flake Undercounter Ice Machine - 272 lbs/day, Air Cooled

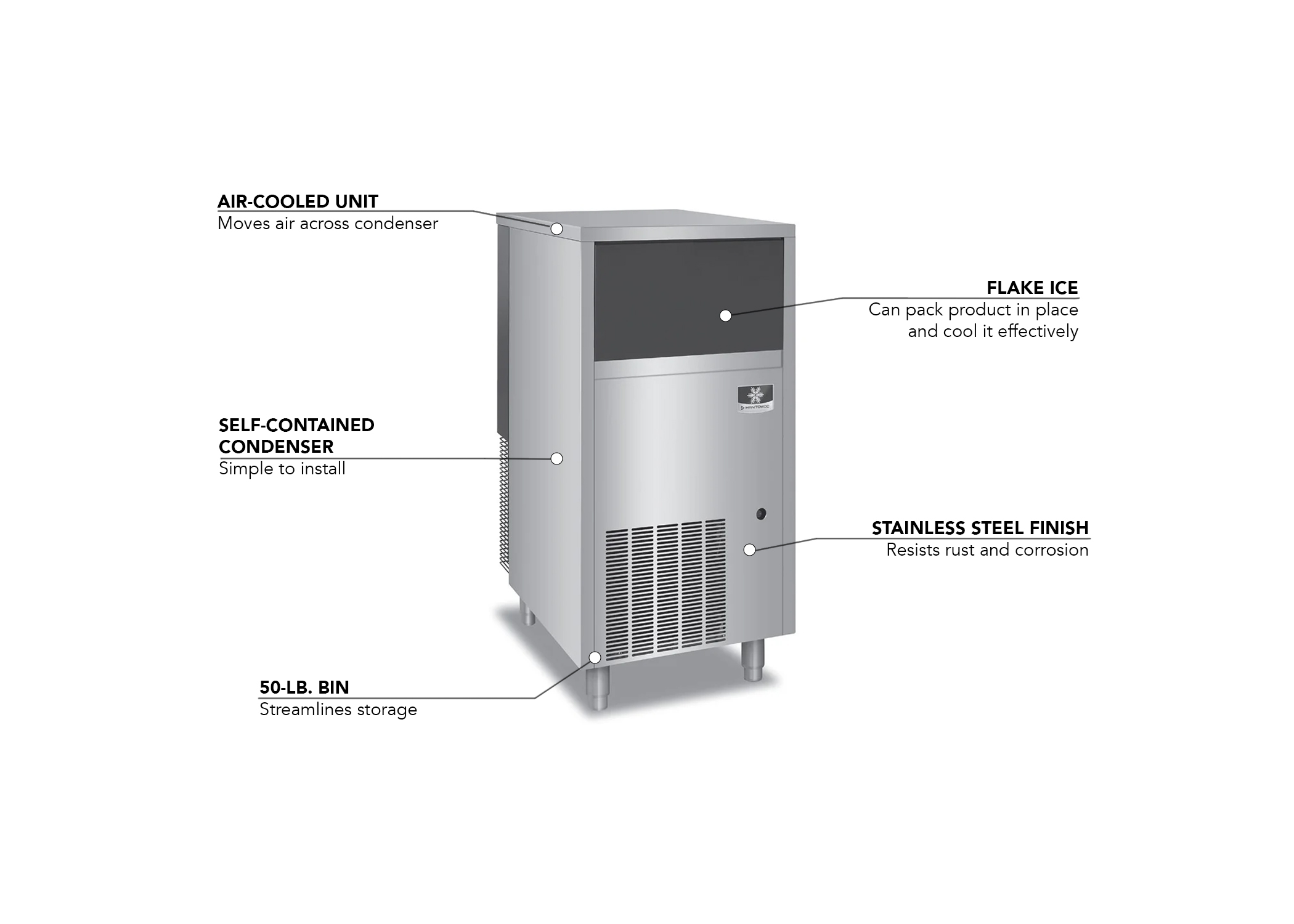

When ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit, the Manitowoc Ice UFP0200A ice maker with bin produces 272 pounds of flaked ice in 24 hours. Flaked ice's irregular shape can be packed around fish and produce, securing it in place while cooling it. To accommodate large volumes of ice, its bearings have a high-load design that requires little maintenance to prevent operational lag. Ice can be stored in the 50-pound ice bin located beneath the unit. For direct access, its door can slide open.

Because it's an air-cooled unit with a self-contained condenser, the Manitowoc Ice UFP0200A ice machine is simple to install. This machine measures 19.69 inches wide by 25.98 inches deep by 37.50 inches high—compact enough to save space in cramped areas. The bin's legs can be adjusted between 4.5 and 6 inches to account for irregular flooring and reduce wobbling. Finished with stainless steel, this unit resists rust and corrosion and preserves its original look over time to provide a long service life.

Ice Maker Head Details

• Daily ice production: 272 lbs.
• AHRI-certified ice production: 201 lbs.
• Produces flake ice
• Air cooled
• Self-contained condenser
• R290A hydrocarbon refrigerant
• High-load, low-maintenance stainless steel bearings
• Stainless steel finish
• Undercounter
• Operating ambient temperature range: 50-110 degrees F
• Operating water temperature range: 37-90 degrees F
• Ice maker water pressure: 14-80 PSI
• Minimum installation clearance for sides: 2 in.
• Minimum installation clearance for front and back: 8 in.
• 3,038-BTU heat transfer averaged hourly

Ice Bin Details

• 50-lb. capacity
• AHRI-certified interior capacity: 1.7 cu. ft.
• Legs adjust from 4.5-6 in. H
• Accessible, slide-up door
• Stainless steel finish
• Ice scoop included

Dimensions & Utilities

• 19.69 in. W x 25.98 in. D x 37.50 in. H
• 5.5 A, 1⁄4 HP
• 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
• 3⁄8-in. NPT ice-making water inlet
• 1⁄2-in. NPT ice-making water outlet

Product Features

*Free shipping on Manitowoc Ice UFP0200A within the 48 contiguous states.

From The Manufacturer

Ice Maker with Bin, flake-style, air-cooled, self-contained condenser, 19-3/16"W x 25-63/64"D x 37-1/2"H, production capacity up to 272 lb/24 hours at 70°/50° (198 lb AHRI certified at 90°/70°), 50 lb bin storage capacity, high-load stainless steel bearings, stainless steel finish, 6" bin legs, 1/4 HP, ETL, cETLus, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Additional Product Information

This product includes a cord and plug

Product made with Hydrocarbon Refrigerants

This unit produces flake ice perfect for salad bars, medical facilities, fresh seafood & produce displays, and blended beverages.

Also called self-contained, this compressor type uses air for cooling

This product comes with a NEMA 5-15P plug
