Manitowoc Ice UDP0240A 26"W NEO® Full Cube Undercounter Ice Machine - 240 lbs/day, Air Cooled, Integrated Water Filter

Built with a front-venting layout and compact body, the Manitowoc Ice UDP0240A NEO® full cube undercounter ice machine fits below standard countertops while producing up to 240 pounds of dice-style ice every 24 hours. This 26-inch-wide model stores 90 pounds of ice in its insulated bin and includes a forward-sliding design to provide access to internal components. This unit features a lift-up front door and an onboard 5-micron water filtration system to enhance ice clarity and support long-term performance.

The Manitowoc Ice UDP0240A NEO full cube undercounter ice machine uses a self-contained, air-cooled refrigeration system powered by a 1/2-horsepower compressor. Its front-breathing design supports installation alongside or beneath other equipment. A touchpad control panel includes indicator lights for filter replacement, full bin, cleaning, and service needs. The unit connects to a gravity drain.

Product Details

• From the NEO series
• Undercounter configuration
• Produces full cube (dice-style) ice
• Up to 240 lbs. ice production per 24 hours
• 197 lbs. AHRI-certified production at 90 degrees/70 degrees F

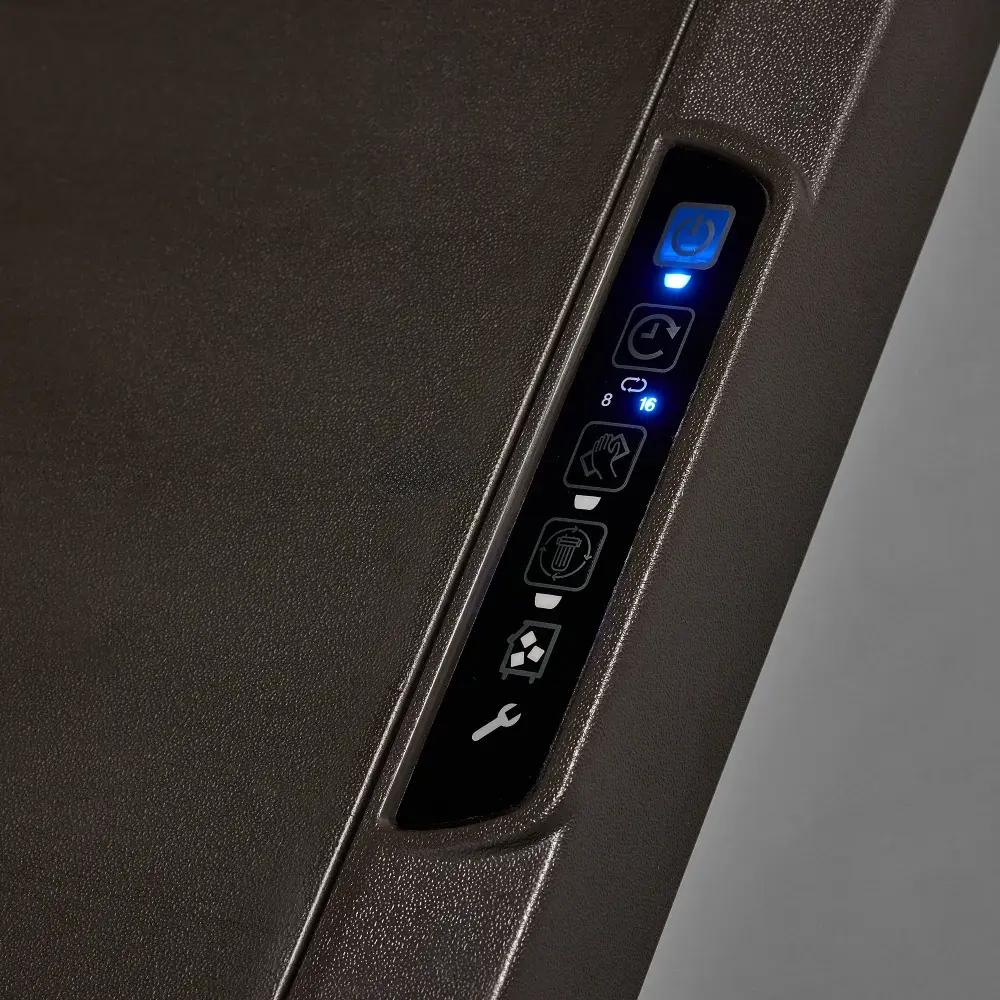

• Touchpad control panel with on/off button
• Delay mode
• Clean cycle button
• Full bin indicator light
• Filter change indicator
• Integrated 5-micron water filtration system
• Gravity drain connection
• Includes 6-in. adjustable legs

Ice Bin

• 90-lb. storage capacity
• Insulated interior
• Removable bin
• Forward-sliding access
• Lift-up front bin door

Refrigeration System

• Air-cooled condenser
• Self-contained
• R290 hydrocarbon refrigerant
• Ambient operating range: 50-100 degrees F
• Water temperature range: 45-90 degrees F

Dimensions & Utilities

• 26 in. W x 281⁄2 in. D x 381⁄2 in. H
• 7 A, 1/2 HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug

Product Features

*Free shipping on Manitowoc Ice UDP0240A within the 48 contiguous states.

From The Manufacturer

NEO® Undercounter Ice Maker, R290 Refrigerant, integrated on-board water filtration included, dice size ice, air-cooled, self-contained, 26"W x 28-1/2"D x 38-1/2"H, production capacity up to 240 lbs./24 hours at 70/50 (197 lbs. AHRI certified at 90/70), 90 lbs. storage capacity, integrated 5 micron water filer, touchpad controls, clean button, filter replacement, full bin, and service indictors, forward sliding storage bin for access to refrigeration components, 6"adjustable legs, Energy Star, NSF, CE, cULus, AHRI

*Image may not depict product color, inclusions or accessories.

Additional Product Information

This product includes a cord and plug

Product made with Hydrocarbon Refrigerants

This unit produces full-cube ice ideal for soft drinks, bagging, bulk cooling, and filling coolers.

Also called self-contained, this compressor type uses air for cooling

This unit has a removable air filter for easy maintenance

This product comes with a NEMA 5-15P plug

This product comes with integrated water filtration
