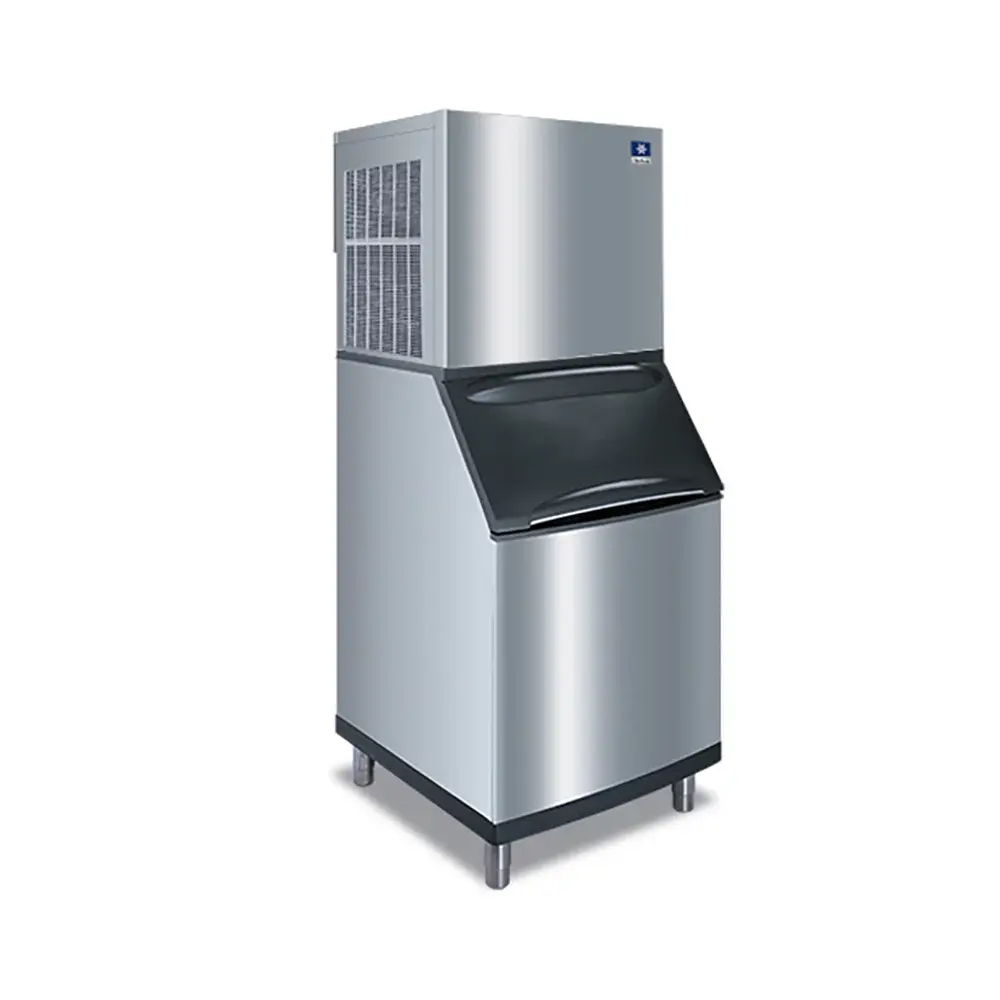

Manitowoc Ice RNF1100A/D970/K00470 1078 lb Nugget Ice Machine w/ Bin - 882 lb Storage, Air Cooled, 208-230v

The Manitowoc Ice RNF-1100A-261 ice machine uses R404A refrigerant to remove heat and create ice. In one day, this unit can produce 1,078 pounds of nugget ice, which is chewable and takes on the flavor of its beverage. Its motor is cooled with air, and the self-contained refrigeration system has all the components built together. Constructed of stainless steel, this unit is scratch and dent resistant.

The unit's D-970 bin connects to the ice machine head with a K-00470 adapter kit. It has a storage capacity of 882 pounds. Cold air is retained since the door is foam insulated, and a polyurethane liner maintains sanitation. A knuckle and thumb guard on the scoop protects against contamination, and the scoop holds 5.3 pounds of ice. Built-in side grips on the door enable employees to easily lift the door open with a single hand, and a latch keeps the door open while they scoop.

Ice Maker Details

• Produces nugget ice, one of the most popular types
• 1,078-lb. daily ice production capacity
• 825-lb. AHRI-certified ice production capacity
• Air-cooled motor
• Self-contained condenser
• Stainless steel exterior is durable and strong
• K-00470 adapter kit attaches the head to the bin
• Uses R404A refrigerant
• 7,500 average BTU; 10,900 peak BTU
• Required ambient air temperature: 50-110 degrees F
• Required incoming water temperature: 45-90 degrees F
• Required incoming water pressure: 20-70 PSI

Product Features

Bin Details

• 882-lb. storage capacity
• 29.7-cu.-ft. interior space
• Built-in knuckle and thumb guard on the scoop reduce the risk of contamination
• 5.3-lb. ice scoop capacity
• Built-in side grips simplify opening the door
• Foam-insulated door retains cold air
• Door has cammed latch, keeping it open for scooping
• Duratech coating over the stainless steel exterior resists scratches
• Blue polyurethane liner

Dimensions & Utilities

• Ice Maker
• 30 in. W x 23.62 in. D x 27.4 in. H
• 14.2 A, 1.5 HP, 5.41 kW
• 208-230 V/60 Hz/1 ph
• Ice Bin
• 48 in. W x 34 in. D x 50 in. H

*Free shipping on Manitowoc Ice RNF1100A/D970/K00470 within the 48 contiguous states.

From The Manufacturer

Ice Maker, nugget style, air-cooled, self-contained condenser, 30"W x 23-5/8"D x 27-3/8"H, production capacity up to 1078 lb/24 hours at 70°/50° (825 lb AHRI certified at 90°/70°), bite size nugget, high-load stainless steel bearings, stainless steel exterior, R404A, 1-1/2 HP, NSF, cULus

Ice Bin, 48"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 882 lbs. application capacity, AHRI certified 29.7 cu. ft., for top-mounted ice maker, Duratek exterior, NSF; (K00470) Bin Adapter, for 30" Indigo, Indigo NXT, RFF, RNF, ice machine on a 48" B or D-970 bin

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces nugget ice perfect for soft drinks, blended drinks, filling coolers, and dispensing.

Also called self-contained, this compressor type uses air for cooling
