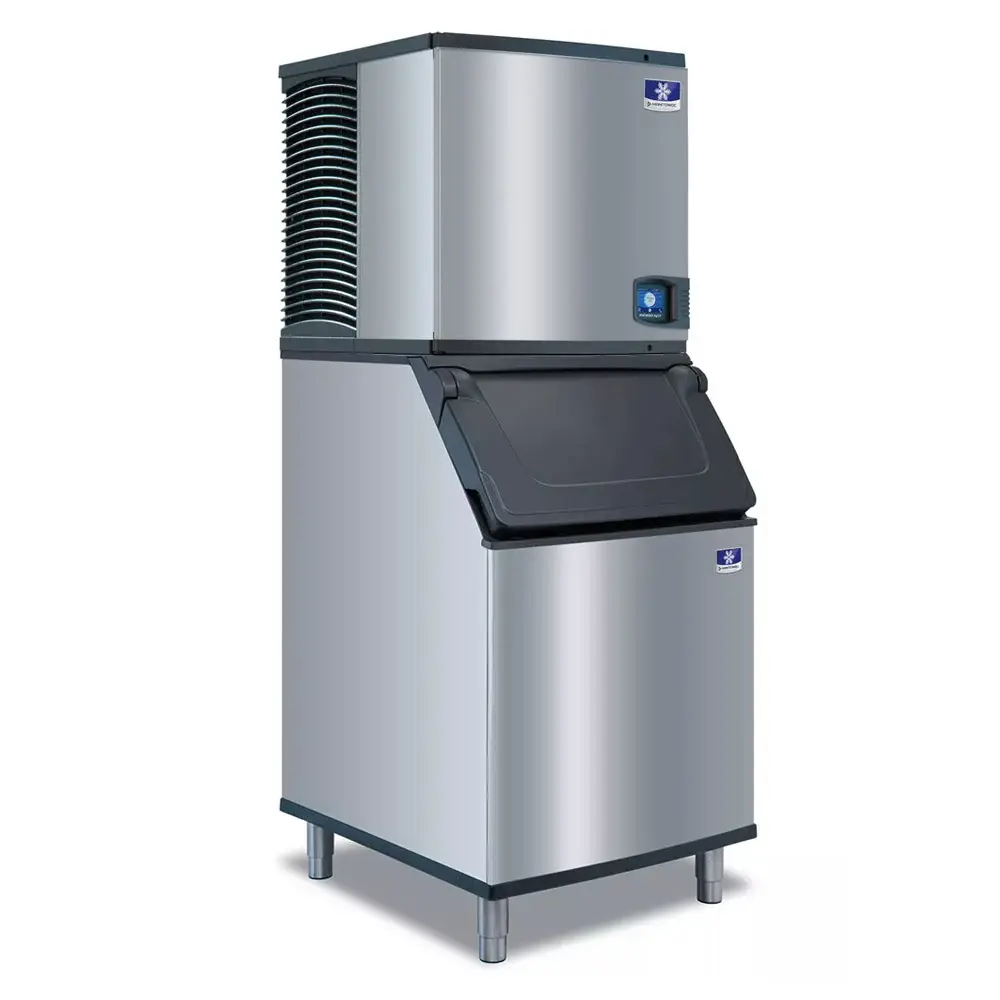

Manitowoc Ice IDT0500A/D570 520 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 115v

The Manitowoc Ice IDT0500A/D570 Indigo NXT™ ice maker with bin has a DuraTech™ exterior coating that resists corrosion and diminishes the appearance of stains and fingerprints. The bin is foam insulated and latches open to help staff fill buckets. A polyurethane liner provides an easy-to-clean bin surface, while the head’s removable parts facilitate cleanup. Additionally, several components in the head feature built-in AlphaSan® protection, which reduces bacteria growth between cleanings.

To keep the machine running properly, the Manitowoc Ice IDT0500A/D570 ice machine with bin provides preventative maintenance alerts. In ideal conditions, the unit produces 532 pounds of ice per day; however, if less ice is needed, operators can set daily production quotas or program off-hours. The easyTouch® display offers straightforward navigation, with icons marking its various functions. For consistency, an ice-sensing probe checks each cube, ensuring that they measure 7⁄8 inch on every side. Because these dice cubes are bigger than half-dice, flake, or nugget ice, they melt more slowly and water down drinks less.

Ice Maker Details

• Part of the Indigo NXT series
• 532-lb. daily ice production
• 400-lb. AHRI-certified daily ice production
• Time- or volume-based ice production levels
• User-friendly easyTouch screen controls
• Makes dice ice

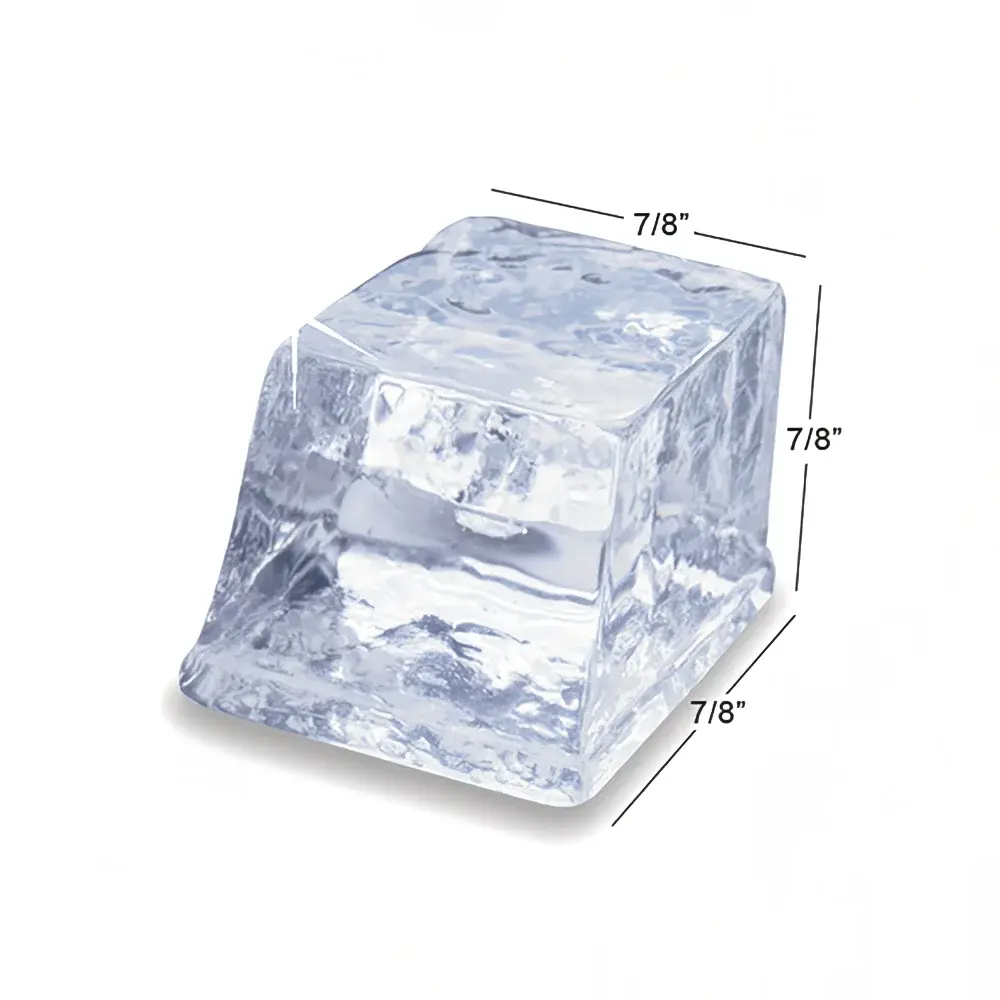

• Dice ice cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
• Proper ice thickness is ensured by an acoustical probe
• Removable foodzone parts facilitate frequent cleanings
• Antimicrobial agent combats bacteria growth
• 24-hr. self-monitoring system provides diagnostics and preventative maintenance alerts
• External DuraTech coating hides fingerprints and smudges
• Air-cooled condenser ensures quick installation
• R410A refrigerant
• 3,800 average BTU; 6,000 peak BTU

Product Features

Ice Bin Details

• 532-lb. application ice storage capacity
• 17.9-cu-ft. AHRI-certified ice storage capacity
• Scoop has retaining lip and can hold 5.3 lbs. of ice
• Scoop guards over the knuckle and thumb prevent hands from touching ice
• Holder keeps scoop handle out of the ice for cleanliness

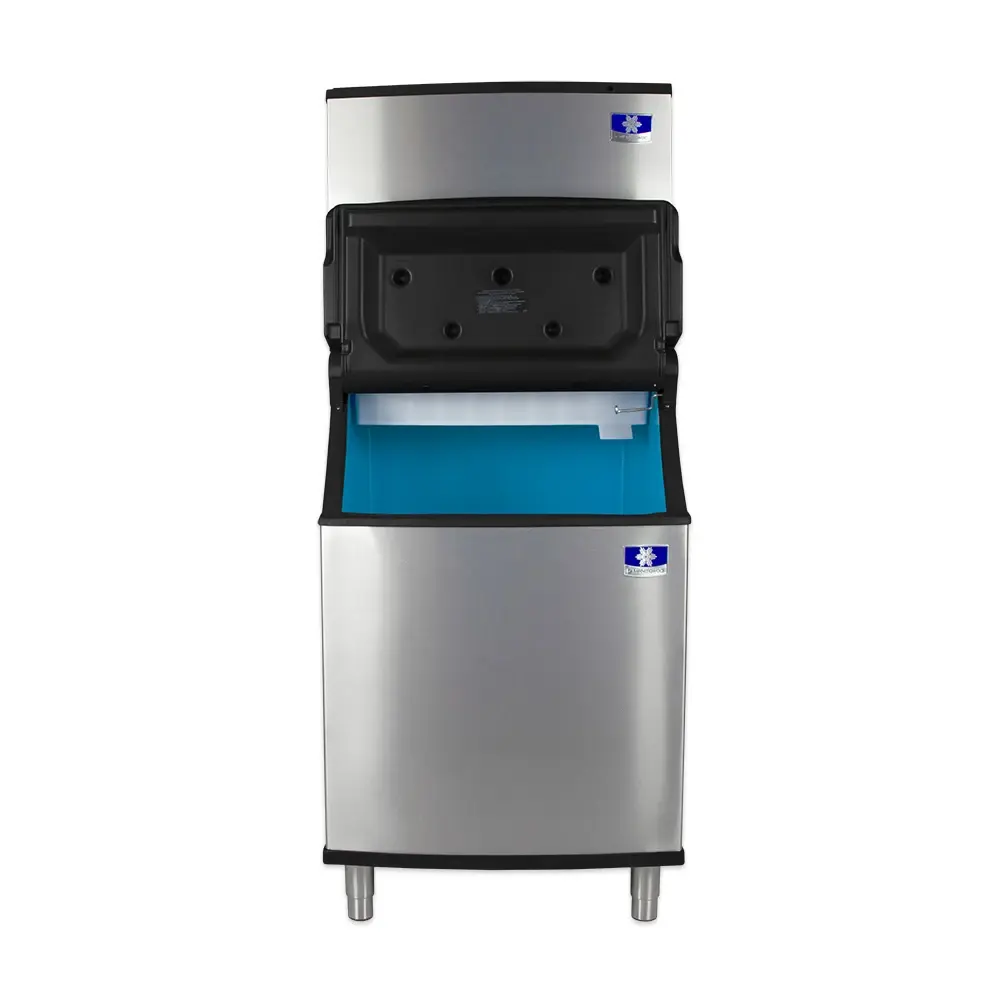

• Door features latches to provide room for scooping
• Built-in grips enable the door to be opened from the sides
• Door insulation slows down melting
• Polyurethane liner resists scratching
• DuraTech exterior resists staining and corroding

Ideal Operating Conditions

• Clearances: 12 in. on sides and top, 5 in. on rear
• Ambient air temperature: 40-110 degrees F
• Incoming water pressure: 20-80 PSI
• Water temperature: 40-90 degrees F

Dimensions & Utilities

• Bin: 30 in. W x 34 in. D x 50 in. H
• Ice maker: 30 in. W x 24 in. D x 21.5 in. H
• 11.5 A, 5.25 kW
• 115 V/60 Hz/1 ph

*Free shipping on Manitowoc Ice IDT0500A/D570 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 520 lb./24 hours at 70°/50° (400 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Bin, 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 532 lbs. application capacity, AHRI certified 17.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces full-cube ice ideal for soft drinks, bagging, bulk cooling, and filling coolers.

Also called self-contained, this compressor type uses air for cooling
