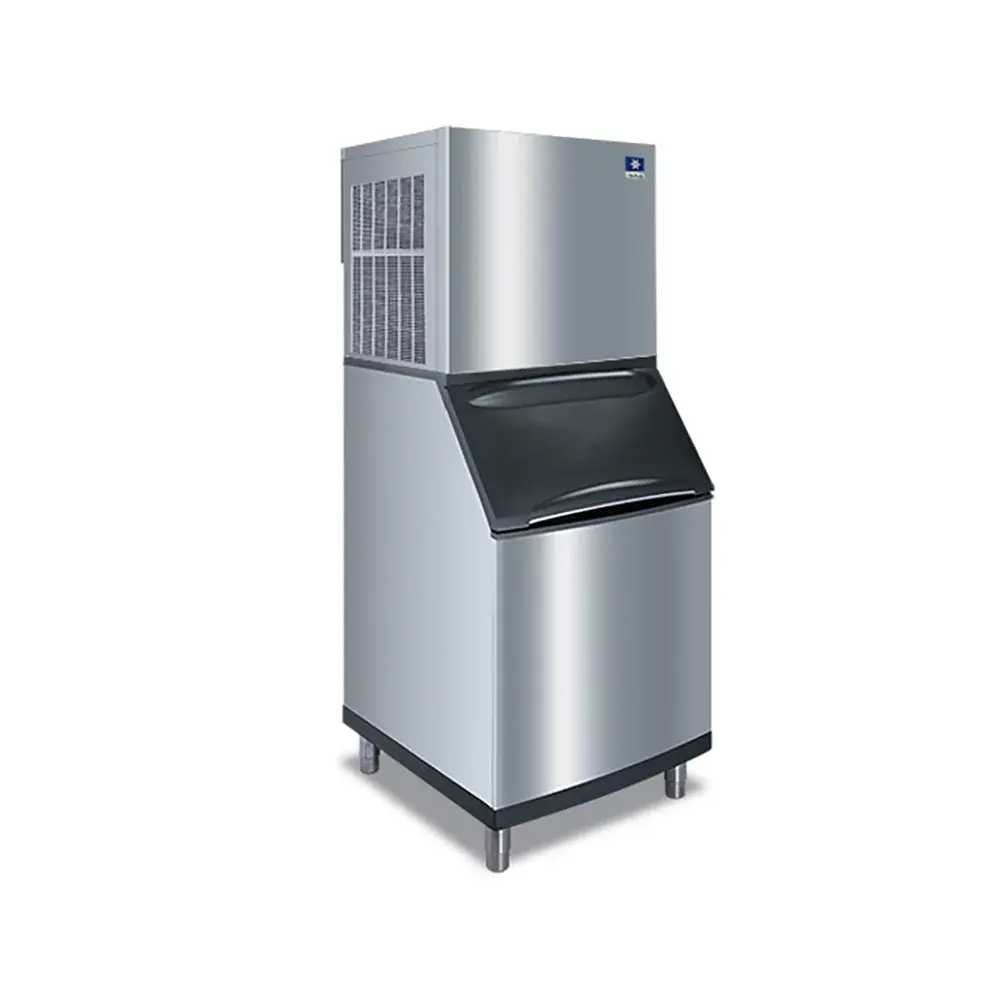

Manitowoc Ice RFF1300A/D970/K00470 1264 lb Flake Ice Machine w/ Bin - 882 lb Storage, Air Cooled, 208-230v

Producing flake ice, the Manitowoc Ice RFF-1300A/D-970 ice maker with bin is great for grocery stores and markets since this ice type is typically used for food presentations.It surrounds produce, seafood, and other food to keep it cold without damaging it. An air-cooled condenser means fans blow cold air over the coils to cool refrigerant so it can cool the evaporator and let water freeze. This ice machine can produce 1,264 pounds of ice every 24 hours if the ambient air is 70 degrees Fahrenheit and the incoming water is 50 degrees Fahrenheit.

This Manitowoc Ice RFF-1300A/D-970 ice maker with bin can store 882 pounds of ice. The bin has a polyurethane interior liner that is blue and eases cleaning, while the door's foam insulation prevents cold air from escaping quickly, slowing ice melting. For convenient opening from any angle, this door has grips in each side. It has a stay-open, self-latching design that provides access when users are scooping, and a 5.3-pound-capacity scoop is included. It has built-in guards that keeps the user's thumb and knuckles out of ice to prevent contamination.

Ice Maker Details

• 1,264-lb. maximum daily ice production
• Flake ice is small and hard, great for healthcare and presentations
• Air-cooled condensing unit uses fans to cool the condenser coils by blowing cold air over them, cooling refrigerant so it can remove heat from the evaporator
• R404A refrigerant
• Service updates facilitate cleaning and installation
• Heavy-duty, corrosion-resistant stainless steel cabinet
• Reliable, high-load bearing does not require maintenance
• 14,000 average BTU
• Required ambient air temperature: 50-110 degrees F
• Required incoming water temperature: 37-90 degrees F
• Required incoming water pressure: 14-80 PSI

Product Features

Bin Details

• 882-lb. application capacity
• 29.7-cu.-ft. AHRI-certified capacity
• Foam door insulation keeps cold air inside to slow melting
• Center, right, and left side door grips for opening at different angles
• Door is self-latching to stay open when necessary
• 5.3-lb. ice scoop capacity
• Built-in thumb and knuckle guard prevents hands from contaminating ice
• Blue polyurethane bin liner
• DuraTech exterior resists corrosion and smudges

Dimensions and Utilities

• Ice Maker
  • 30 in. W x 23.62 in. D x 27.4 in. H
  • 15 A, 4.24 kW, 1.5 HP
  • 208-230 V/60 Hz/1 ph
• Bin
  • 48 in. W x 34 in. D x 50 in. H

*Free shipping on Manitowoc Ice RFF1300A/D970/K00470 within the 48 contiguous states.

From The Manufacturer

Ice Maker, flake-style, air-cooled, self-contained condenser, 30"W x 23-5/8"D x 27-13/32"H, production capacity up to 1264 lb/24 hours at 70°/50° (951 lb AHRI certified at 90°/70°), high-load stainless steel bearings, stainless steel finish, ETL, cETLus

Ice Bin, 48"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 882 lbs. application capacity, AHRI certified 29.7 cu. ft., for top-mounted ice maker, Duratek exterior, NSF; (K00470) Bin Adapter, for 30" Indigo, Indigo NXT, RFF, RNF, ice machine on a 48" B or D-970 bin

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces flake ice perfect for salad bars, medical facilities, fresh seafood & produce displays, and blended beverages.

Also called self-contained, this compressor type uses air for cooling
