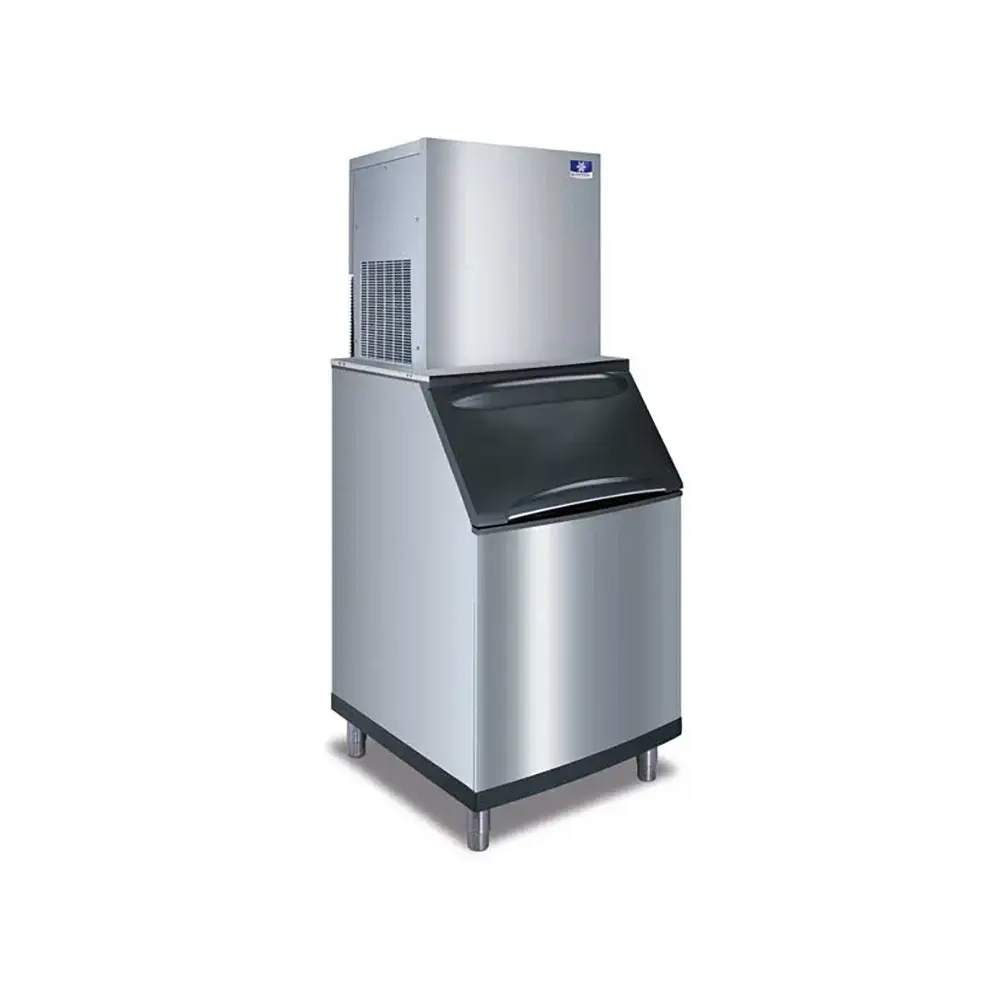

Manitowoc Ice RFF1220C/RCUF1200/D970/K00473 1152 lb Flake Ice Machine w/ Bin - 882 lb Storage, Remote Cooled, 208-230v

The Manitowoc Ice RFF-1220C-261/RCUF1200-261/D970 QuietQube® ice machine head produces flake ice—an ice type typically used for food displays because it keeps product cold without bruising or damaging it. Flake ice is also used in healthcare operations since its small size reduces choking hazards. In 24 hours, this unit can produce as much as 1,092 pounds with ideal ambient conditions. With a slim profile and lightweight design, this ice maker fits in compact spaces and is simple to install.

This unit is designed to be remotely cooled with a remote condensing unit (sold separately), enabling operators to install the ice maker inside while the condenser runs in a separate location; this dissipates heat and noise away from the ice machine to improve the conditions surrounding it.

The Manitowoc Ice D970 ice bin is included with this RFF-1220C ice maker for ice storage after harvesting. It accommodates 882 pounds and has a polyurethane interior liner that simplifies cleaning and enhances ice clarity. The bin door is angled to improve product access, and it stays in the open position for convenient scooping.

Ice Maker Details

• Part of the QuietQube series
• 1,092-lb. maximum daily ice production
• 958-lb. AHRI-certified daily ice production
• Makes flake ice for food displays and healthcare applications
• Quiet operation for customer-facing areas
• Slim profile and lightweight construction maximize installation options
• Stainless steel exterior resists rust
• R-404A refrigerant
• Ideal ambient air temperature: 50-110 degrees F
• Ideal incoming water temperature: 37-90 degrees F
• Ideal incoming water pressure: 14-80 PSI

Remote Condenser Details

• Should be connected to the ice machine head with refrigerant lines to cool the components
• Ideal ambient air temperature: -20 to 120 degrees F
• Maximum line length: 100 ft.
• Maximum vertical rise above ice machine head: 35 ft.
• Maximum vertical drop below ice machine head: 15 ft.
• 7,680 BTU

Ice Bin Details

• 882-lb. storage capacity
• 29.7-cu.-ft. AHRI-certified capacity
• Arctic blue polyurethane interior liner
• Duratech exterior finish resists corrosion and hides smudges
• Ergonomically designed door is angled to provide convenient access to the bin bottom
• Door stays up and out of the way during scooping
• Foam insulation in the door traps cold air
• Includes 5.3-lb.-capacity scoop with sanitary knuckle and thumb guards

Dimensions & Utilities

• Ice Maker
  • 22 in. W x 233/5 in. D x 26 in. H
  • 1.4 A, 3.98 kW
  • 208-230 V/60 Hz/1 ph
• Ice Bin
  • 48 in. W x 34 in. D x 50 in. H
• Overall: 48 in. W x 34 in. D x 76 in. H

Product Features

*Free shipping on Manitowoc Ice RFF1220C/RCUF1200/D970/K00473 within the 48 contiguous states.

From The Manufacturer

Ice Maker, flake-style, air-cooled, designed for remote refrigeration, 22"W x 23-5/8"D x 26"H, production capacity up to 1152 lb/24 hours at 70°/50° (958 lb AHRI certified at 90°/70°), high-load stainless steel bearings, stainless steel finish, ETL, cETLus, ENERGY STAR®

Ice Bin, 48"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 882 lbs. application capacity, AHRI certified 29.7 cu. ft., for top-mounted ice maker, Duratek exterior, NSF; (RCUF1200) Remote Condensing Unit, air-cooled, (QuietQube), 1-1/2 HP, AHRI, ETL, cETLus, CE; (K00473) Bin Adapter, for 22" Indigo, Indigo NXT, RFF, RNF ice machine on a D-970 Bin (not for IB)

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces flake ice perfect for salad bars, medical facilities, fresh seafood & produce displays, and blended beverages.

This unit requires an external cooling system (sold separately)
