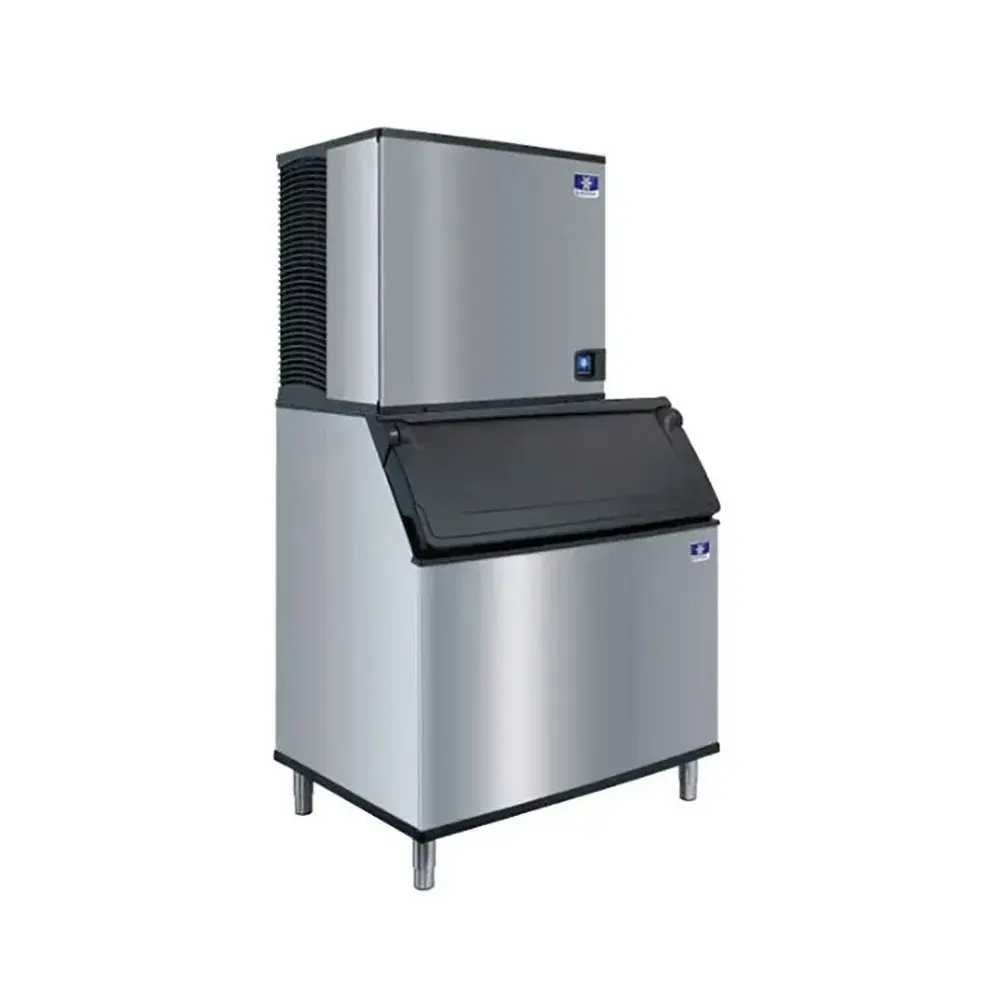

Manitowoc Ice IYT0900A/D970/K00470 865 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 882 lb Storage, Air Cooled, 208-230v

In 24 hours, the Manitowoc Ice IYT0900A-271/D970/K00470 Indigo® NXT™ ice maker with bin can make 865 pounds of half-cube ice that measure 3/8 of an inch by 11/8 inches by 7/8 of an inch. This type of ice can be bagged or used in soft drinks and cocktails. The operator can program ice production to suit different applications, and the touchscreen display simplifies operation. For reliable production, it uses acoustical ice-sensing probes and active-sense technology. Because the unit runs preventive maintenance and diagnostics, it provides feedback if there is a system issue.

Staff can clean the foodzone by opening the hinged front door and removing the water trough, distribution tube, curtain, and sensing probes. Because some of these components are treated with AlphaSan® antimicrobial, bacterial growth is minimized. This unit measures 30 inches wide by 241⁄2 inches deep by 261⁄2 inches tall overall and sports a corrosion-, dirt-, and fingerprint-resistant DuraTech™ exterior with an attractive clear coat.

The bin on this Manitowoc Ice IYT0900A-271/D970/K00470 ice maker can hold 882 pounds of ice in its 29.7-cubic-foot interior. To accentuate ice clarity, its polyurethane liner is arctic blue. The bin door is insulated with foam to retain cold air, slow ice melting, and reduce condensation buildup, and after the door is opened, it stays in a latched position for convenient access. This bin includes an ice scoop and has a 53⁄10 pound capacity and molded-in retaining lip that prevents ice from spilling out during retrieval. A built-in knuckle and thumb guard on the scoop prevents user hands from touching and contaminating ice. Overall, the base measures 48 inches wide by 34 inches deep by 50 inches high and is positioned on a set of chrome legs that can be raised from 6 inches to 73⁄4 inches.

Ice Maker Details

• Part of the Indigo NXT series
• 865-lb. maximum daily ice production
• 750-lb. AHRI-certified daily ice production
• Makes half-cube ice
• Half-cube ice size: 7/8 in. x 11/8 in. x 3/8 in.
• Ice production volume and time can be programmed
• Icon-based easyTouch® display simplifies operation and maintenance
• 24-hour preventive maintenance and diagnostic feedback
• Acoustic ice-sensing probe and active-sense technology enhance production reliability
• Hinged, swing-out foodzone door provides convenient component access
• Removable curtain, distribution tube, water trough, and sensing probes
• AlphaSan antimicrobial agent is integrated into components to slow bacteria growth
• DuraTech clear-coated exterior resists corrosion and smudges
• Uses R410A refrigerant
• Required ambient air temperature range: 40-100 degrees F
• Required incoming water temperature range: 40-90 degrees F
• Required incoming water pressure range: 20-80 PSI

Ice Bin Details

• 882-lb. capacity
• 29.7-cu.-ft. AHRI-certified capacity
• Arctic blue polyurethane interior liner eases cleanup
• 53⁄10-lb.-capacity ice scoop features molded-in retaining lip that maximizes capacity
• Scoop guard prevents thumb and knuckles from contaminating ice
• Built-in front and side door grips ease opening
• Door self-latches and remains in place while users scoop ice
• Foam door insulation retains cold air to slow melting and reduce condensation buildup
• 6-in. adjustable chrome legs

Dimensions & Utilities

• Ice bin: 48 in. W x 34 in. D x 50 in. H
• Ice maker: 30 in. W x 241⁄2 in. D x 261⁄2 in. H
• Overall: 48 in. W x 34 in. D x 761⁄2 in. H
• 9.5 A, 4.58 kW
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IYT0900A/D970/K00470 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 26-1/2"H, production capacity up to 865 lb/24 hours at 70°/50° (750 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Bin, 48"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 882 lbs. application capacity, AHRI certified 29.7 cu. ft., for top-mounted ice maker, Duratek exterior, NSF; (K00470) Bin Adapter, for 30" Indigo, Indigo NXT, RFF, RNF, ice machine on a 48" B or D-970 bin

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

Also called self-contained, this compressor type uses air for cooling
