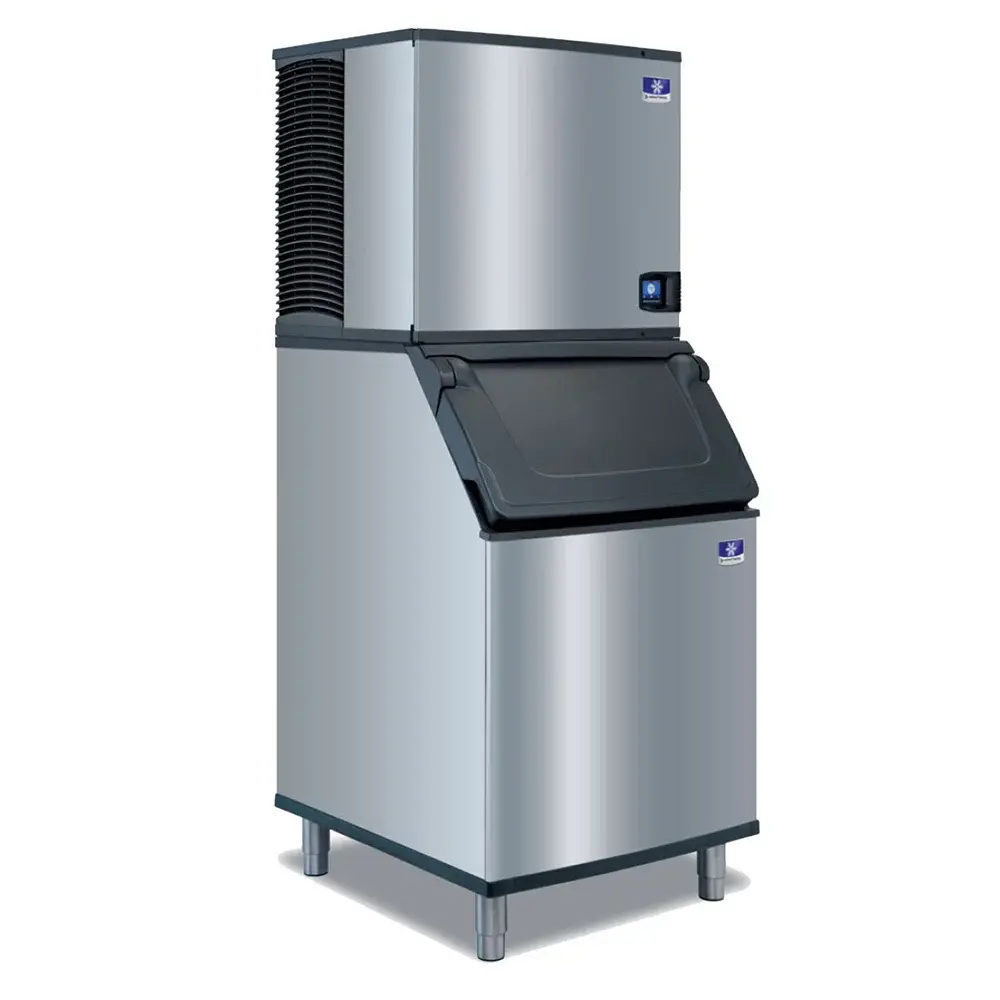

Manitowoc Ice IYT0900A/D570 865 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 208-230v

The Manitowoc Ice IYT0900A-261/D570 Indigo® NXT™ ice maker with bin produces half-cube ice that measures 3/8 of an inch by 11/8 inches by 7/8 of an inch. These cubes are ideal for soft drinks and cocktails and can also be used in bagged applications.When ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit, this unit can produce 865 pounds of ice over the span of 24 hours. The easyTouch® display provides a simple-to-use, icon-based medium to streamline operation. Its intelligent diagnostics provide 24-hour preventive maintenance and diagnostic feedback to ensure the unit is functioning properly. To enhance production consistency and harvesting in various environmental conditions, it features an acoustical ice-sensing probe and active-sense technology.

This unit's ice machine head measures 30 inches wide by 241⁄2 inches deep by 261⁄2 inches tall and features a corrosion-, fingerprint-, and dirt-resistant DuraTech® exterior. It's built with a hinged, swing-out front door that grants direct access to the foodzone. Staff can remove the water trough, distribution tube, curtain, and sensing probes for quick, efficient cleaning. To inhibit bacterial growth between regularly scheduled cleanings, some internal components are treated with AlphaSan® antimicrobial.

The Manitowoc Ice IYT0900A-261/D570 ice machine with bin can store 532 pounds of ice in its 30-inch-wide by 34-inch-deep by 50-inch-tall base. To ease product retrieval, it comes with a scoop that can hold 53⁄10 pounds of ice. While its molded retaining lip secures ice in place, its integrated thumb and knuckle guards prevent hands from coming in contact with ice. The bin door's front and side grips ensure staff can comfortably open it from the front, right, or left. After the door is raised, it stays in position, so users don't have to hold it open as they scoop ice. Like the ice machine head, its exterior is made of a DuraTech metal finish for long-term durability.

Ice Maker Details

• Part of the Indigo NXT series
• 865-lb. maximum daily ice production
• 750-lb. AHRI-certified daily ice production
• Makes half-cube ice
• Half-cube ice size: 3/8 in. x 11/8 in. x 7/8 in.
• Production time and volume can be programmed
• Icon-based easyTouch display for programming and servicing
• 24-hour preventive maintenance and diagnostics
• Acoustic ice-sensing probe maintains water quality in all conditions
• Hinged, swing-out foodzone door
• Removable distribution tube, curtain, water trough, and sensing probes
• AlphaSan antimicrobial agent on components slows bacterial growth
• Corrosion- and smudge-resistant, clear-coated DuraTech exterior
• R410A refrigerant
• Required ambient air temperature range : 40-100 degrees F
• Required incoming water temperature range: 40-90 degrees F
• Required incoming water pressure range: 20-80 PSI

Ice Bin Details

• 532-lb. application capacity
• 17.9-cu.-ft. AHRI-certified capacity
• Arctic blue polyurethane liner simplifies cleaning
• 53⁄10-lb.-capacity ice scoop with built-in thumb and knuckle guards
• Scoop's molded-in retaining lip maximizes capacity
• Built-in grips on door's sides and door ensure convenient opening
• Door self-latches and stays in place during scooping
• Foam door insulation reduces condensation and maintains ice form
• 6-in. adjustable chrome legs

Dimensions & Utilities

• Ice bin: 30 in. W x 34 in. D x 50 in. H
• Ice maker: 30 in. W x 241⁄2 in. D x 261⁄2 in. H
• Overall: 30 in. W x 34 in. D x 761⁄2 in. H
• 9.5 A, 4.58 kW
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IYT0900A/D570 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 26-1/2"H, production capacity up to 865 lb/24 hours at 70°/50° (750 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Bin, 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 532 lbs. application capacity, AHRI certified 17.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

Also called self-contained, this compressor type uses air for cooling
