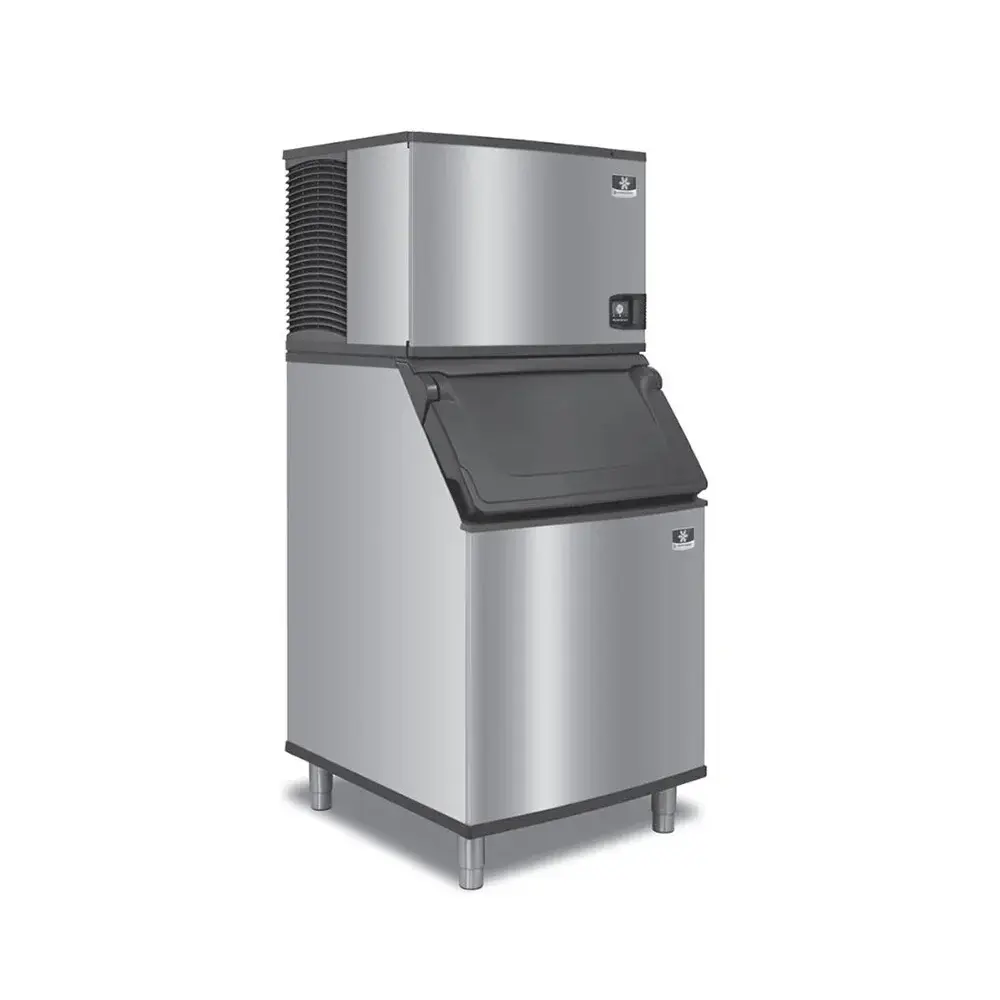

Manitowoc Ice IYT0750A/D970/K00470 715 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 882 lb Storage, Air Cooled, 208-230v

The Manitowoc Ice IYT0750A-161/D970/K00470 Indigo® NXT™ half-cube ice machine uses an ice-sensing probe to monitor ice cube thickness and ensure the product consistency. To generate a maximum of 715 pounds of ice in 24 hours, ambient air must be 70 degrees Fahrenheit and incoming water should be 50 degrees Fahrenheit. Users can program the time and volume of daily ice production using the easyTouch® digital control panel. Intelligent diagnostics provide 24-hour preventive maintenance and diagnostic feedback to minimize the chance of long-term operation issues.

To ease setup, this 30-inch-wide by 24-inch-deep by 211⁄2-inch-tall ice machine head boasts a self-contained, air-cooled condenser. Its DuraTech® exterior provides lasting corrosion resistance, while its clear coat resists fingerprints and dirt to simplify cleaning. Users can open the front hinged door to access the foodzone, which includes a removable distribution tube, curtain, sensing probe, and water trough to ease cleaning. Some of these components are treated with AlphaSan® antimicrobial to inhibit bacterial growth between regular cleanings.

The Manitowoc Ice IYT0750A-161/D970/K00470 commercial ice maker's base holds 882 pounds of ice in its 29.7-cubic-foot interior. This 48-inch-wide by 34-inch-deep by 50-inch-tall bin features a polyurethane arctic blue liner and a DuraTech metal finish to match the ice machine head. To slow ice melting, its door is insulated. Staff can grip the door with one hand from the left, right, or center, and once it's fully opened, it self-latches to remain in place as users retrieve ice. The door is angled 53 degrees so users can access the unit's base. This unit comes with an NSF-approved sanitary ice scoop that guards the knuckles and thumbs, and its molded retaining lip maximizes the amount of ice that can be lifted.

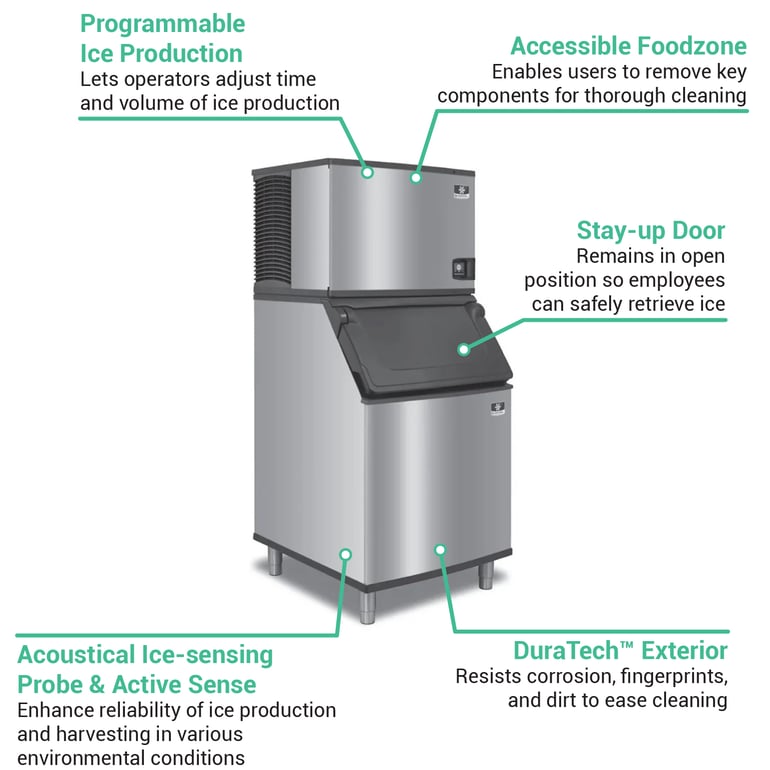

Ice Maker Details

• Part of the Indigo NXT series
• 715-lb. maximum daily ice production
• Produces half-cube ice
• Half-cube ice size: 3⁄8 in. x 11⁄8 in. x 7⁄8 in.
• Self-contained, air-cooled condenser
• CFC-free R410A refrigerant
• easyTouch icon-based display
• Programmable production time and volume
• Intelligent diagnostics with 24-hour preventive maintenance and diagnostic feedback
• Acoustical ice-sensing probe and active-sense technology
• DuraTech exterior with innovative clear coat
• Hinged front door
• Fully accessible foodzone with removable water trough, distribution tube, curtain, water probe, and water pump
• AlphaSan antimicrobial treatment integrated into some key components
• Uses 20 gal. of water per 100 lbs. of ice
• Required ambient air temperature range: 40-110 degrees F
• Required incoming water temperature range: 40-90 degrees F
• Required potable water pressure range: 20-80 PSI

Ice Bin Details

• 882-lb. storage capacity
• 29.7-cu.-ft. interior volume
• DuraTech metal finish
• Polyurethane arctic blue bin liner
• Insulated door
• Ergonomic, 53-degree-angled door
• Built-in door grips
• Door remains in open position to simplify ice retrieval
• Includes ergonomic, NSF-approved ice scoop with knuckle and thumb guard
• Mounted on 6-in. adjustable chrome legs

Dimensions & Utilities

• Ice storage bin: 48 in. W x 34 in. D x 50 in. H
• Ice machine head: 30 in. W x 24 in. D x 211⁄2 in. H
• Overall: 48 in. W x 34 in. D x 711⁄2 in. H
• 11.1 A, 5.12 kW
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IYT0750A/D970/K00470 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 715 lb/24 hours at 70°/50° (575 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Bin, 48"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 882 lbs. application capacity, AHRI certified 29.7 cu. ft., for top-mounted ice maker, Duratek exterior, NSF; (K00470) Bin Adapter, for 30" Indigo, Indigo NXT, RFF, RNF, ice machine on a 48" B or D-970 bin

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

Also called self-contained, this compressor type uses air for cooling
