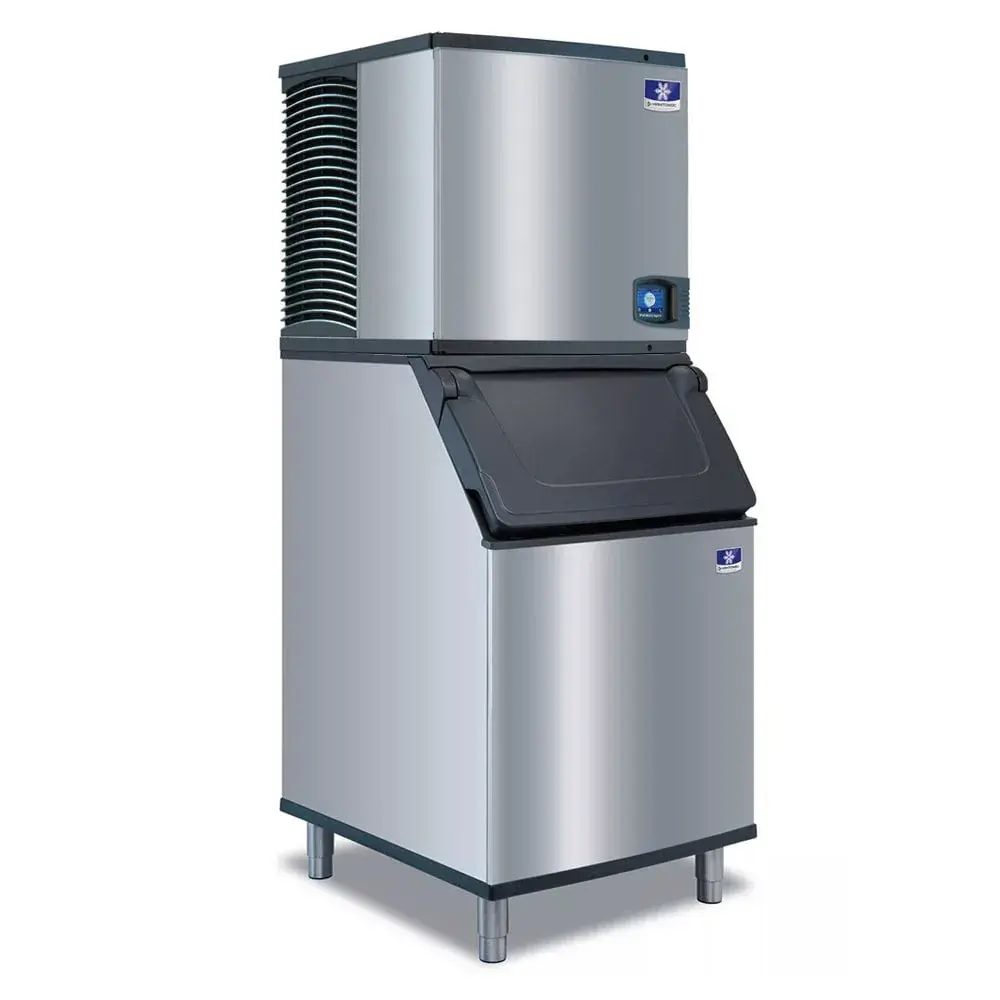

Manitowoc Ice IYT0500W/D570 535 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 532 lb Storage, Water Cooled, 115v

The Manitowoc IYT-0500W-161/D-570 Indigo NXT™ ice maker with bin can store 532 pounds of ice and produce 535 pounds of ice within a 24-hour period. Operators can schedule ice production by volume in the bin or at a certain time during the day. An acoustical probe measures ice thickness before it drops in to the bin. Ice will not melt quickly since the door is foam insulated. An ice scoop comes with the bin, and built-in knuckle guards prevent contamination.

Diagnostics run on the head to ensure proper operation, while its easyTouch® control panel has touch icons to simplify use. Side lifts in the door ease opening, while a latch keeps the door open so employees can scoop ice. With a DuraTech® exterior, the Manitowoc IYT-0500W-161/D-570 ice maker with bin maintains a clean appearance.

Ice Machine Head

• 535-lb. ice production capacity
• 460-lb. AHRI-certified production capacity
• easyTouch control panel has touch icons
• Schedule ice production by volume or time of day
• Hinged front door
• Removable parts for cleaning
• AlphaSan antimicrobial technology slows bacteria growth
• Runs 24-hr. diagnostics to manage issues
• Acoustical probe uses sound waves to check ice thickness
• Smudges are hidden by the DuraTech clear coat
• Produces half dice ice
• Water-cooled motor
• R410A refrigerant
• Part of the Indigo NXT series
• Required ambient temperature range: 40-110 degrees F
• Required incoming water temperature range: 40-90 degrees F
• Required water pressure: 20-80 PSI
• Average BTU per hour: 3,800
• Peak BTU per hour: 6,000
• 10.8 A, 3.9 kW
• 115 V/60 Hz/1 ph
• Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.
• Overall dimensions: 30 in. W x 34 in. D x 71.5 in. H

Product Features

Ice Storage Bin

• 532-lb. storage capacity
• 17.9-cu.-ft. AHRI-certified storage capacity
• Hands do not contact ice with a built-in knuckle guard on the scoop
• 5.3-lb. ice scoop capacity
• Holder keeps scoop out of ice
• Side grips enhance door lifting
• Insulated door retains cold air
• Latch keeps the door open for scooping
• DuraTech clear coat reduces smudges and fingerprints

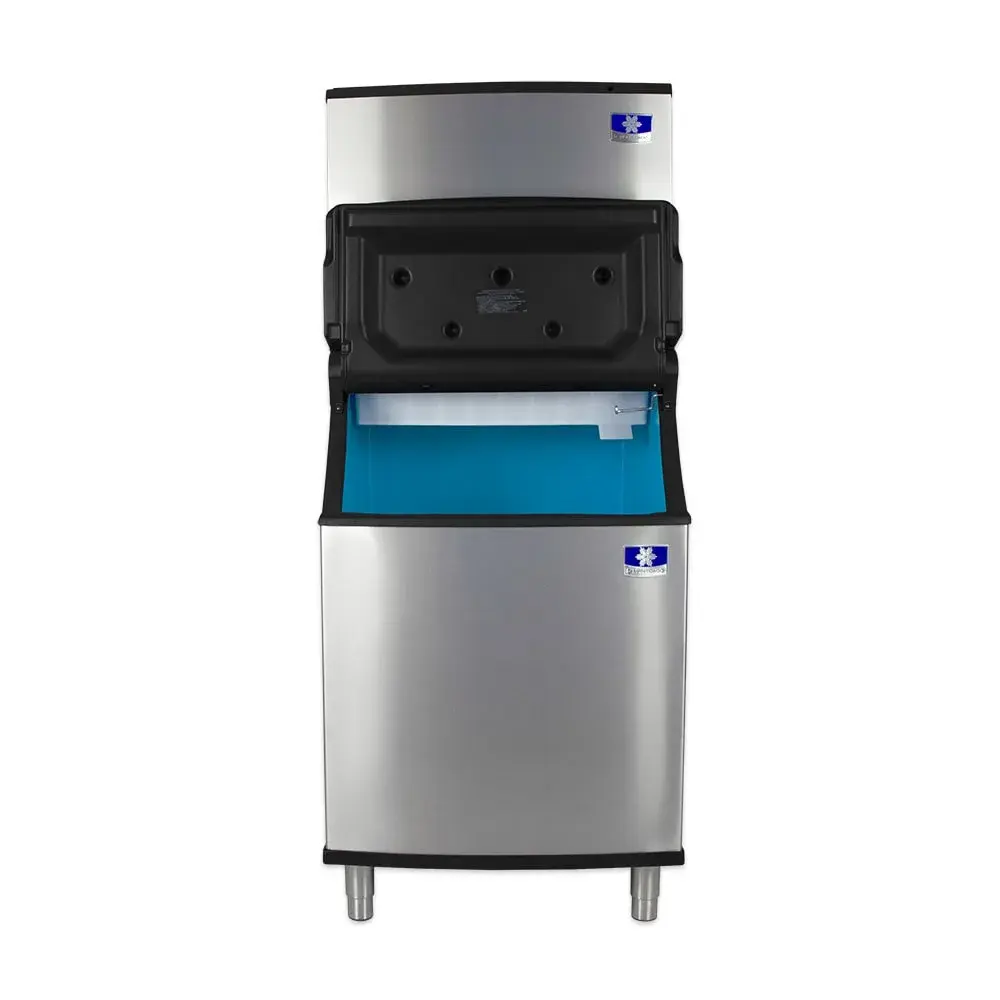

• Polyurethane artic blue bin liner

*Free shipping on Manitowoc Ice IYT0500W/D570 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 535 lb/24 hours at 70°/50° (460 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410 refrigerant, NSF, cULus, CE

Ice Bin, 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 532 lbs. application capacity, AHRI certified 17.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

This unit requires a second supply of water for cooling
