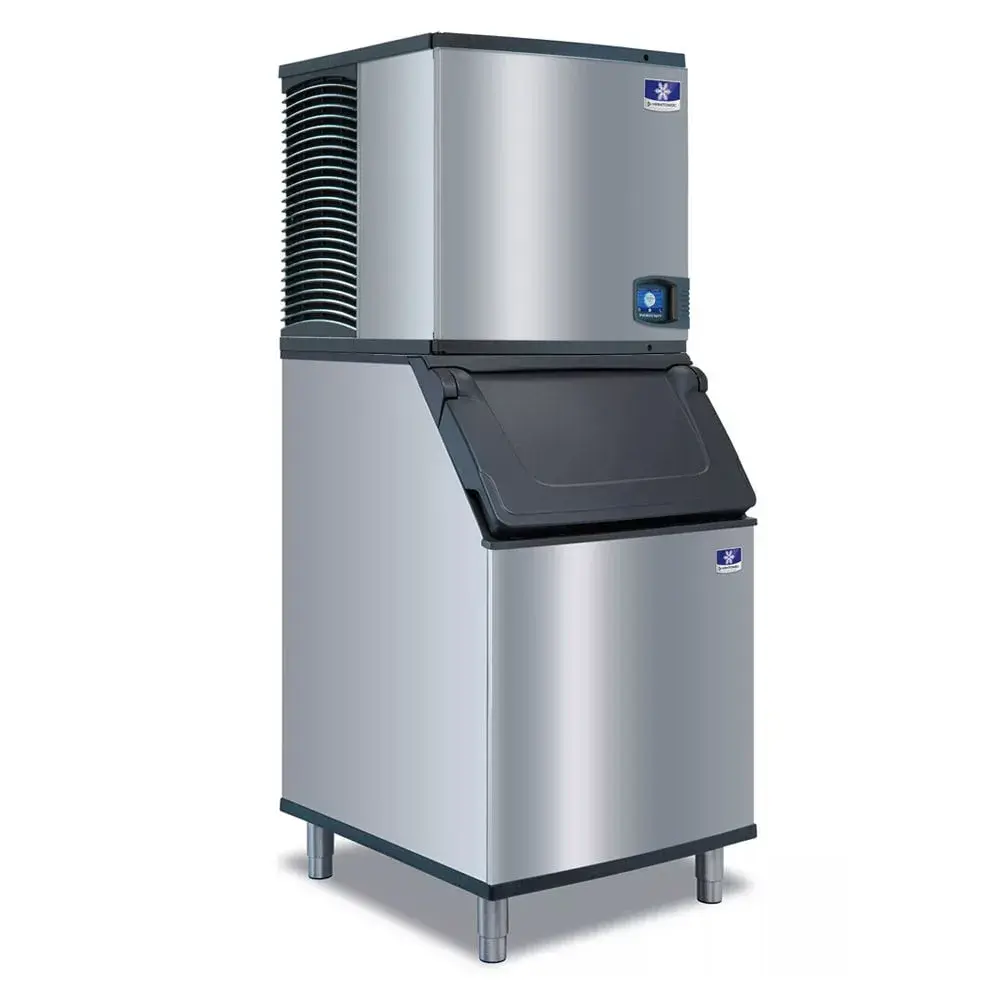

Manitowoc Ice IYT0450W/D570 470 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 532 lb Storage, Water Cooled, 115v

The Manitowoc IYT-0450W-161/D-570 Indigo NXT™ ice maker with bin can produce 470 pounds of ice and store 532 pounds of ice. To prevent hands from contacting ice, the ice scoop has a built-in handle, and a storage holder for the scoop is included. Before ice is dropped, an acoustical ice probe checks the thickness, while diagnostics run daily to ensure the head is running properly. Some of the major components are built with AlphaSan® technology to slow scale buildup, and many parts are removable for cleaning. The exterior of the Manitowoc IYT-0450W-161/D-570 ice maker and bin is coated in DuraTech® to resist smudges and fingerprints.

Ice Machine Head

• 470-lb. ice production capacity
• 420-lb. AHRI-certified production capacity
• easyTouch display uses icons on a touchscreen to control the unit
• Ice production is programmable by volume or time of day
• Hinge front door
• Removable water trough, distribution tube, curtain, water probe, and water pump
• AlphaSan is built into certain components to prevent scale buildup
• Diagnostics run daily to provide operating feedback
• Acoustical ice probe ensures correct ice thickness before dropping
• DuraTech clear coat over stainless steel to resist fingerprints
• Produces half dice ice
• Water-cooled motor
• Uses R410A refrigerant
• Part of the Indigo NXT series
• Required ambient temperature range: 40-110 degrees F
• Required incoming water temperature range: 40-90 degrees F
• Required water pressure: 20-80 PSI
• Average BTU per hour: 3,800
• Peak BTU per hour: 6,000
• 11.2 A, 4.7 kW
• 115 V/60 Hz/1 ph
• Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.
• Overall dimensions: 30 in. W x 34 in. D x 71.5 in. H

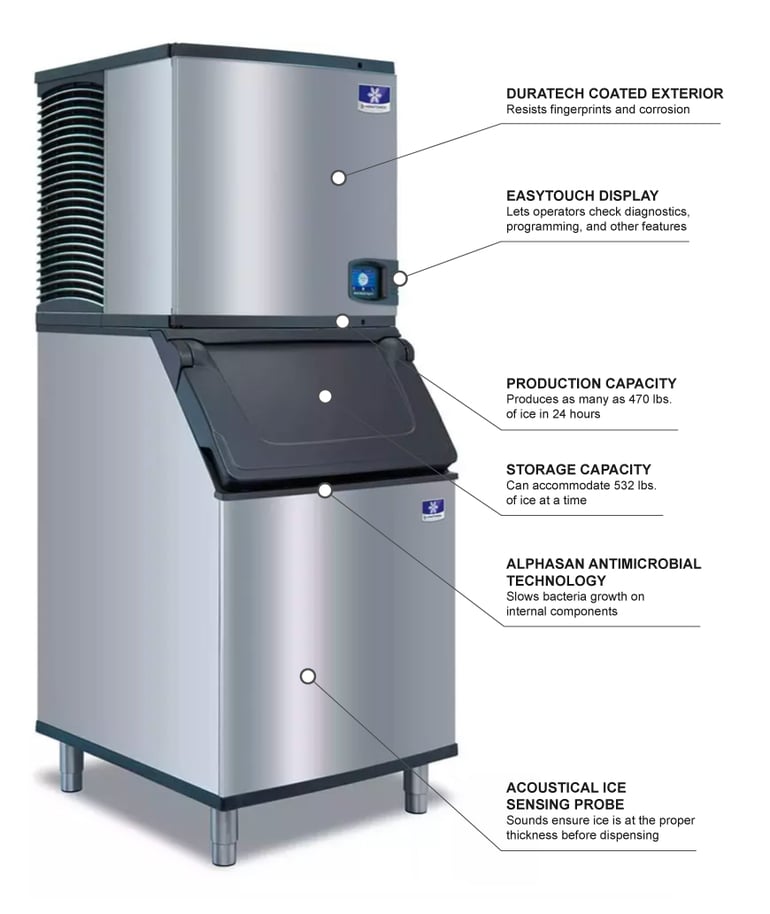

Product Features

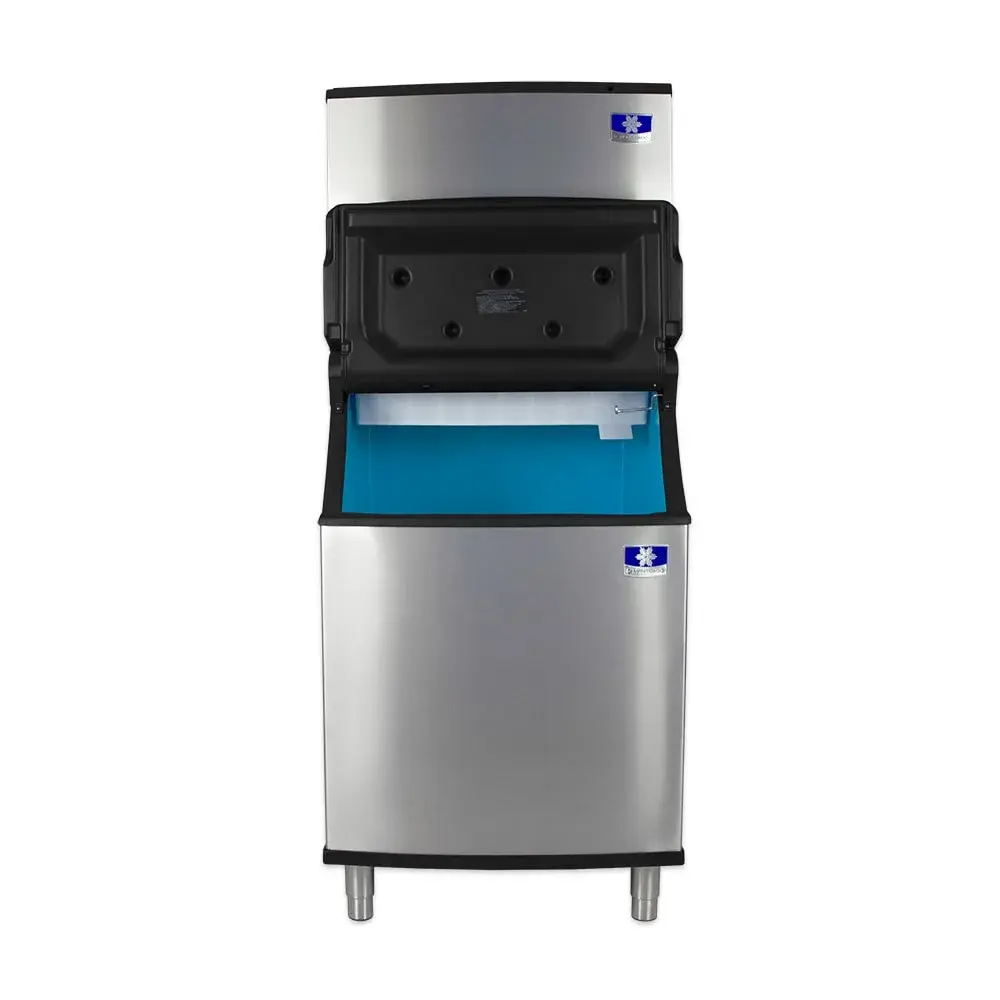

Ice Storage Bin

• 532-lb. storage capacity
• 29.7-cu.-ft. AHRI-certified storage capacity
• Built-in knuckle guard on the scoop prevents hands from touching ice
• 5.3-lb. ice scoop capacity
• Holder keeps scoop out of ice
• Side grips on the door ease lifting
• Door is foam insulated to prevent ice from melting quickly
• Door latches open for convenience
• Smudge-resistant DuraTech finish
• Polyurethane artic blue bin liner

*Free shipping on Manitowoc Ice IYT0450W/D570 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 470 lb/24 hours at 70°/50° (420 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes,R410A refrigerant, NSF, cULus, CE

Ice Bin, 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 532 lbs. application capacity, AHRI certified 17.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

This unit requires a second supply of water for cooling
