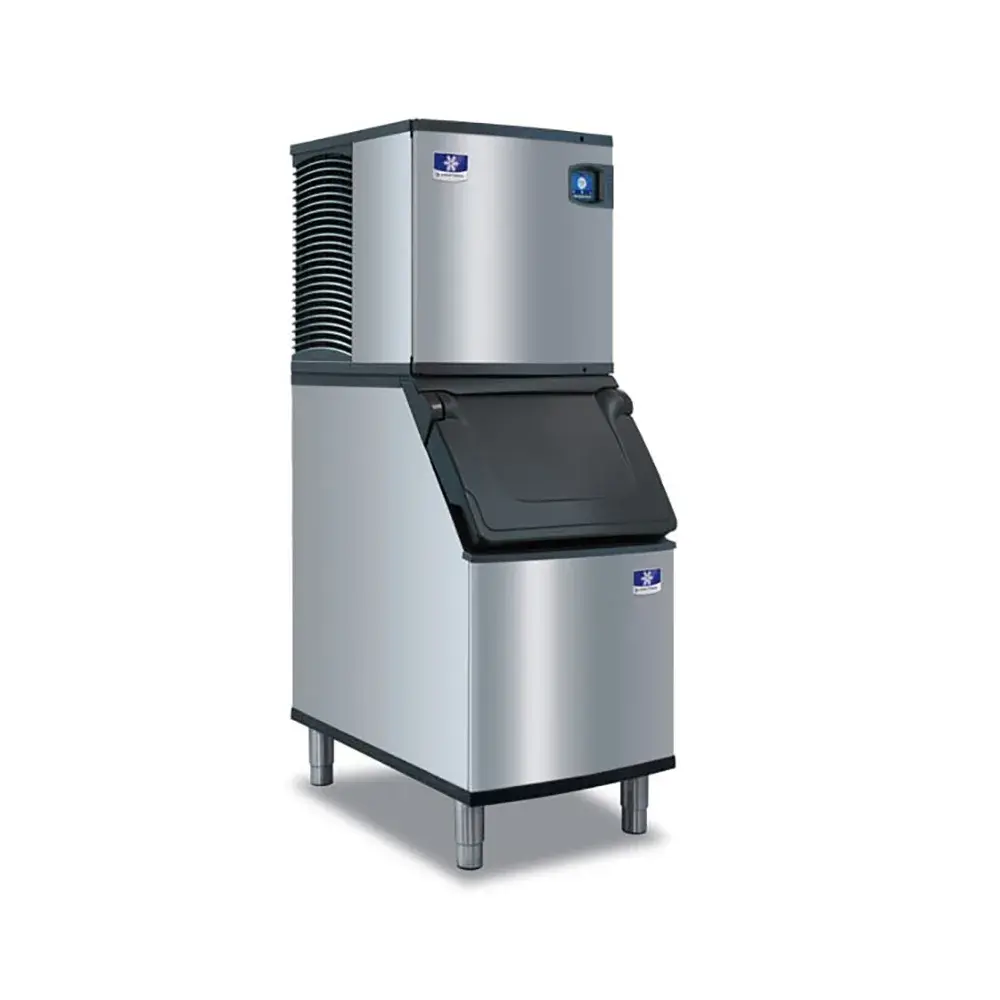

Manitowoc Ice IYT0420W/D320 490 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 264 lb Storage, Water Cooled, 115v

The Manitowoc Ice IYT-0420W-161/D-320 ice maker with bin can produce 490 pounds of ice in 24 hours, though it is certified by AHRI to make 425 pounds. Operators can set ice production based on a desired daily volume or time of day, and ice thickness is measured by a probe to ensure each cycle is consistent. Holding 364 pounds, the bin includes a scoop with built-in thumb and knuckle guards. Foam insulation in the bin door slows the melting process, and side grips enable operators to open the door from any angle.

Ice Maker Details

• 490-lb. ice production capacity
• 425-lb. AHRI-certified ice production capacity
• Half-dice ice size: 0.375 in. x 1.125 in. x 0.875 in.
• Ice production volume and time are programmable
• Acoustical ice sensing probe measures thickness
• easyTouch® display has touchscreen controls
• Runs 24-hr. preventive maintenance and provides diagnostic feedback
• Hinged front door swings out to access food zone components
• Some parts are removable to simplifying cleanup
• AlphaSan® antimicrobial slows bacteria growth on select components
• DuraTech exterior is corrosion resistant and reduces fingerprint visibility

Product Features

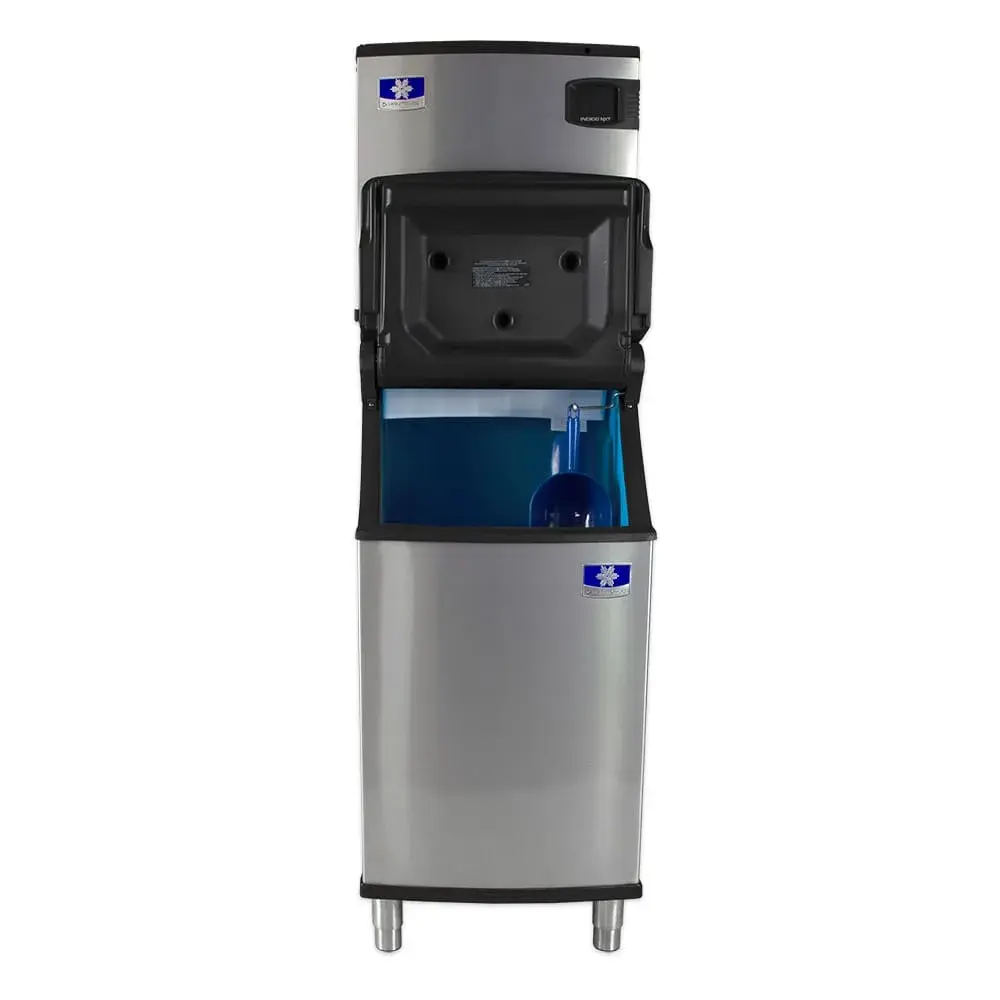

Bin Details

• 264-lb. application capacity
• 8.9-cu.-ft. AHRI-certified capacity
• Foam insulation slows melting
• Side door grips for convenient opening
• Self-latching door stays open while employees are scooping ice
• 5.3-lb. ice scoop capacity
• Scoop has a built-in knuckle and thumb guard to prevent contamination
• Polyurethane bin liner
• DuraTech exterior

Dimensions & Utilities

• Ice Maker
  • 22 in. W x 24.5 in. D x 21.5 in. H
  • 10.6 A, 4.24 kW
  • 208-230 V/60 Hz/1 ph
• Bin
  • 22 in. W x 34 in. D x 38 in. H

*Free shipping on Manitowoc Ice IYT0420W/D320 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 490 lb/24 hours at 70°/50° (425 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE

Ice Bin, 22"W x 34"D x 38"H, with side-hinged front-opening door, side grips, 264 lbs. application capacity, AHRI certified 8.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

This unit requires a second supply of water for cooling
