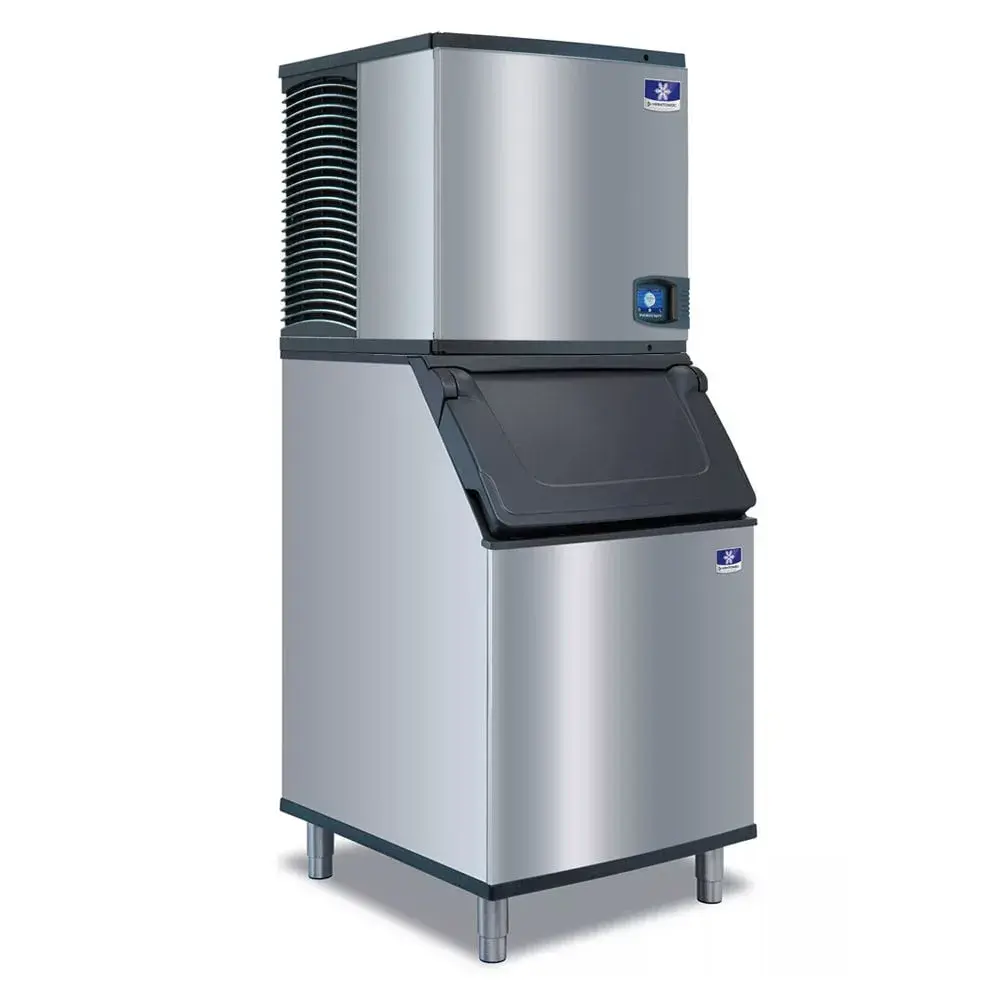

Manitowoc Ice IDT1200A/D570 1196 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 208-230v

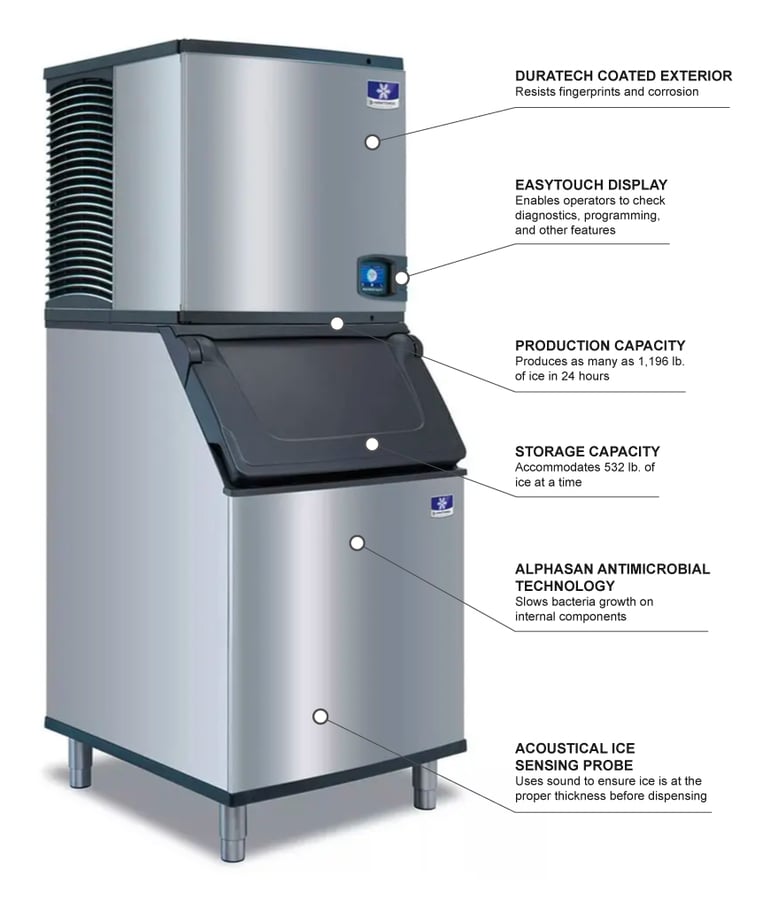

In 24 hours, the Manitowoc Ice IDT-1200A/D-570 Indigo NXT™ ice maker with bin can produce 1,196 pounds of full-cube ice. Each cube measures 0.875 inch by 0.875 inch by 0.875 inch and melts slowly, but since it is so large, it will not cool liquids as quickly as smaller ice types.An acoustical probe measures ice thickness, monitoring consistency between cycles. Some interior components are removable to facilitate cleaning, and integral parts are made with an antimicrobial agent that slows bacteria growth.

The Manitowoc Ice IDT-1200A/D-570 ice machine with bin has a 532-pound storage capacity. Its bin liner is made of polyurethane, while its exterior is constructed of stainless steel with a clear coating that resists corrosion. Foam insulation in the bin door prevents ice from melting quickly. Grips in the door’s center, right side, and left side enable opening from any angle. An ice scoop with a 5.3-pound capacity and guards that eliminate contact between hands and ice is included.

Ice Maker Details

• Part of the Indigo NXT series
• 1,196-lb. daily ice production capacity
• 950-lb. AHRI-certified daily ice production capacity
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Acoustical ice sensing probe measures ice thickness to verify consistency
• Programmable ice production can be based on volume or time of day
• easyTouch® display has information on service, energy, and menu selections
• 24-hr. preventive maintenance with diagnostic feedback
• Hinged, swing-out food zone door provides convenient access to the components
• Removable parts aid in cleanup
• AlphaSan® antimicrobial protection minimizes bacteria growth
• DuraTech™ clear coating over the stainless steel exterior is rust proof
• Air-cooled motor
• Uses R410A refrigerant
• 16,200 average BTU; 19,100 peak BTU
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Product Features

Bin Details

• 532-lb. application capacity
• 17.9-cu.-ft. AHRI-certified capacity
• Foam-insulated door retains cold air to slow melting ice
• Side door grips enable opening from various angles
• Self-latching door design stays open when scooping
• 5.3-lb. ice scoop capacity
• Built-in thumb and knuckle guard in the scoop shields ice from hands
• Blue polyurethane bin liner
• DuraTech exterior

Dimensions and Utilities

• Ice Maker
  • 30 in. W x 24.5 in. D x 29.5 in. H
  • 14.2 A, 4.8 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 30 in. W x 34 in. D x 50 in. H

*Free shipping on Manitowoc Ice IDT1200A/D570 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 29-1/2"H, production capacity up to 1196 lb/24 hours 70°/50° (950 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE

Ice Bin, 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 532 lbs. application capacity, AHRI certified 17.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces full-cube ice ideal for soft drinks, bagging, bulk cooling, and filling coolers.

Also called self-contained, this compressor type uses air for cooling
