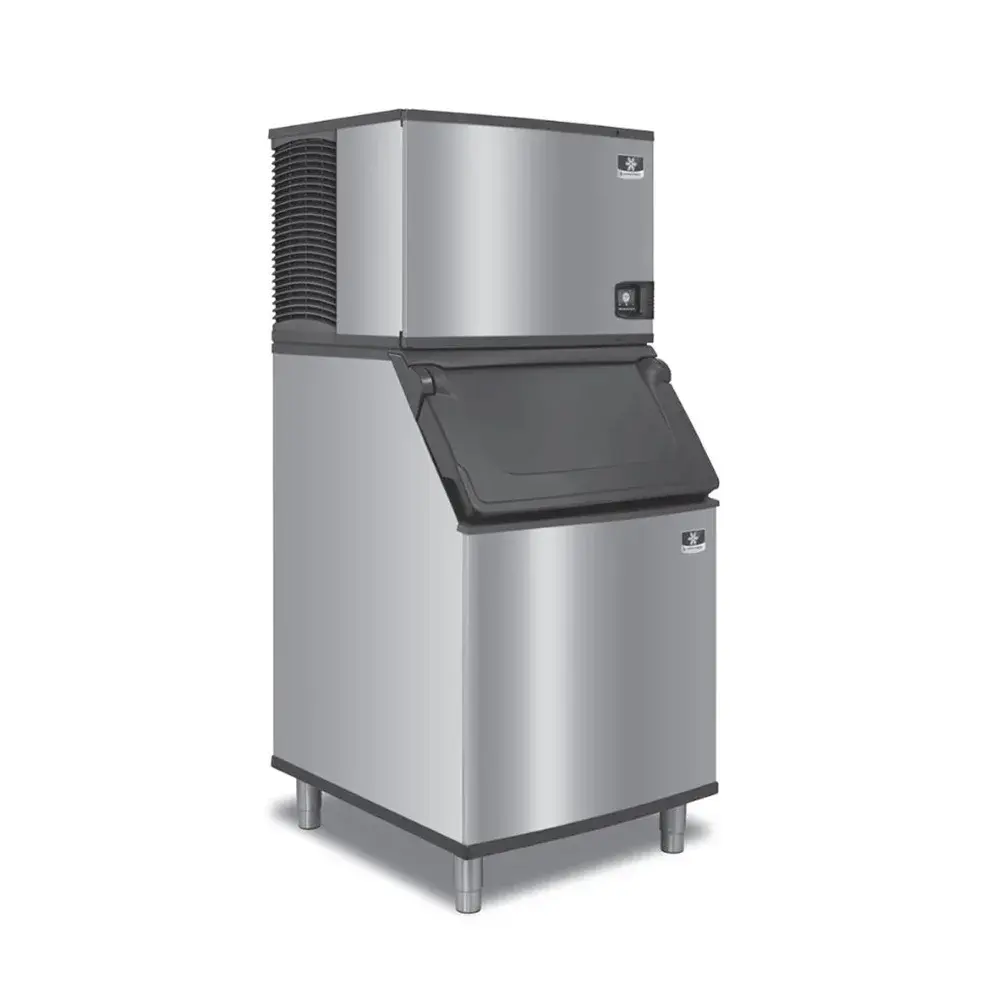

Manitowoc Ice IDT0750W/D570 703 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 532 lb Storage, Water Cooled, 208-230

The Manitowoc Ice IDT0750W/D570 ice maker and bin can produce 703 pounds of full-cube dice ice daily in ideal conditions. An easyTouch® display controls this unit, enabling users to click on icons and view and operate the various settings. When the self-diagnostics find a potential problem, alerts will appear with maintenance recommendations.

The Manitowoc Ice D570 ice bin can hold 532 pounds of ice, storing it for peak business hours. So users can comfortably reach down into the bin, the lid is angled 53 degrees, while a self-latching mechanism holds the bin door open. To keep ice pure, the ice scoop has a built-in guard around the knuckle and thumb, and so the scoop's handle doesn't contaminate ice, a scoop holder is integrated into the bin.

When cleaning the Manitowoc Ice IDT0750W ice machine, operators can access the foodzone through the front, and once the front panel is swung open, they can remove foodzone components. Several of these parts are built with AlphaSan®, an antimicrobial agent that slows mold growth. The exterior of both the ice maker and ice bin is covered in a clear DuraTech™ coat that is fingerprint resistant.

Ice Machine Details

• Part of the Indigo NXT™ series
• Produces dice-style ice
• 703-lb. maximum daily ice production
• 600-lb. AHRI-certified daily ice production
• Ice production can be programmed based on time of day
• Dice ice size: 7/8 in. x 7/8 in. x 7/8 in.
• easyTouch display includes intuitive, icon-based navigation
• Foodzone is accessible through hinged door on front
• Removable curtain, water trough, distribution tube, and sensing probe
• AlphaSan antimicrobial protection in key components
• System continuously monitors itself for problems and provides diagnostic feedback
• Sensing probe improves ice consistency
• DuraTech exterior resists corrosion
• Water-cooled compressor minimizes noise
• R410A refrigerant
• 12,800 average BTU; 13,700 peak BTU

Bin Details

• 532-lb. application capacity
• AHRI-certified 17.9-cu.-ft. interior
• DuraTech exterior
• Door stays open for convenient scooping
• Ice scoop features guard over thumb and knuckle

Ideal Operating Conditions

• Ambient temperature: 40-110 degrees F
• Incoming water temperature: 40-90 degrees F
• Water pressure: 20-80 PSI
• Required clearances: 8 in. on top, 8 in. on sides, 5 in. on back

Dimensions & Utilities

• Ice machine: 30 in. W x 24 in. D x 211/2 in. H
• Ice bin: 30 in. W x 34 in. D x 50 in. H
• Overall: 30 in. W x 34 in. D x 711/2 in. H
• 7.9 A, 4.07 kW
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IDT0750W/D570 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 703 lb./24 hours at 70°/50° (600 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE

Ice Bin, 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 532 lbs. application capacity, AHRI certified 17.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces full-cube ice ideal for soft drinks, bagging, bulk cooling, and filling coolers.

This unit requires a second supply of water for cooling
