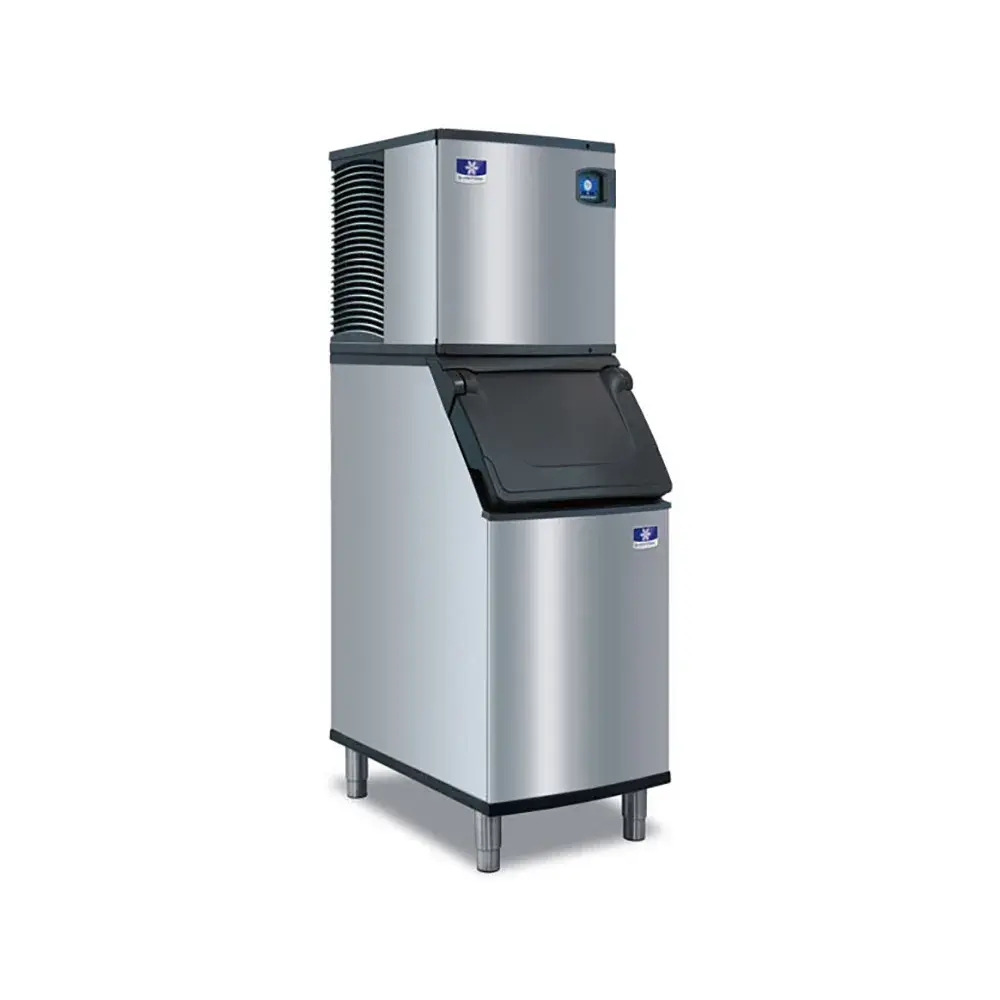

Manitowoc Ice IDT0620A/D420 560 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 383 lb Storage, Air Cooled, 115v

The Manitowoc Ice IDT0620A/D420 Indigo NXT™ ice maker and bin combo makes dice ice. These cubes measure 7⁄8 inch by 7⁄8 inch by 7⁄8 inch, and to ensure they are the correct size, a probe checks their thickness. They work great for bagged ice or for cooling drinks, and because they melt more slowly than other ice types, they water down beverages less.

To help keep ice tasting pure, this Manitowoc Ice IDT0620A ice machine features antimicrobial-protected components in its food zone. This area is constantly in contact with water, so it contains several removable parts that enable staff members to thoroughly clean out bacteria and mold. In the Manitowoc Ice D420 ice bin, ice is saved until it is needed. The polyethylene liner is sanitary and simple to clean, and to remove moisture from the interior, a recessed drain is built in. An included holder provides a safe place for the ice scoop, holding it out of the ice to prevent contamination. Additionally, the scoop has guards over the handle so germs from the user’s hands do not taint the ice.

Ice Machine Details

• Part of the Indigo NXT series
• 560-lb. daily ice production
• 450-lb. AHRI-certified daily ice production
• Icon-based easyTouch® control panel
• Users can program production based on time or volume
• Ice is measured by a probe before dropping into the bin
• Full-size cubes are larger than other options and melt more slowly
• Cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
• Foodzone has removable parts for cleanup
• AlphaSan antimicrobial agent prevents bacteria growth in components
• 24-hr. feedback provides maintenance alerts and diagnostic information
• DuraTech exterior coating adds corrosion and smudge resistance
• Cools with R410A refrigerant
• Air-cooled condensing unit does not require an additional water line
• 5,400 average BTU; 6,300 peak BTU

Product Features

Ice Bin Details

• 383-lb. ice storage capacity
• 12.9-cu.-ft. AHRI-certified ice storage capacity
• 5.3-lb. scoop capacity
• Holder keeps scoop out of the ice to prevent contamination
• Built-in side grips on door facilitate opening
• Door insulation slows melting of ice
• Stay-open latch keeps door out of the way when scooping
• Ice scoop has a retaining lip so ice does not fall out
• Polyurethane interior and DuraTech exterior

Ideal Operating Conditions

• Clearances: 5 in. at rear, 12 in. at sides and top
• Incoming water pressure: 20-80 PSI
• Water temperature: 40-90 degrees F
• Ambient air temperature: 40-110 degrees F

Dimensions & Utilities

• Ice machine: 22 in. W x 24.5 in. D x 21.5 in. H
• Bin: 22 in. W x 34 in. D x 50 in. H
• 12.2 A, 5.18 kW
• 115 V/60 Hz/1 ph

*Free shipping on Manitowoc Ice IDT0620A/D420 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 560 lb./24 hours at 70°/50° (450 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Bin, 22"W, 34"D x 50"H, with side-hinged front-opening door, side grips, 383 lbs. application capacity, AHRI certified 12.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces full-cube ice ideal for soft drinks, bagging, bulk cooling, and filling coolers.

Also called self-contained, this compressor type uses air for cooling
