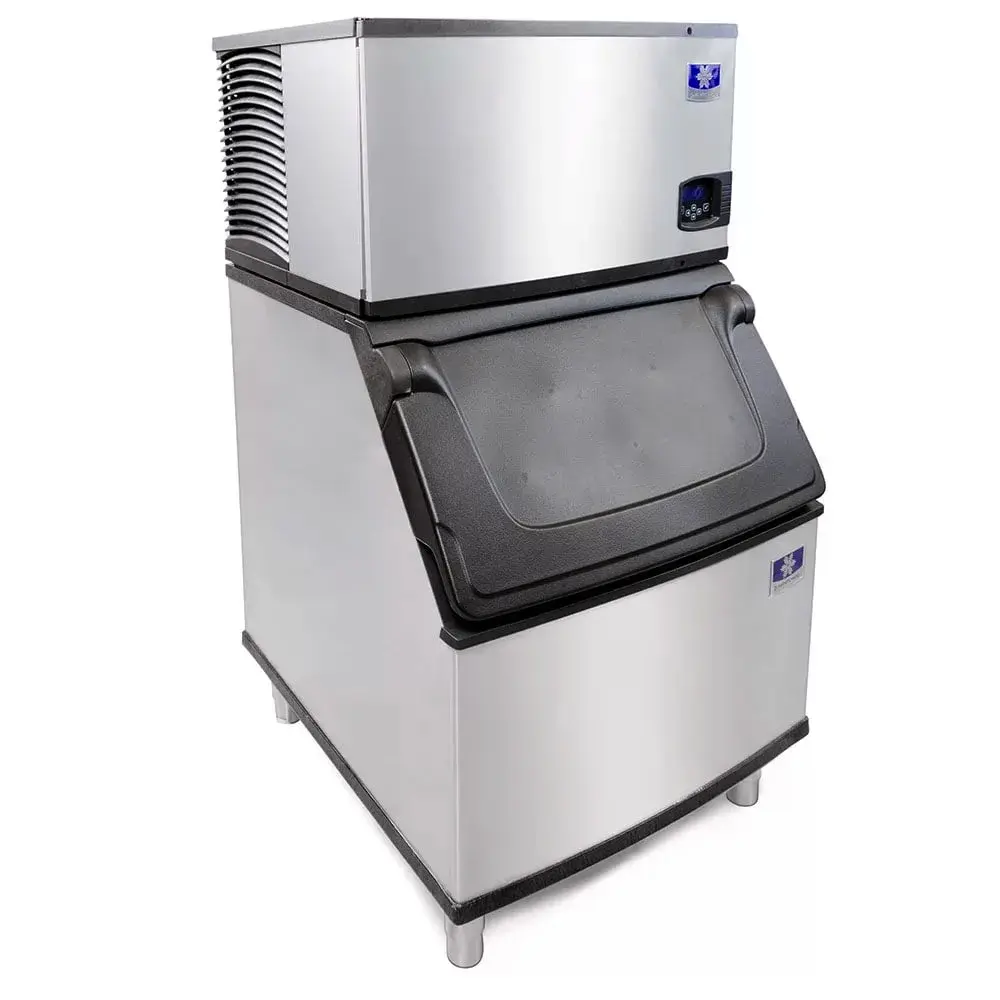

Manitowoc Ice IDT0450A/D400 470 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 365 lb Storage, Air Cooled, 115v

The Manitowoc Ice IDT0450A/D400 Indigo NXT™ ice maker with bin can make 470 pounds of dice ice every 24 hours. A touchscreen display ensures straightforward operation when setting the desired volume or limiting production to certain times of day. Each full-size cube measures 7⁄8 inch on each side, and an ice-sensing probe checks the thickness to ensure consistency and proper operation despite discrepancies in water quality.

The Manitowoc Ice IDT0450A ice machine continuously monitors itself, providing maintenance alerts and issue diagnostics as needed. If the unit needs to be cleaned, operators can open the front panel and remove parts from the food zone. Doing this enables thorough cleaning around components and prevents ice from tasting dirty.

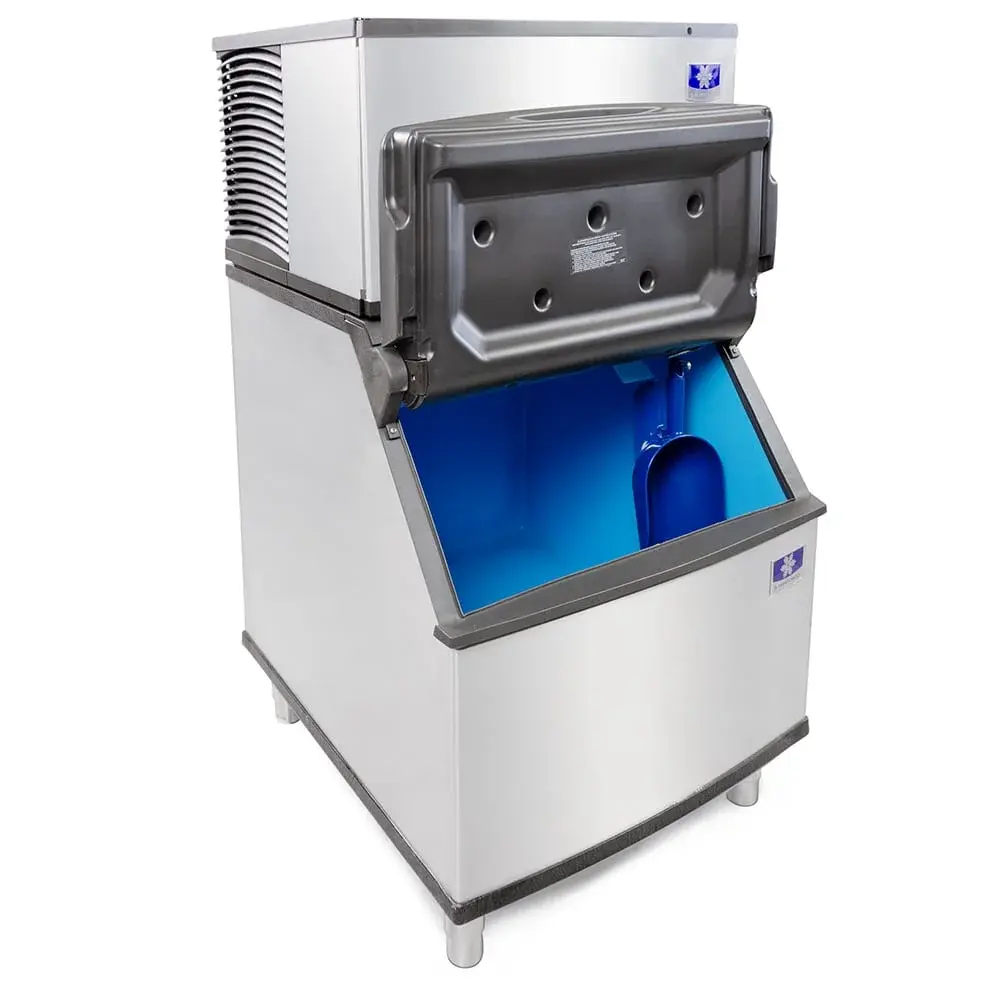

As ice is made, it falls into the Manitowoc Ice D400 ice bin, where it is preserved until needed. The bin has insulation in its sides and door to block out heat. Its door features built-in side grips, enabling operators to open it from the side, and its latching mechanism keeps it open for full access to ice. This unit comes with a large, 5.3-pound-capacity ice scoop. Guards on the handle prevent skin from touching and contaminating ice in the bin.

Ice Maker Details

• Part of the Indigo NXT series
• 470-lb. maximum daily ice production
• 358-lb. AHRI-certified daily ice production
• Production is programmable by volume or time of day
• Full-size ice melts more slowly than half-size, nugget, or flake ice
• Dice ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
• Acoustical sensing probe ensures consistent ice size by measuring thickness
• easyTouch® display with touchscreen controls
• 24-hr. maintenance alerts and diagnostics help maintain proper operation
• Hinged, swing-out front door provides access to food zone
• Removable curtain, distribution tube, water probe, water pump, and water trough
• AlphaSan® antimicrobial technology slows the growth of bacteria
• DuraTech exterior hides smudging and resists corrosion
• Air-cooled condensing unit
• Operates with R410A refrigerant
• 3,800 average BTU; 6,000 peak BTU

Product Features

Bin Details

• 365-lb. storage capacity
• 12.3-cu.-ft. AHRI-certified storage capacity
• Door uses foam insulation to retain cold air
• Grips on the door enable opening from any side
• Latching door stays open when scooping
• 5.3-lb. ice scoop capacity
• Scoop has a thumb and knuckle guard that prevents contamination
• Polyurethane bin liner
• DuraTech exterior

Ideal Operating Conditions

• Clearances: 12 in. on top, 12 in. on sides, 5 in. on back
• Surrounding air temperature: 40-110 degrees F
• Incoming water temperature: 40-90 degrees F
• Water pressure: 20-80 PSI

Dimensions & Utilities

• Bin: 30 in. W x 34 in. D x 38 in. H
• Ice maker: 30 in. W x 24.5 in. D x 21.5 in. H
• 11.9 A, 5.63 kW
• 115 V/60 Hz/1 ph

*Free shipping on Manitowoc Ice IDT0450A/D400 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 470 lb./24 hours at 70°/50° (358 lb. AHRI certified tat 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Bin, 30"W x 34"D x 38"H, with side-hinged front-opening door, side grips, 365 lbs. application capacity, AHRI certified 12.3 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces full-cube ice ideal for soft drinks, bagging, bulk cooling, and filling coolers.

Also called self-contained, this compressor type uses air for cooling
