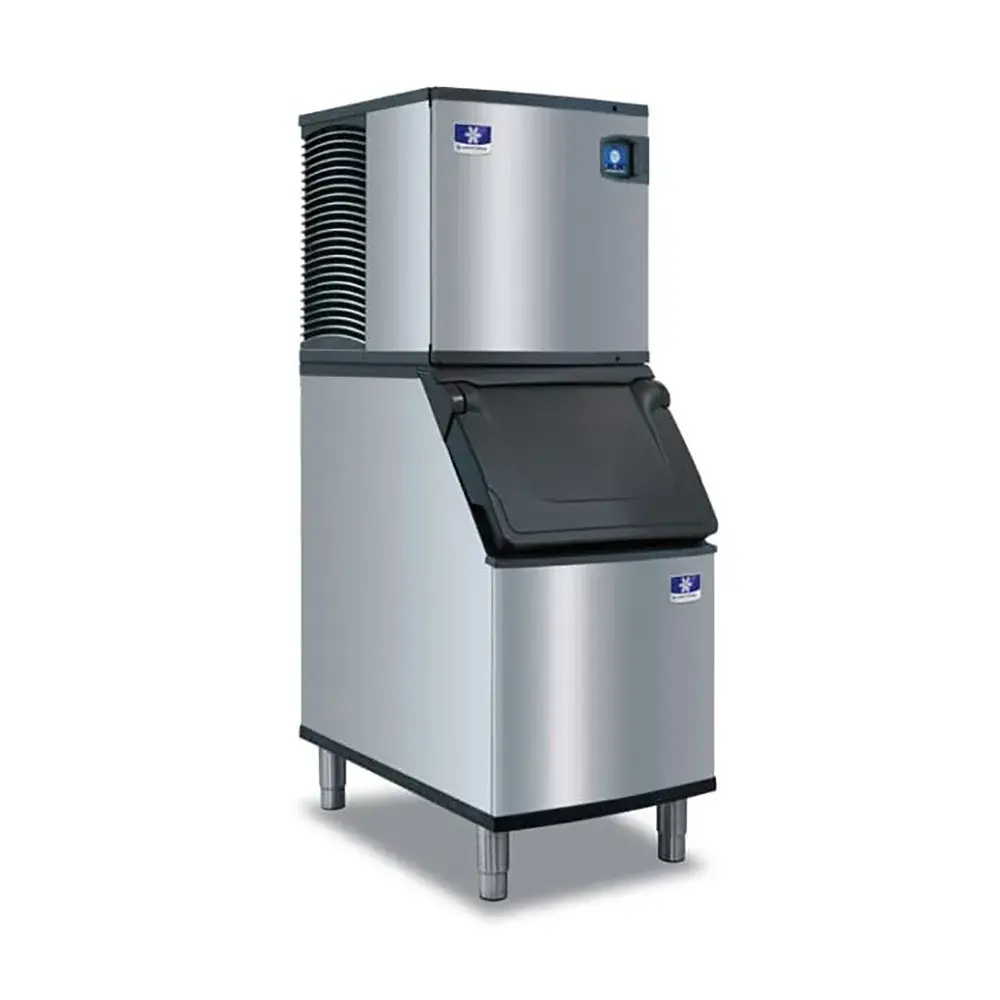

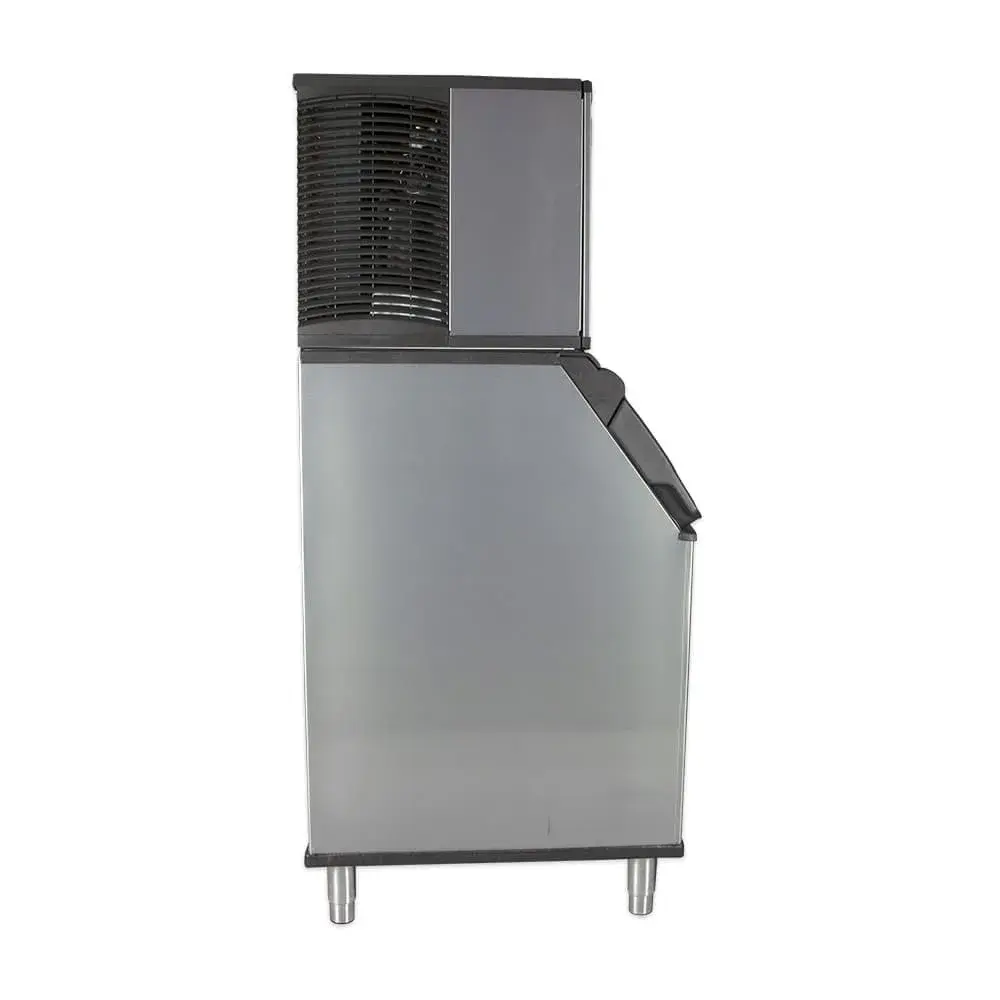

Manitowoc Ice IDT0420W/D420 454 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 383 lb Storage, Water Cooled, 115v

Manitowoc Ice IDT0420W/D420 Description

The Manitowoc Ice IDT-0420W/D-420 Indigo NXT™ ice maker with bin produces as much as 454 pounds in one day. It makes full-cube ice, which measures 0.875 inch by 0.875 inch by 0.875 inch and is excellent for drinks since it melts slowly. Each cycle is monitored by an acoustical probe that checks ice thickness before it drops into the bin. Operators can check service and energy information on the touchscreen control panel.

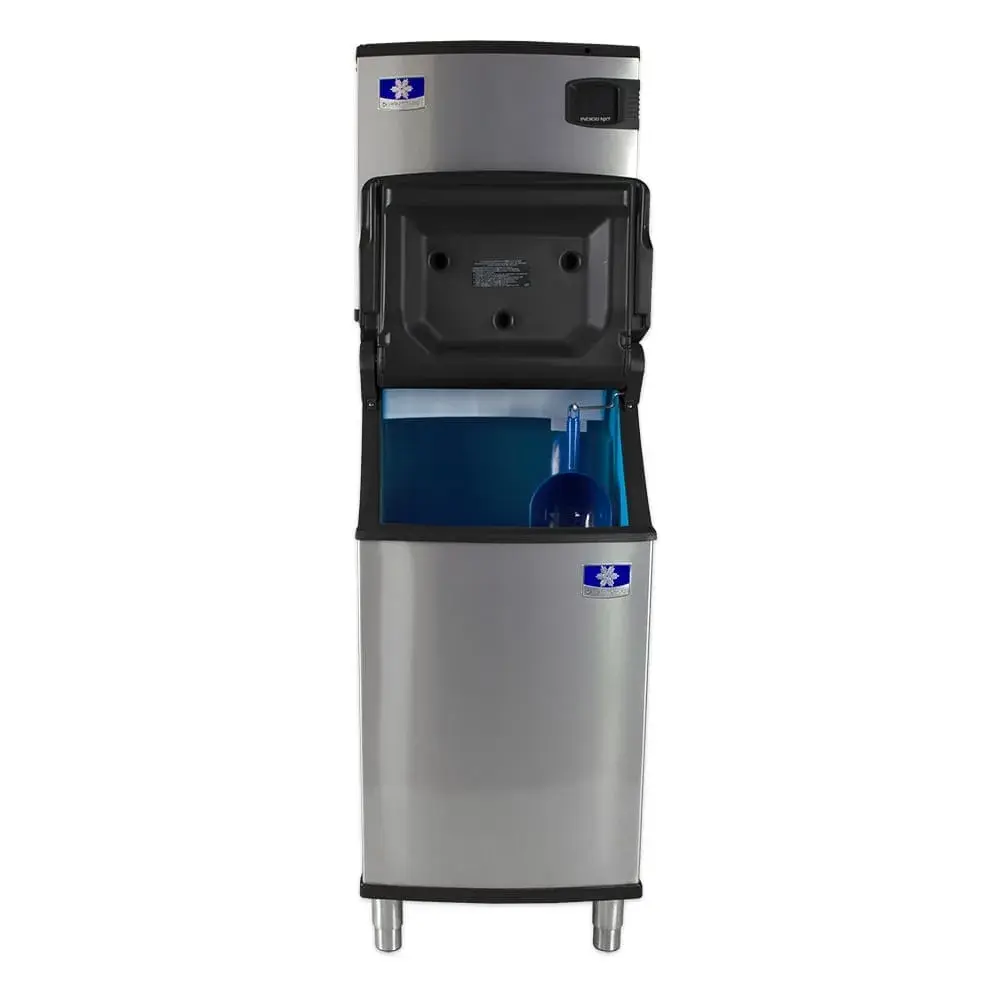

This Manitowoc Ice IDT-0420W/D-420 ice maker with bin has a 383-pound storage capacity and a blue polyurethane liner. Insulated with foam, the bin door traps cold air to slow melting ice. Side grips enable the door to open from any direction and stay open when employees are scooping ice. A scoop with a 5.3-pound capacity and hand guards that eliminate contact with ice is included.

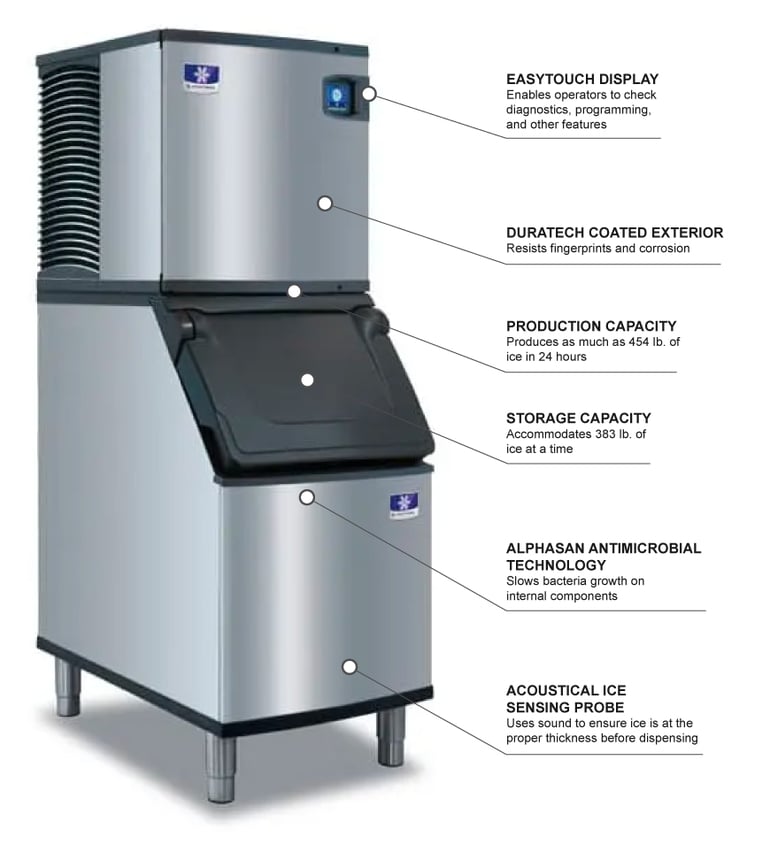

Ice Maker Details

• Part of the Indigo NXT series
• 454-lb. daily ice production capacity
• 400-lb. AHRI-certified daily ice production capacity
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Programmable ice production based on time of operation or volume
• Acoustical sensing probe measures ice thickness to check for consistency
• easyTouch® display provides energy and service information
• 24-hr. preventive maintenance with diagnostic feedback
• Swing-out, hinged door ensures the food zone components are accessible
• Removable curtain, distribution tube, water trough, and sensing probes
• AlphaSan® antimicrobial agent helps slow bacteria growth
• Stainless steel exterior has a corrosion-resistant DuraTech™ clear coat
• Water-cooled condensing unit
• Uses R410A refrigerant
• 3,800 average BTU; 6,000 peak BTU
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Product Features

Bin Details

• 383-lb. application capacity
• 12.9-cu.-ft. AHRI-certified capacity
• Blue polyurethane bin liner
• Insulation in the door slows melting
• Door's side grips support opening from any angle
• Self-latching door design for scooping
• 5.3-lb. capacity in the ice scoop
• Built-in knuckle and thumb guard in the scoop prevents contamination
• DuraTech exterior

Dimensions and Utilities

• Ice Maker
  • 22 in. W x 24.5 in. D x 21.5 in. H
  • 10.6 A, 4.28 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 22 in. W x 34 in. D x 50 in. H

Perfect for bars, cafes, and hotels requiring ice production and storage in a single compact footprint.

*Free shipping on Manitowoc Ice IDT0420W/D420 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 454 lb./24 hours at 70°/50° (400 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE

Ice Bin, 22"W, 34"D x 50"H, with side-hinged front-opening door, side grips, 383 lbs. application capacity, AHRI certified 12.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces full-cube ice ideal for soft drinks, bagging, bulk cooling, and filling coolers.

This unit requires a second supply of water for cooling
