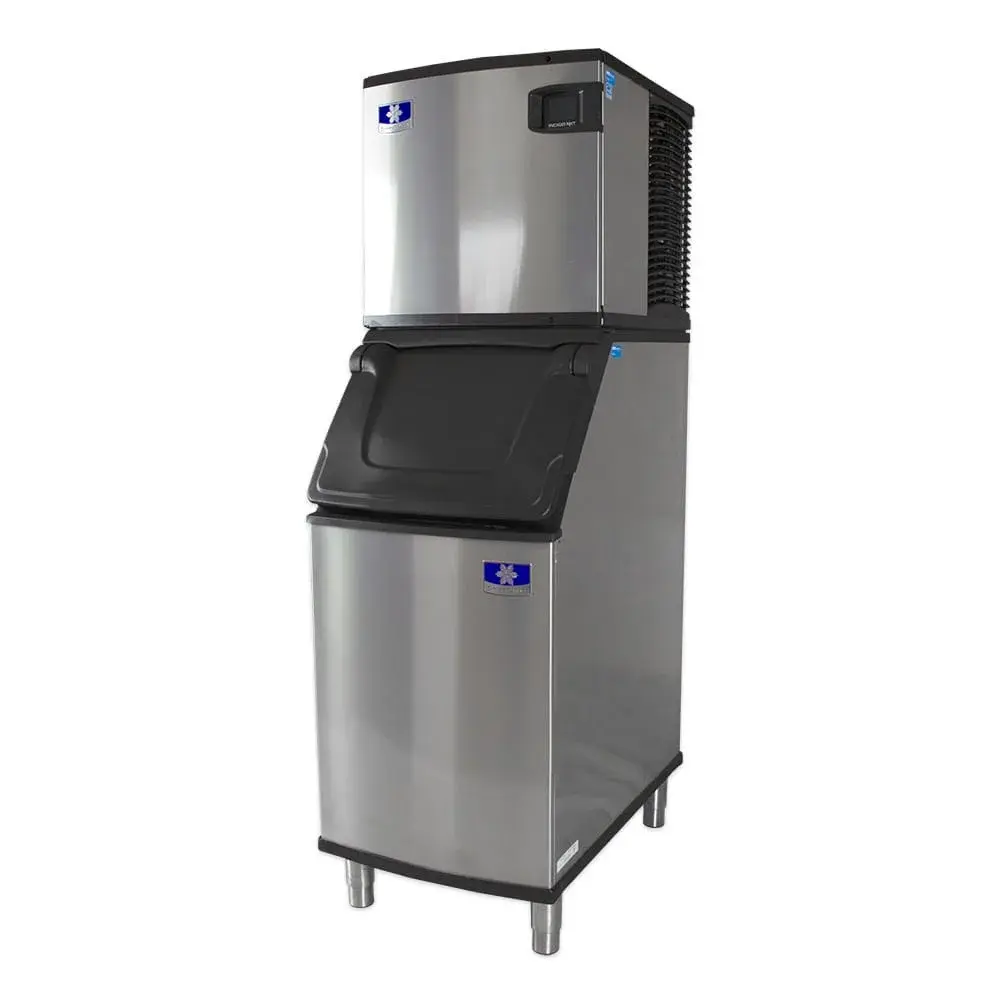

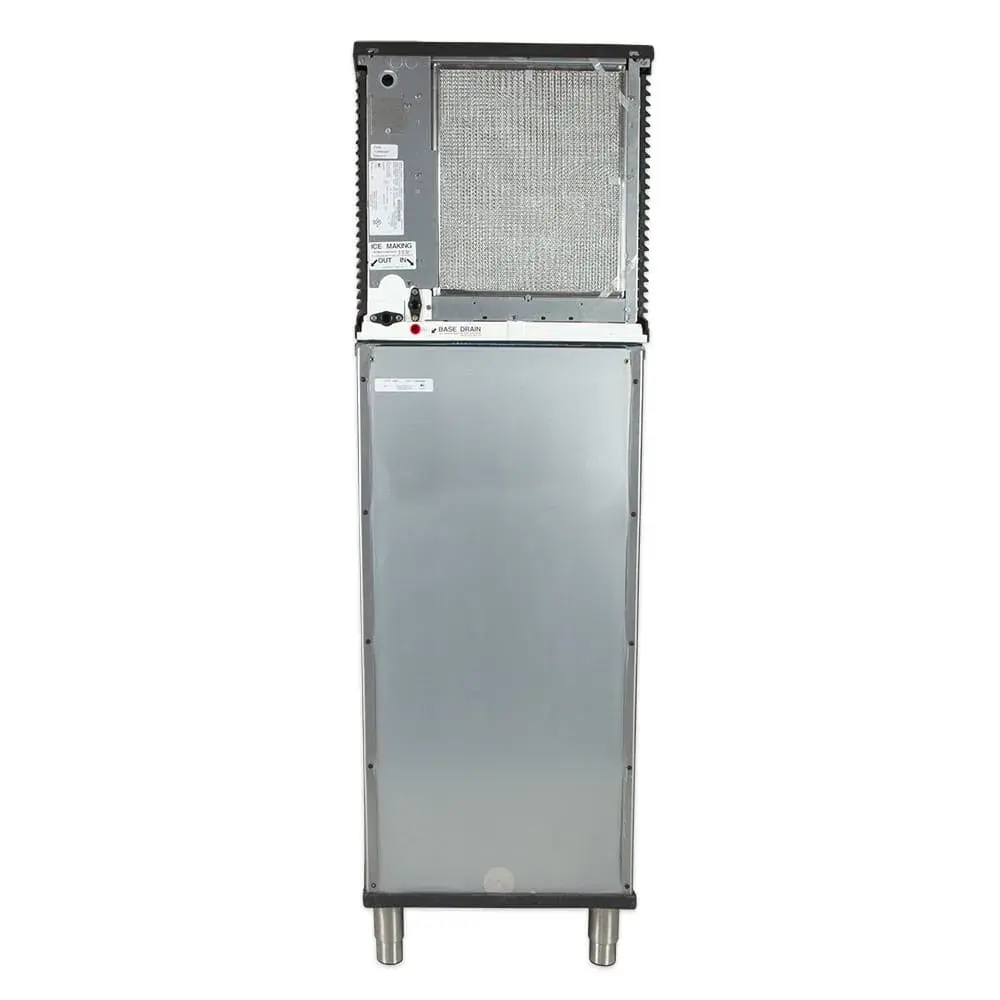

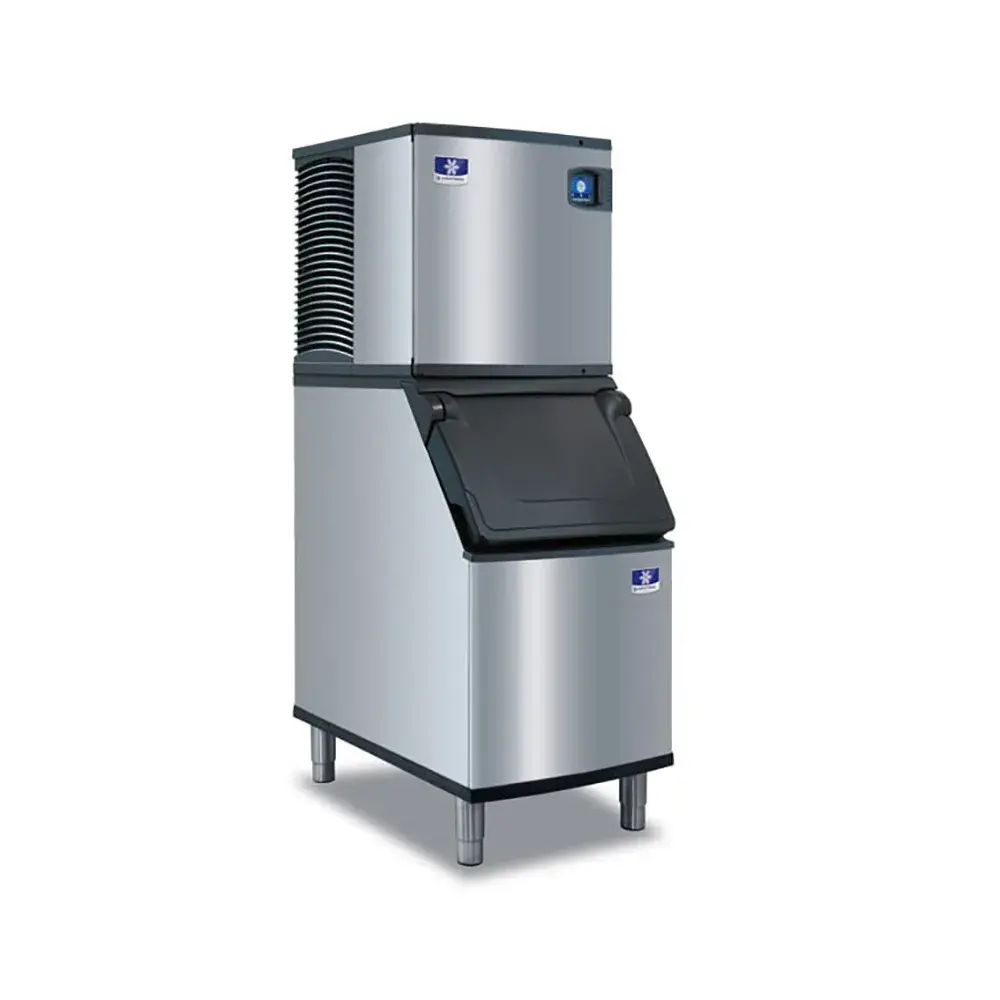

Manitowoc Ice IDT0420A/D320 470 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 264 lb Storage, Air Cooled, 115v

The Manitowoc IDT-0420A-161/D-320 ice maker and bin can produce 470 pounds of ice a day and can store 264 pounds of ice. With its easyTouch® display screen, the user can monitor the unit’s operating status. Users can program the amount of ice produced by the self-contained air-cooled refrigeration system based on time and the amount of ice needed. An acoustical sensing probe measures the thickness of the ice to ensure identical cube sizes. The hinged front door provides access to the internal components, which can be removed for maintenance and cleaning.

The Manitowoc IDT-0420A-161/D-320 Indigo NXT™ ice maker and bin has a DuraTech™ exterior that protects the surface from corrosion and dirt. A clear-coat finish on the ice machine further protects the exterior by resisting fingerprints and streaks. The ice bin’s insulated door reduces sweat buildup and keeps ice cold. While scooping ice, the bin door can be propped open with its self-latch. Side grips in the bin door enable the user to open it from nearly any position. An ice scoop with a 5.3-pound capacity is included with a built-in holder.

Ice Machine Head Details

• Part of the Indigo NXT series
• 470-lb. daily ice production
• 375-lb. AHRI-certified daily ice production
• Ice size: 0.875 in. x 0.875 in. x 0.875 in.
• DuraTech exterior prevents corrosion as its clear-coat finish resists dirt and smudges
• Ice production can be programmed according to amount or time
• Acoustical sensing probe measures the ice’s thickness to ensure identical cube sizes
• Self-contained air-cooled refrigeration system
• easyTouch display informs the user of the unit’s operating status
• Internal components are removable
• Daily diagnostic feedback and preventive maintenance
• Hinged front door opens for cleaning and servicing
• Uses R410A refrigerant
• Required incoming water pressure: 20-80 PSI
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• 6,000 BTU

Product Features

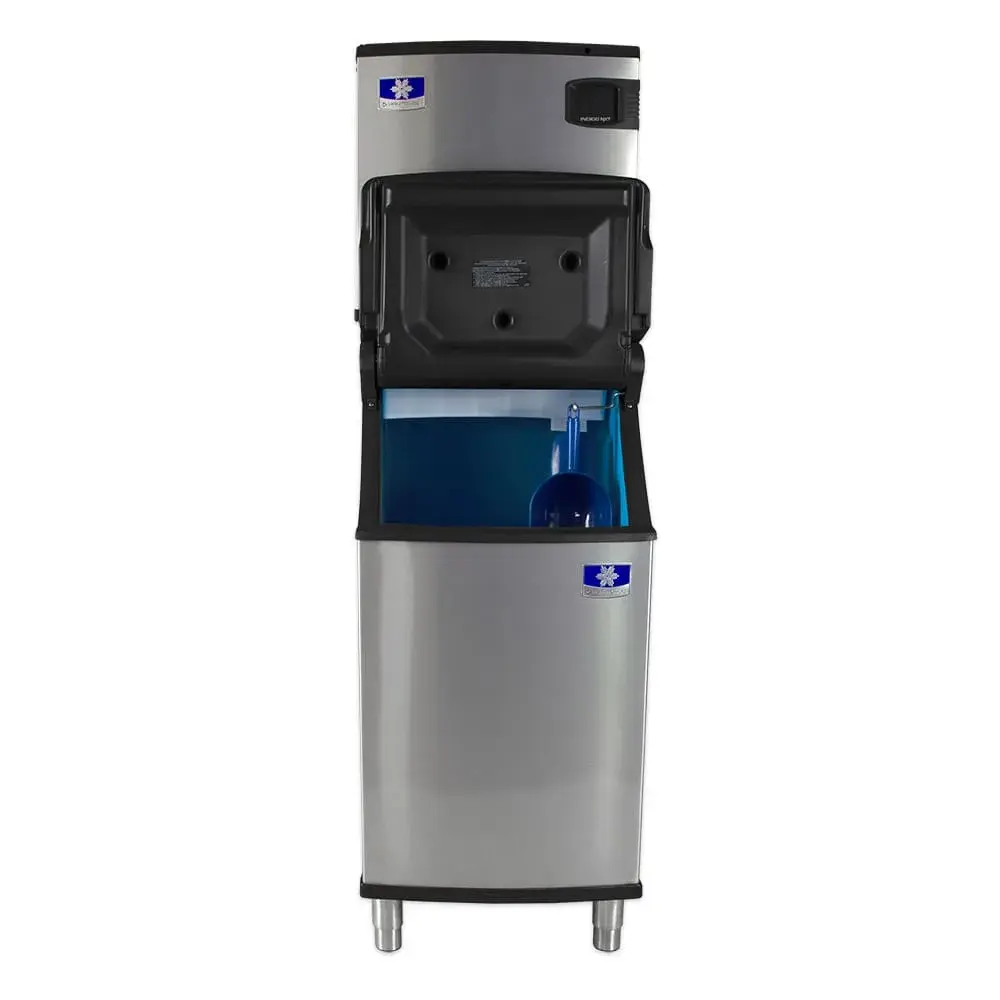

Ice Bin Details

• 264-lb. ice storage capacity
• 210-lb. AHRI-certified ice storage capacity
• Ice scoop with a built-in holder
• Ice scoop capacity: 5.3 lbs.
• Door can be propped open with the self-latch while scooping ice
• Insulated door reduces sweat
• Side grips are built in so the user can lift the bin door from nearly any position
• Polyurethane liner
• Accessible door is angled at 53 degrees

Dimensions & Utilities

• Ice machine head: 22 in. W x 24.5 in. D x 21.5 in. H
• Ice bin: 22 in. W x 34 in. D x 38 in. H
• 15 A, 5.6 kW
• 115 V/60 Hz/1 ph

*Free shipping on Manitowoc Ice IDT0420A/D320 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 470 lb./24 hours at 70°/50° (375 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Bin, 22"W x 34"D x 38"H, with side-hinged front-opening door, side grips, 264 lbs. application capacity, AHRI certified 8.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces full-cube ice ideal for soft drinks, bagging, bulk cooling, and filling coolers.

Also called self-contained, this compressor type uses air for cooling
