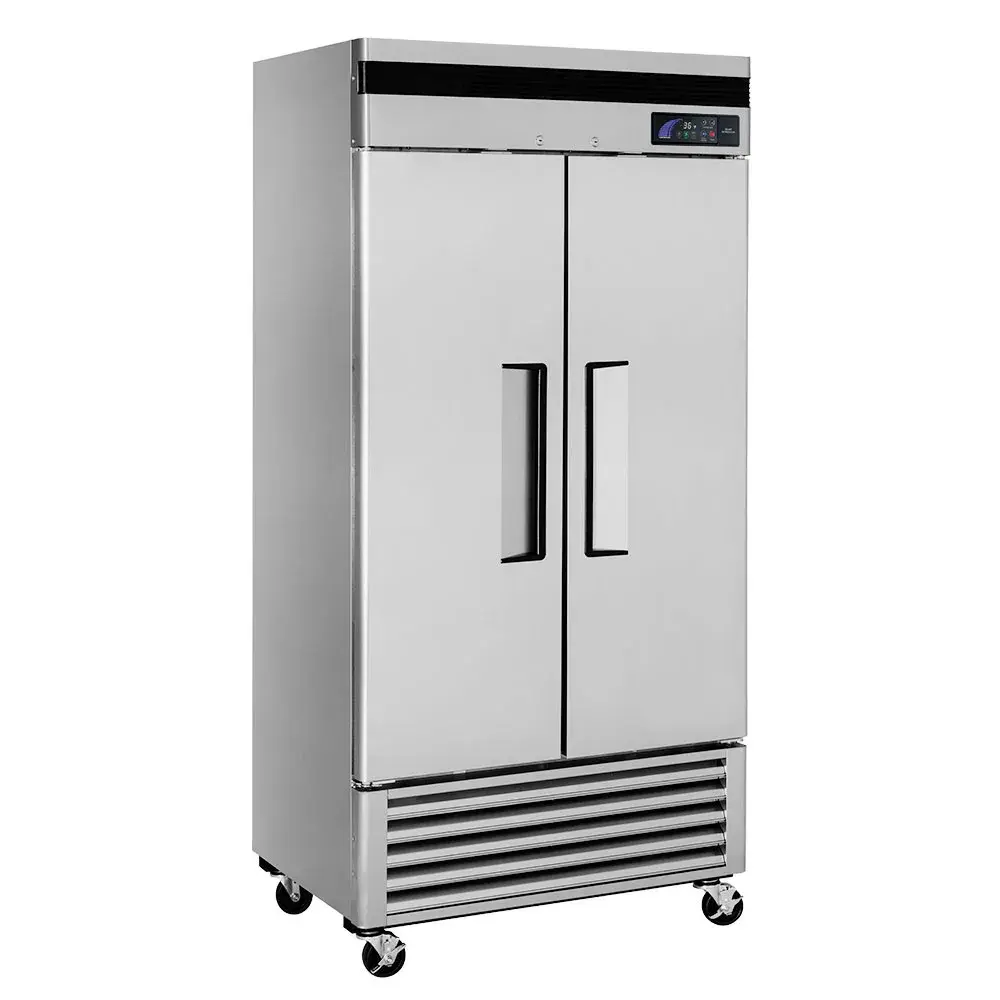

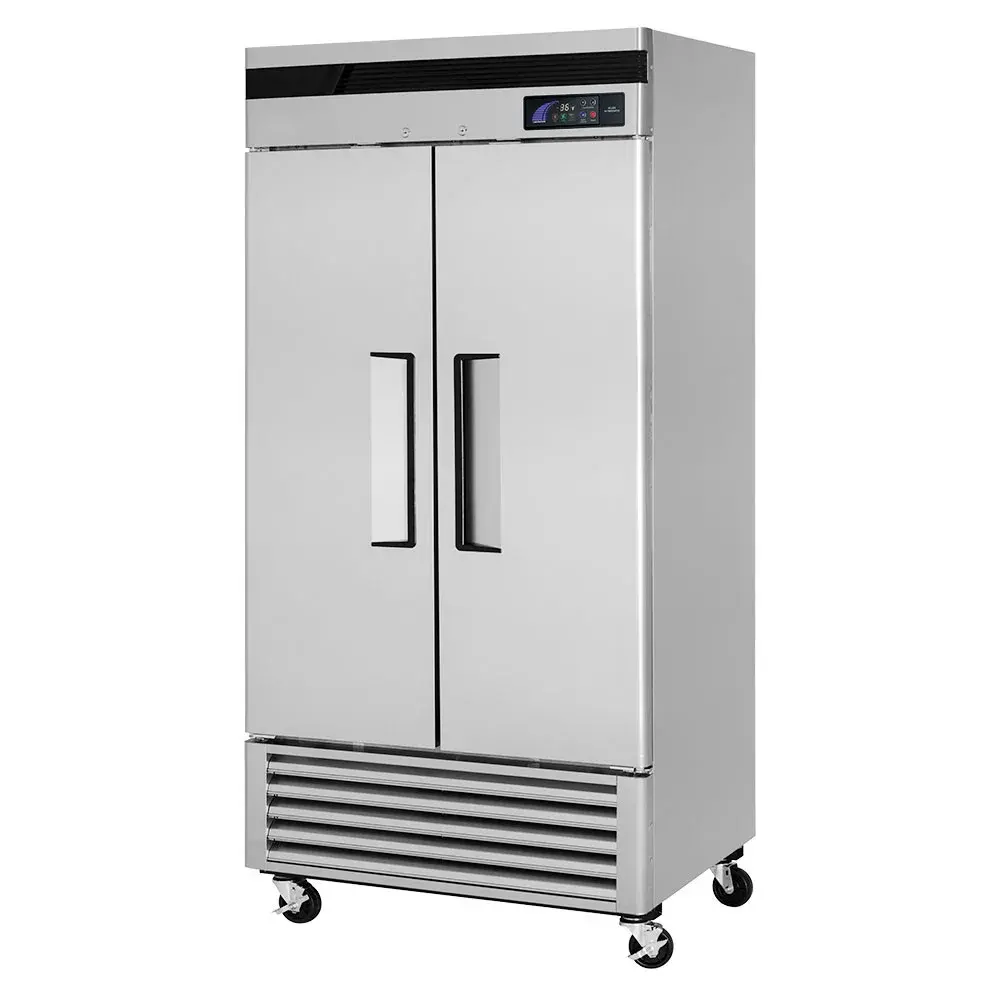

Turbo Air TSR-35SD-N 39 1/2" Two Section Reach In Refrigerator, (2) Left/Right Hinge Solid Doors, 115v KaTom #: 083-TSR35SDN • MPN: TSR-35SD-N6

The Turbo Air TSR-35SD-N two-section reach-in refrigerator has a stainless and galvanized steel exterior that is heavy duty and strong. The stainless steel interior is easy to clean and resists dents and scratches. Its six stainless steel shelves resist corrosion and make cleanup a breeze when product spills. Two pressure relief doors eliminate vacuum pressure, so they can be opened without issue. With their self-closing design, the doors help keep cold air in the cabinet.

Since this unit has a self-contained, bottom-mounted refrigeration system, access for maintenance is simple. Temperatures are maintained by R290 hydrocarbon refrigerant, and they range from 33 to 39 degrees Fahrenheit. A digital display enables the operator to monitor temperatures. The condenser has a self-cleaning device that removes dust and debris to prevent a system failure.

To ensure the Turbo Air TSR-35SD-N two-section reach-in refrigerator is working properly, it runs self-diagnostics all day. Its early warning system alerts the operator if the diagnostics find something that could cause future issues. When a door is opened, the evaporator fan motor stops running to prevent warm air from being taken into the cabinet. If a door is not shut properly, an alarm will sound to let staff know it needs to be closed.

Product Details

• Interior and exterior are constructed of stainless steel to withstand scratches and dents
• Exterior top, back, and bottom are made of galvanized steel for strength
• 6 shelves are made of stainless steel, so they facilitate cleaning
• LED lights in the cabinet make it easy to see inside
• Pressure relief doors get rid of vacuum pressure, so the doors open easily
• Foamed-in-place polyurethane insulation keeps cold air in the cabinet
• Locks on the doors prevent unauthorized access
• 2 self-closing doors help retain cold air
• Magnetic door gaskets prevent cold air from leaking out

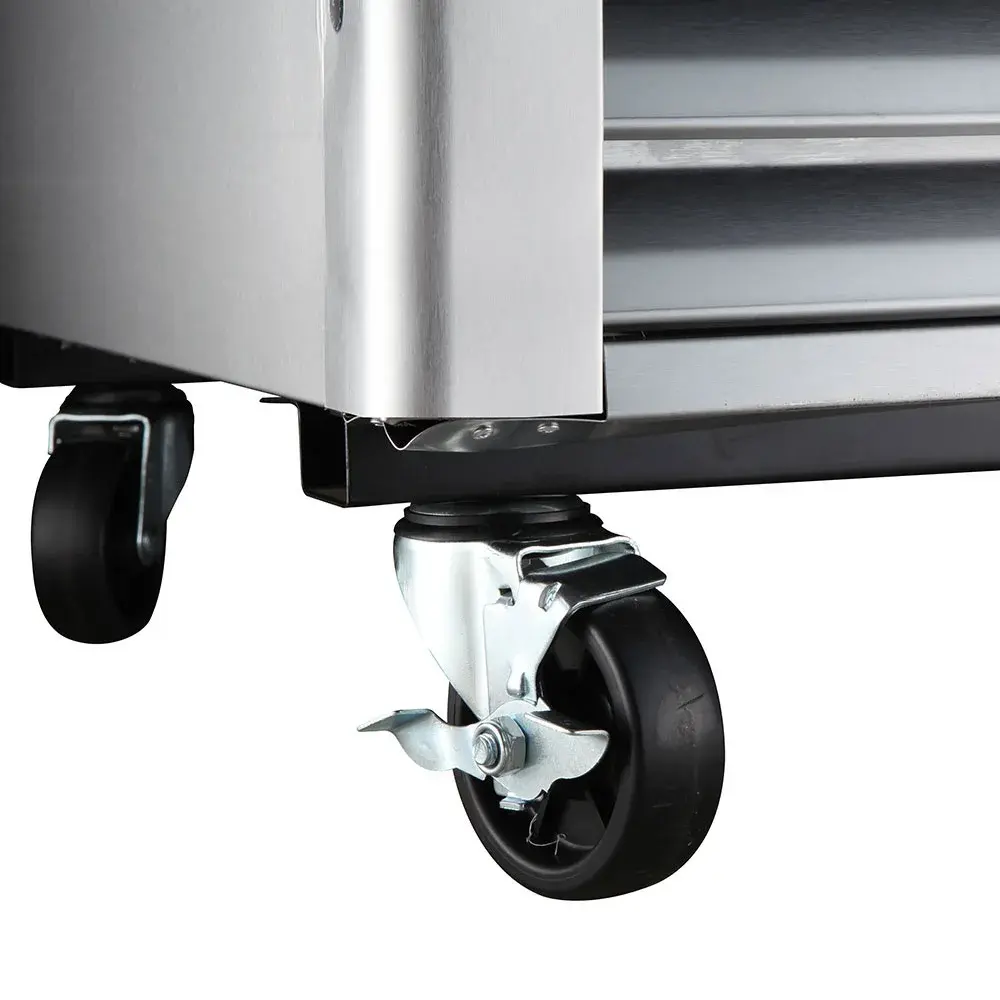

• 4-in.-dia. swivel casters make the unit easy to transport

Self-contained Refrigeration System

• Components are built together in the system for user to easily service
• Evaporator is coated to resist corrosion
• Refrigeration system is mounted on the bottom, so it is accessible for maintenance
• Temperature range: 33-38 degrees F
• Cold temperatures are maintained by R290 hydrocarbon refrigerant
• Dust and debris are removed from the condenser daily to prevent a system failure

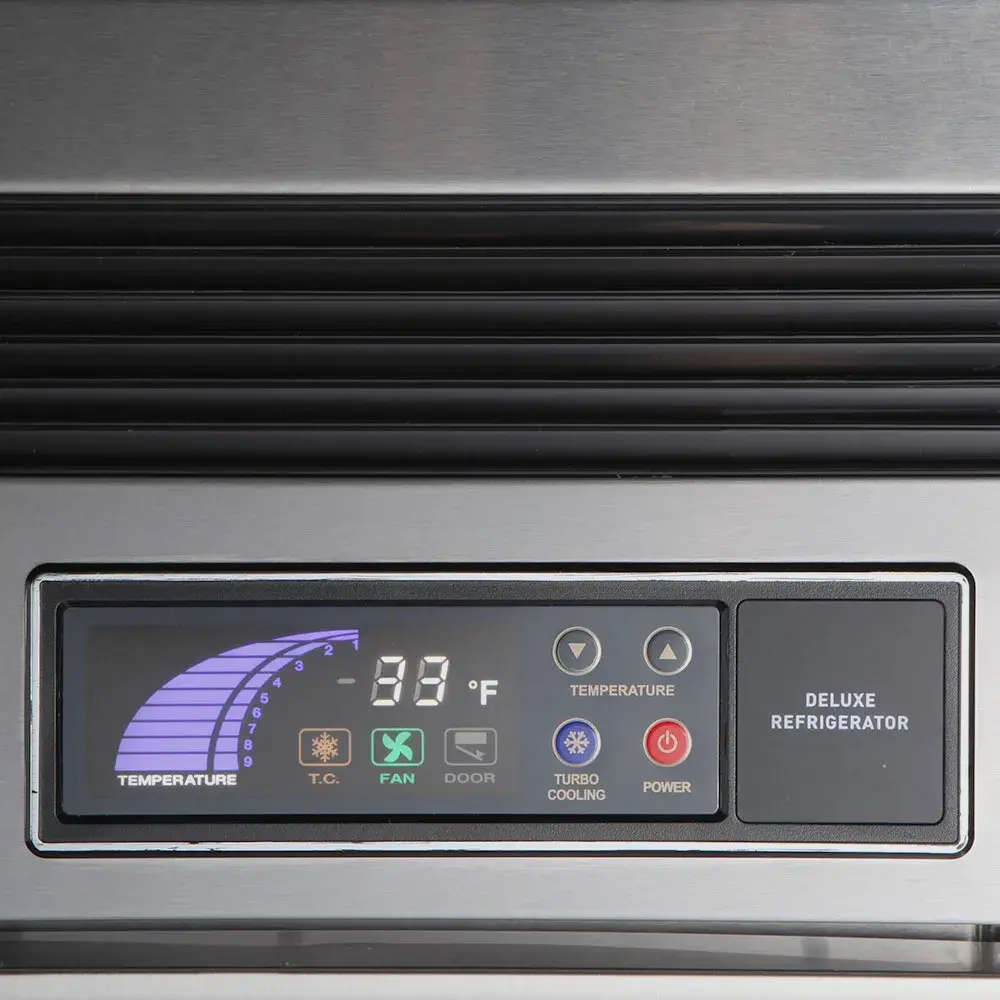

• Digital temperature control enables user to monitor internal temperature

Unique Features

• Rapid cool-down function runs the compressor continuously for up to 2 hrs. until the temperatures are back in the safe zone
• Evaporator fan motor stops running when the door is opened to prevent warm air from getting sucked into the cabinet
• Alert sounds when the doors are not shut properly to prevent food spoilage
• Early warning system lets the operator know of issues before they occur
• Self-diagnosis program interprets the function of the system

Dimensions & Utilities

• Shelves: 171⁄4 in. W x 231⁄2 in. D
• Interior: 355⁄8 in. W x 261⁄4 in. D x 60 in. H
• Overall: 391⁄2 in. W x 303⁄8 in. D x 843⁄8 in. H
• 2.8 A, 1⁄4 HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

*Free shipping on Turbo Air TSR-35SD-N within the 48 contiguous states.

From The Manufacturer

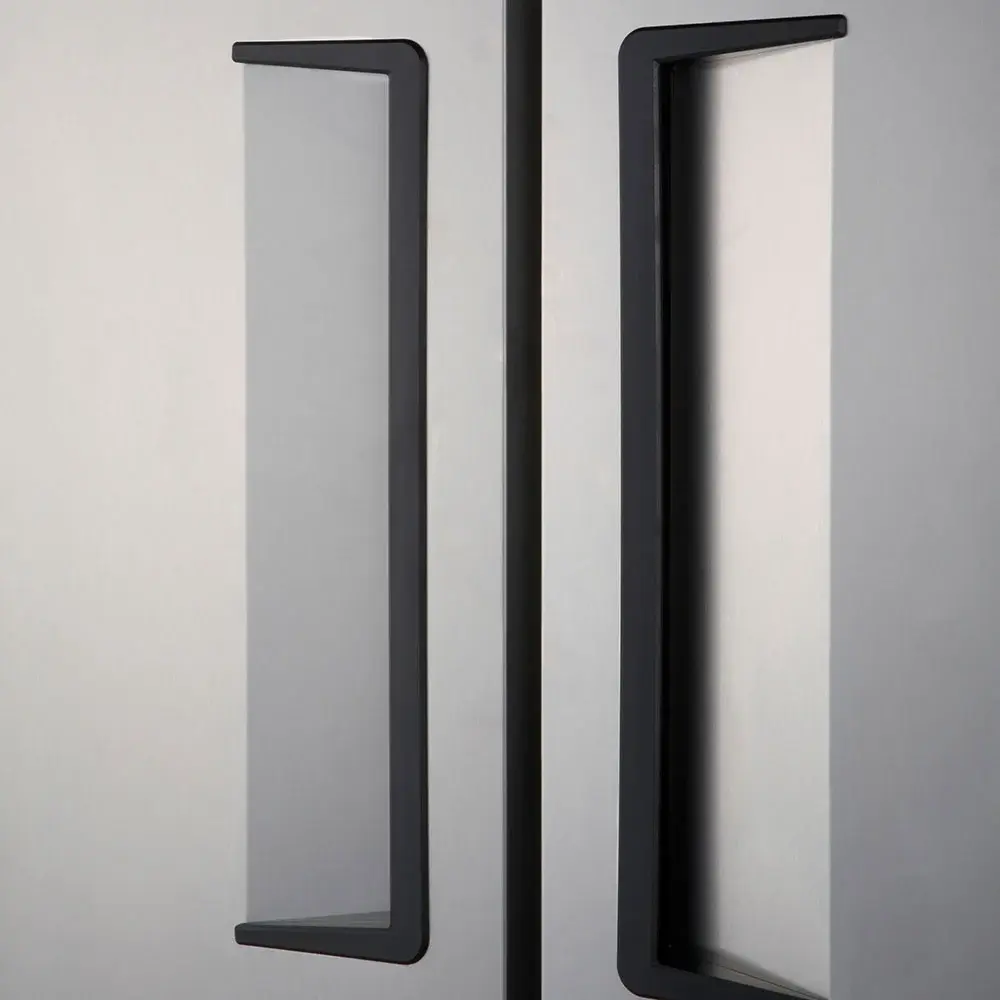

Super Deluxe Refrigerator, reach-in, two-section, 29.0 cu. ft., self-contained, stainless steel front & side, galvanized back & top of the cabinet, stainless steel interior, hinged solid door with recessed handle, LED interior lighting, (6) adjustable stainless steel wire shelves, exterior LED digital thermometer, door-open alarm beeps, self-diagnostic monitoring system, Turbo cooling, automatic fan motor delays, door pressure release device, self-cleaning condenser equipped, door locks, bottom mount compressor, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.8 amps, NEMA 5-15P, ETL-Sanitation, cETLus, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product made with Hydrocarbon Refrigerants

This product comes with a NEMA 5-15P plug
