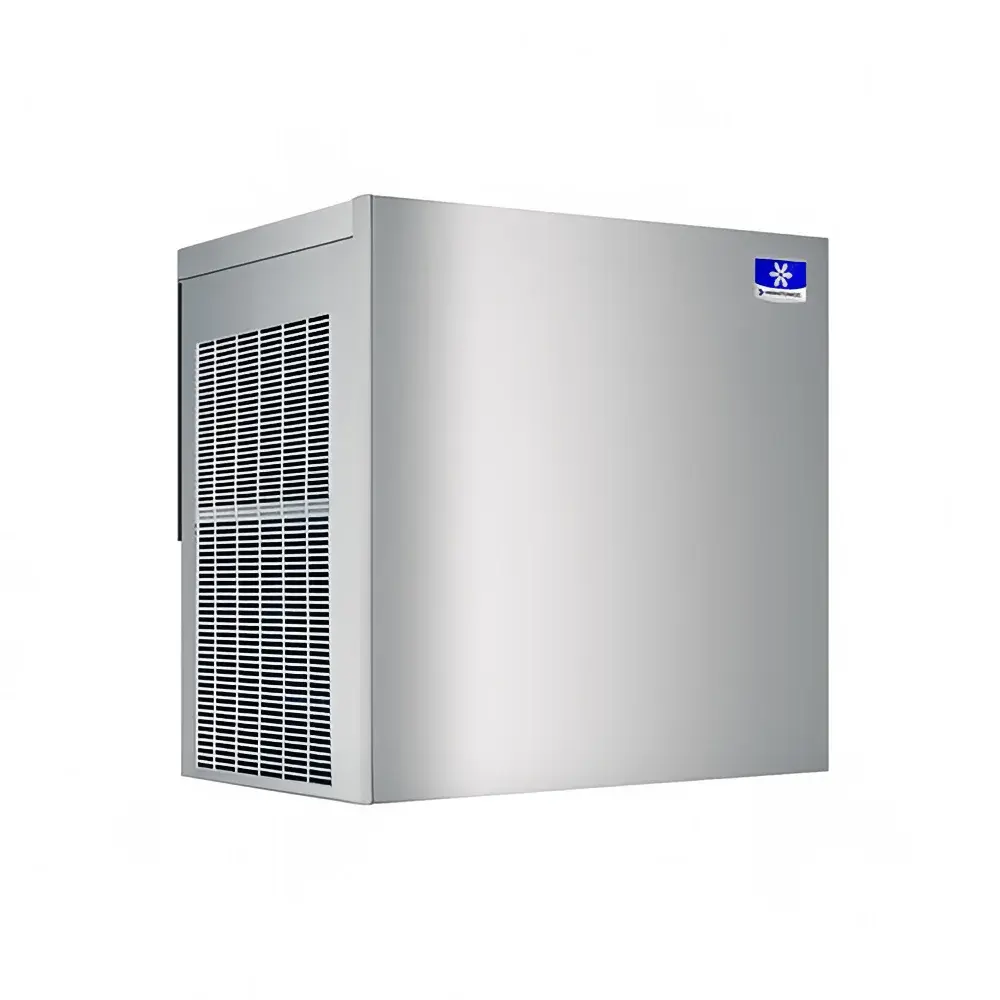

Manitowoc Ice RNP0620A 22" Nugget Ice Machine Head - 591 lb/24 hr, Air Cooled, 115v/1ph

The Manitowoc RNP0620A nugget ice machine produces 591 pounds of ice when ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. This unit dispenses chewable nugget-style ice, which is ideal for cooling soft drinks or crafting smoothies. For keeping internal conditions optimal, this nugget machine utilizes R290 refrigerant to minimize impact to the ozone layer. It flaunts a stainless steel exterior that's durable and corrosion resistant, and to extend its product life, it features high-load stainless steel bearings.

Overall, the Manitowoc RNP0620A ice machine head measures 22 inches wide by 235/8 inches deep by 26 inches high. It has a 3/8-in. water inlet and 1/2-inch drain to dispose of melted ice. When users install this unit, it requires a top and side clearance of 8 inches and back clearance of 5 inches. Because its condenser is self-contained, installation is simplified.

Product Details

• Produces 591 lbs./24 hours
• Makes nugget-style ice
• High-load stainless steel bearings
• Stainless steel exterior
• Self-contained, air-cooled condenser
• R290A hydrocarbon refrigerant
• Can be paired with the Manitowoc D-420 ice bin
• Ambient temperature range: 50-110 degrees F
• Water temperature range: 37-90 degrees F
• Pressure range: 14-80 PSI
• Must be paired with dispenser or bin (sold separately)

Dimensions & Utilities

• 22 in. W x 235/8 in. D x 26 in. H
• 1/2-in. ice drain connection
• 3/8-in. ice water inlet connection
• 13.5 A, 6.36 kW
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice RNP0620A within the 48 contiguous states.

From The Manufacturer

Ice Maker, nugget style, air-cooled, self-contained condenser, 22"W x 23-5/8"D x 26"H, production capacity up to 591 lb/24 hours at 70°/50° (451 lb AHRI certified at 90°/70°), bite size nugget, high-load stainless steel bearings, stainless steel exterior, R290A, 1 HP, NSF, cULus, CE, cETLus

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

Product made with Hydrocarbon Refrigerants

This unit produces nugget ice perfect for soft drinks, blended drinks, filling coolers, and dispensing.

Also called self-contained, this compressor type uses air for cooling
