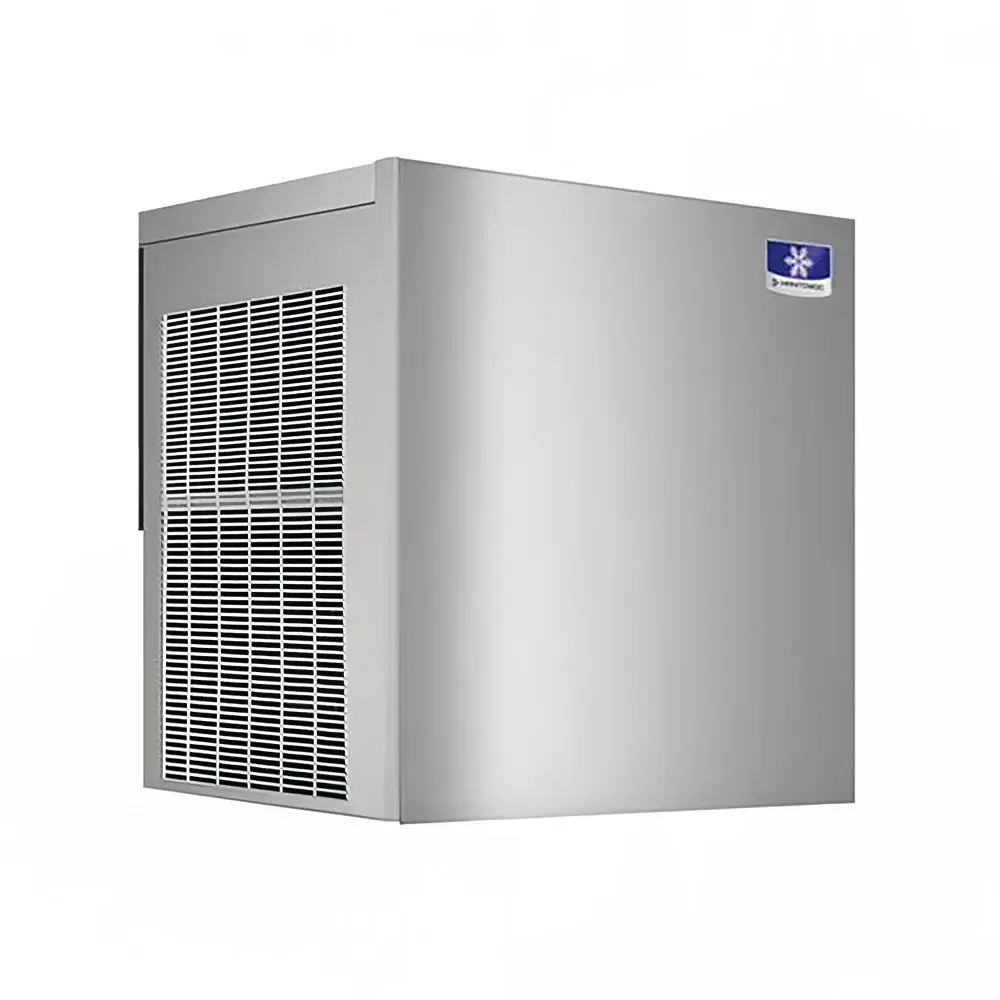

Manitowoc Ice RFP0620A 22" Flake Ice Machine Head - 730 lb/24 hr, Air Cooled, 115v/1ph

The Manitowoc RFP0620A-161 ice machine head produces flake ice—hard, small bits ideal for food displays, salad bars, and cold therapy. This ice can form around displayed items without bruising them. When ambient air is 70 degrees and incoming water is 50 degrees, this unit can produce 682 pounds of ice in 24 hours. Because its condenser is self-contained, installation is more straightforward than most remote setups. Its air-cooled mechanism is ideal for ambient areas that don't exceed 80 degrees Fahrenheit.

The Manitowoc RFP0620A-161 ice maker head measures 22 inches wide by 235⁄8 inches deep by 26 inches tall overall. Its exterior is made of heavy-duty stainless steel—a durable metal that resists corrosion, simplifies cleaning, and matches common back-of-house equipment for uniformity. For enhanced reliability, this unit is built with maintenance-free, high-load stainless steel bearings.

Product Details

• 682-lb. daily ice production
• Produces flake ice
• High-load, maintenance-free stainless steel bearings
• Air-cooled, self-contained condenser
• Eco-friendly R290 refrigerant
• Heavy-duty, corrosion-resistant stainless steel cabinet
• Ice storage bin not included
• Uses 12 gal. of water per 100 lbs. of ice
• Required ambient air temperature range: 50-110 degrees F
• Required incoming water temperature range: 37-90 degrees F
• Required incoming water pressure range: 14-80 PSI

Dimensions & Utilities

• 22 in. W x 235⁄8 in. D x 26 in. H
• 13.5-20 A, 5.58 kW, 1 HP
• 115 V/60 Hz/1 ph

*Free shipping on Manitowoc Ice RFP0620A within the 48 contiguous states.

From The Manufacturer

Ice Maker, flake-style, air-cooled, self-contained condenser, 22"W x 23-5/8"D x 26"H, production capacity up to 730 lb/24 hours at 70°/50° (506 lb AHRI certified at 90°/70°), high-load stainless steel bearings, stainless steel finish, 1 HP, cETLus, ETL-Sanitation, CE

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

Product made with Hydrocarbon Refrigerants

This unit produces flake ice perfect for salad bars, medical facilities, fresh seafood & produce displays, and blended beverages.

Also called self-contained, this compressor type uses air for cooling
