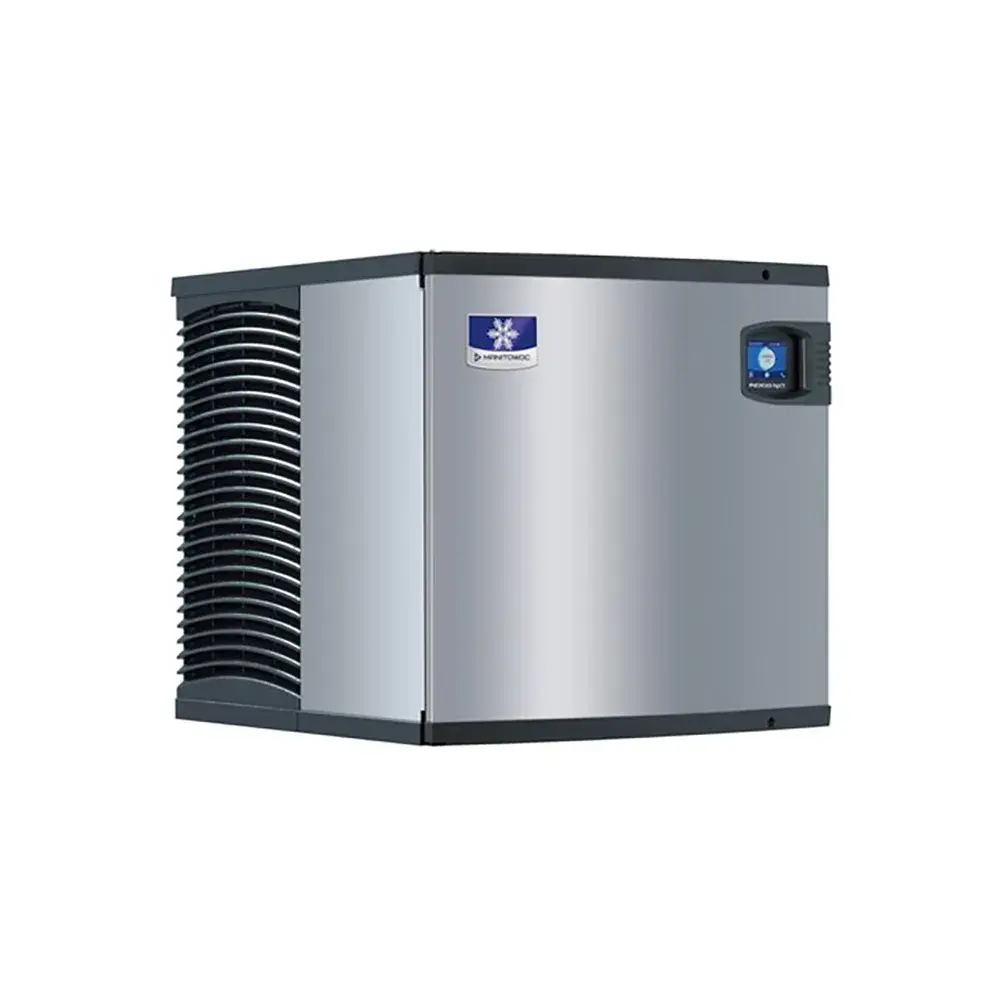

Manitowoc Ice IYT0620A 22" Indigo NXT™ Half Cube Ice Machine Head - 575 lb/24 hr, Air Cooled, 115v/1ph

The Manitowoc Ice IYT0620A Indigo NXT™ ice machine head has an easyTouch® display for programming operations such as if the unit should stop running during certain hours, setting its production quota to a daily amount, or solving problems using its troubleshooting diagnostics. In a 24-hour period, the head can generate 575 pounds of half-dice ice, which is a sufficient quantity for most small-scale restaurant operations. Compared to a water-cooled unit, this unit's air-cooled condensing system is practical and greatly reduces how much water is needed each day.

Designed to create half-size ice, this Manitowoc Ice IYT0620A commercial ice maker head has an acoustical ice sensing probe that monitors the cubes' thickness, ensuring each cube is 3⁄8 inch by 11⁄8 inches by 7⁄8 inch. A DuraTech® clear coat exterior fights stains and provides corrosion resistance even better than stainless steel. Certain internal components are removable for maintenance and cleaning.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Indigo NXT series
• 575-lb. maximum daily ice production
• 465-lb. AHRI-certified daily ice production
• Air-cooled system

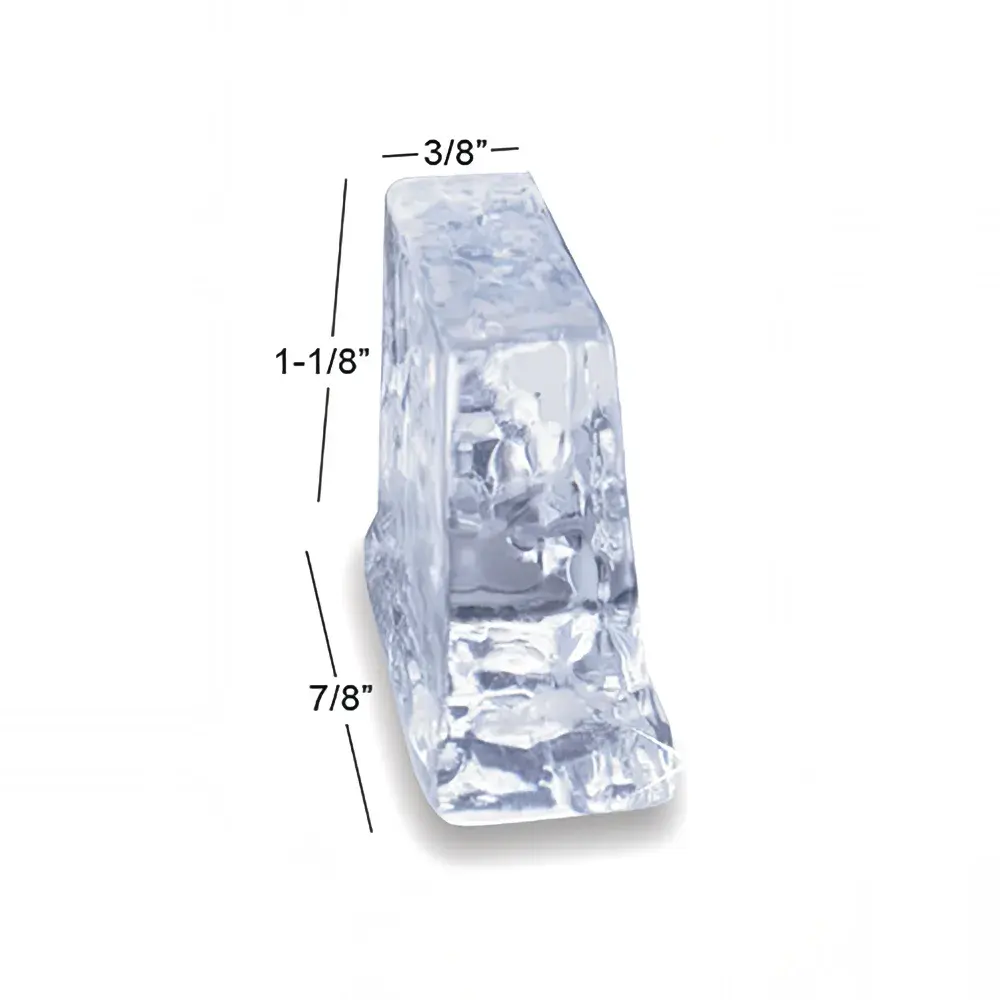

• Produces half-dice ice measuring 3⁄8 in. x 11⁄8 in. x 7⁄8 in.
• EasyTouch icon-based touch screen operates machine
• DuraTech exterior combats corrosion, resists dirt stains, and minimizes fingerprint smudges
• Acoustical ice sensing probe provides the correct ice cube thickness
• Water trough, distribution tube, curtain, water probe, and water pump are all removable promptly for cleaning
• Intelligent diagnostics are useful troubleshooting tools
• Ice bin sold separately
• Uses R410A refrigerant
• Ambient temperature range: 40-110 degrees F
• Incoming water temperature: 40-90 degrees F
• Incoming water pressure: 20-80 PSI
• 5,400 average BTU; 6,300 peak BTU

Dimensions & Utilities

• 22 in. W x 241⁄2 in. D x 211⁄2 in. H
• 12.2 A
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IYT0620A within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 575 lb/24 hours at 70°/50° (465 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410 refrigerant, NSF, cULus, CE, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

Also called self-contained, this compressor type uses air for cooling
