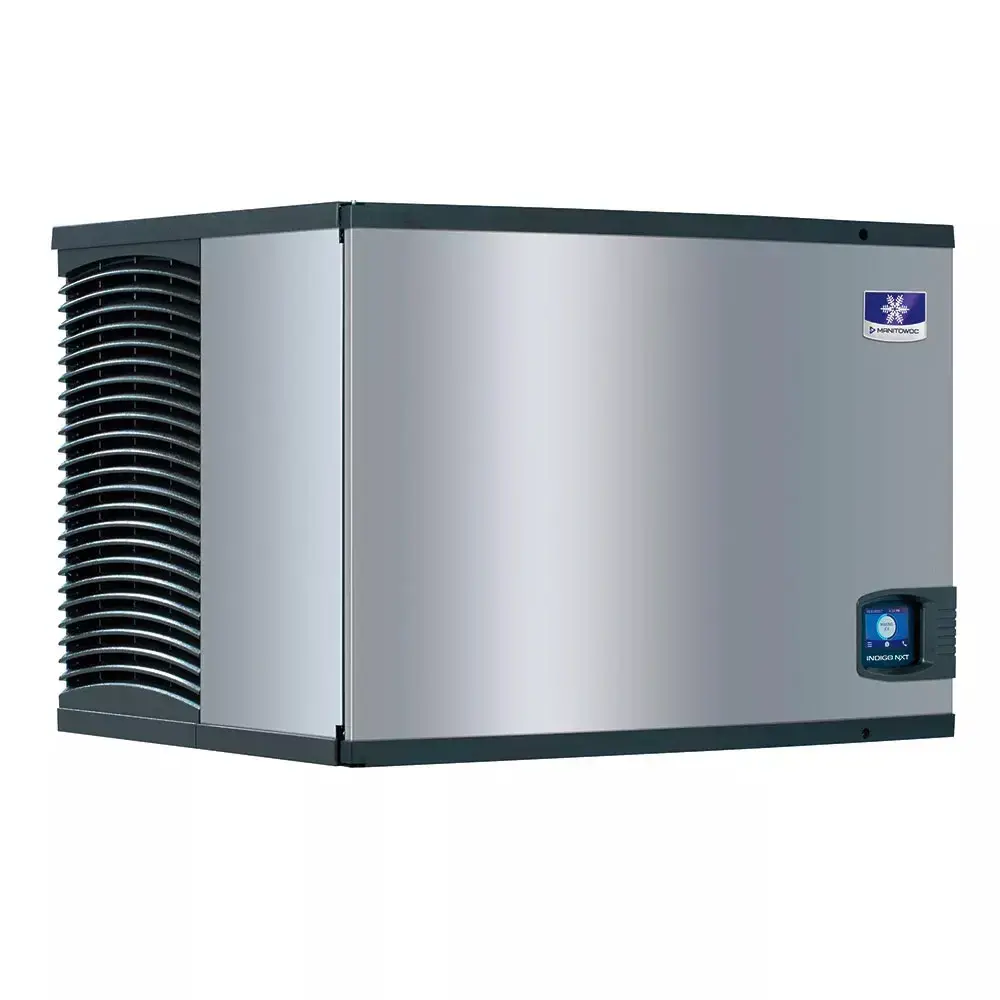

Manitowoc Ice IYF0500N 30" Indigo NXT™ Half Cube Ice Machine Head - 525 lb/24 hr, Remote Cooled, 115v/1ph

Designed to be paired with a remote cooler and an ice storage bin, the Manitowoc IYF0500N Indigo NXT™ ice machine head is remote cooled. Half-dice ice production can be programmed by volume or by time of day to save on electricity costs during slow periods. Its easyTouch® display, located on the front of the unit, provides icon-based information about operational and preventive maintenance updates, and its temperature can also be adjusted through this touchscreen device. Maintenance and diagnostic feedback are available 24 hours to prevent expensive maintenance buildups over time.

The Manitowoc IYF0500N ice maker head produces between 465 and 525 pounds of half-dice ice in 24 hours. It uses an acoustical ice-sensing probe to ensure consistent thickness of ice, and its active sense technology monitors constant collection of ice for proper production. This unit's DuraTech® exterior, which is applied on top of the stainless steel construction, provides a clear coating that fends off greasy fingerprints. For general maintenance, its hinged front door swings out, providing access to remove its water trough, distribution tube, curtain, water probe, and water pump. Between cleanings, certain components are protected from fast bacterial growth with the AlphaSan® antimicrobial technology. Overall, the unit is 30 inches wide by 24 inches deep by 21.5 inches high.

Product Details

• Part of the Indigo NXT series
• Air cooled
• Remote condenser sold separately
• Maximum daily production: 525 lbs. per 24 hours
• AHRI-certified production: 465 lbs. per 24 hours
• Half-dice ice dimensions: 0.38 in. x 1.13 in. x 0.88 in.
• Programmable ice production based on volume and time
• DuraTech exterior
• Acoustical ice-sensing probe and active sense
• easyTouch display
• 24-hour preventive maintenance and diagnostic feedback
• Hinged swing-out front door
• Automated reminder/alert icon
• easyTouch display with date/time and 13 language options
• Continuous operating status and 1-touch cleaning with instructions
• Removable water pump, water probe, curtain, distribution tube, and water trough
• AlphaSan antimicrobial built in
• Uses R404A refrigerant
• Ideal incoming air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 3,800-BTU heat transfer capacity
• Manitowoc will not honor the warranty on a remote unit paired with an existing condenser (must be purchased with condenser)

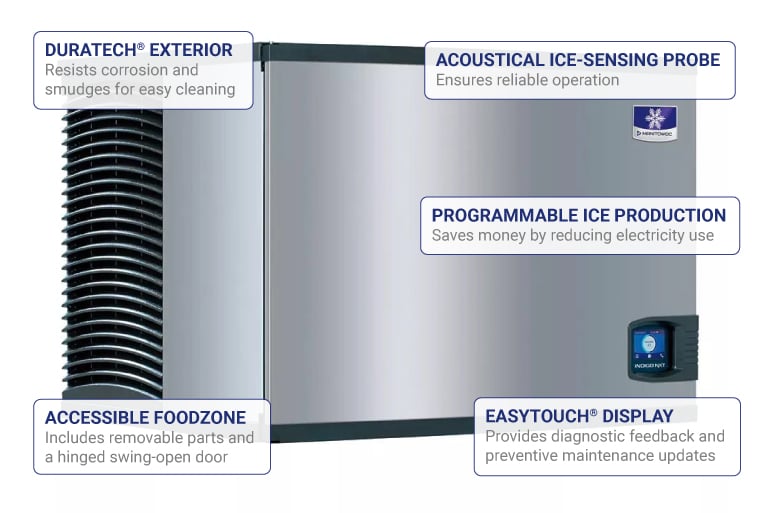

Product Features

Dimensions & Utilities

• 30 in. W x 24 in. D x 21.5 in. H
• 14.8 A, 6 kW
• 115 V/60 Hz/1 ph

*Free shipping on Manitowoc Ice IYF0500N within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, designed for remote refrigeration (vertical condensing unit and lines sold separately), 30"W x 24"D x 21-1/2"H, production capacity up to 525 lb/24 hours at 70°/50° (465 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R404A refrigerant, NSF, cULus, CE

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

This unit requires an external cooling system (sold separately)
