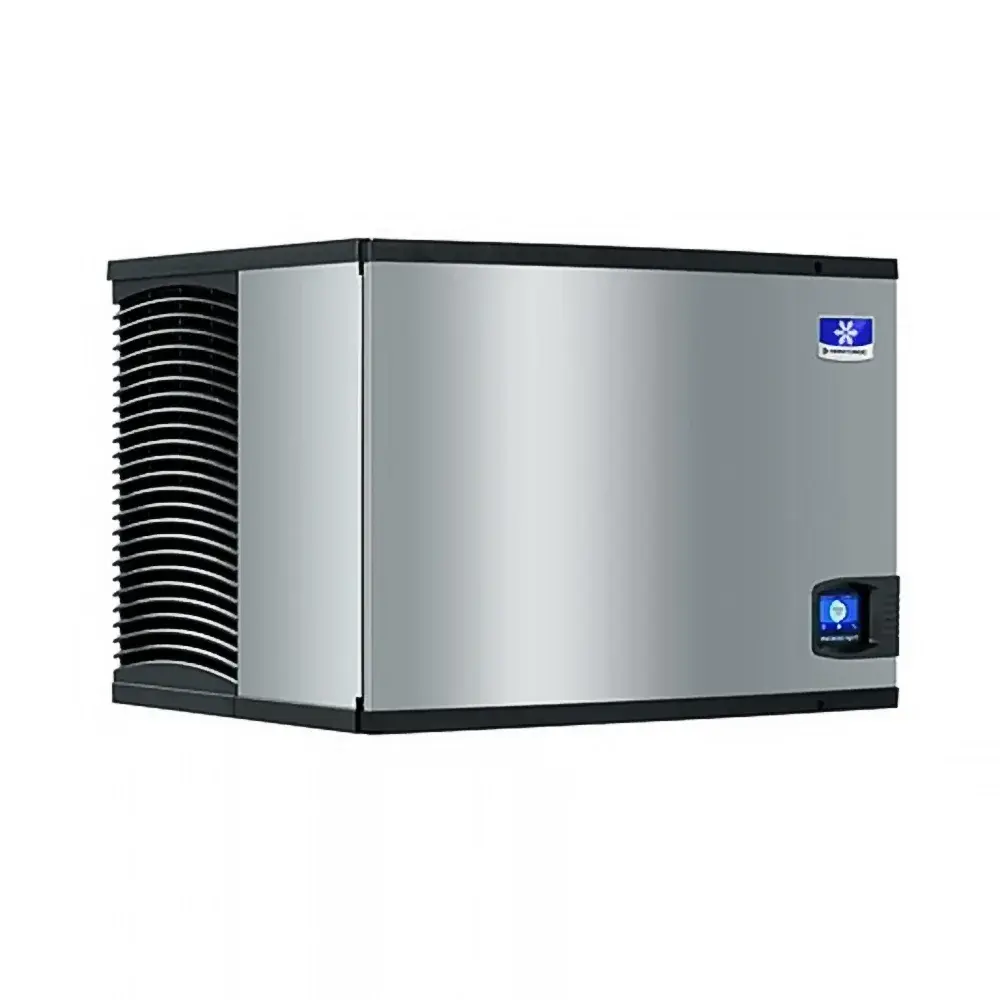

Manitowoc Ice IRT0500A 30" Indigo NXT™ Large Cube Ice Machine Head - 500 lb/24 hr, Air Cooled, 115v/1ph

The Manitowoc IRT0500A Indigo NXT™ ice machine head has an air-cooled condensing unit and produces between 386 and 500 pounds of regular-size ice cubes every day. To suit different applications and fit into the hours of any operation, the ice production can be programmed. Ice thickness is measured by a sensing probe, ensuring it's the ideal size. Operation is simple with the easyTouch® display, and the unit runs 24-hour preventive maintenance and gives diagnostic feedback. It has a stainless steel exterior, and with a DuraTech® container, it resists dirt and fingerprints.

A front door on the Manitowoc IRT0500A ice maker head swings open so the foodzone can be cleaned. Inside, a water trough, distribution tube, curtain, water probe, and water pump can be removed for deep cleaning. In between cleanings, certain components remain sanitized with the AlphaSan® antimicrobial agent. Able to fit on top of a D-400 or D-570 ice storage bin, this ice maker is 30 inches wide, 24 inches deep, and 21.5 inches high.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Indigo NXT series
• Air-cooled condensing unit is self-contained
• Maximum daily production: 500 lbs. per 24 hours
• AHRI-certified production: 386 lbs. per 24 hours
• Ice size: 1.13 in. x 1.13 in. x 0.88 in.
• Programmable ice production
• Acoustical ice-sensing probe
• Date and time display with 1-touch asset information access
• Automatic accessory detection and continuous operating status
• Cleaning cycle is activated with 1 touch
• Simple-to-use easyTouch display
• 24-hour preventive maintenance
• Accessible foodzone components through front door
• Removable curtain, distribution tube, water pump, water trough, and water probe
• Built-in AlphaSan® antimicrobial on some foodzone components
• DuraTech coating on stainless steel construction
• Ice bin is sold separately
• Uses R410A refrigerant
• Ideal incoming air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 3,800-BTU heat capacity transfer

Dimensions & Utilities

• 30 in. W x 24 in. D x 21.5 in. H
• 11.5 A, 5.04 kW
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IRT0500A within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 500 lb/24 hours at 70°/50° (386 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, regular size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR® (Replaces IR-0500A; CONTACT DISTRIBUTOR FOR AVAILABILITY)

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces full-cube ice ideal for soft drinks, bagging, bulk cooling, and filling coolers.

Also called self-contained, this compressor type uses air for cooling
