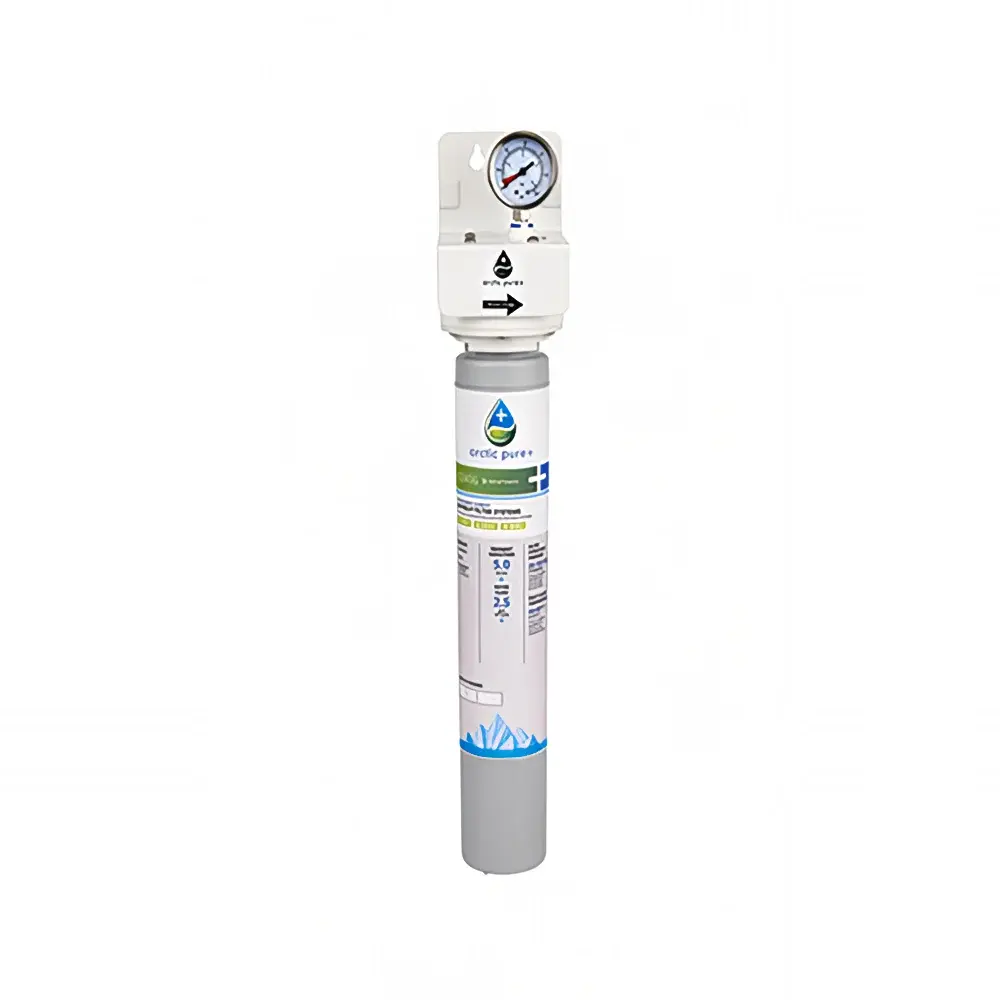

Manitowoc Ice AR-PRE-P Arctic Pure® Plus Pre-Filter Assembly

The Manitowoc AR-PRE-P Arctic Pure® Plus pre-filter must be used with the Manitowoc AR-10000-P water filter, AR-20000-P water filter, or AR-40000-P water filter to achieve maximum filtration efficiency, extend cartridge life, and reduce premature replacement. This 5-micron-filtration-level unit removes hard sediments, sand, dirt, and rust from incoming water to protect the ice maker's solenoids, valves, and inlets. For flexibility, it's compatible with all undercounter cube, flake, and nugget ice machines and all countertop nugget ice makers.

This Manitowoc AR-PRE-P pre-filter measures 413⁄100 inches wide by 412⁄25 inches deep by 22 inches tall and includes a head, shroud, hardware, mounting assembly, and filter cartridge. It withstands a maximum service flow rate of 1.5 gallons per minute, operating air temperature between 40 and 110 degrees Fahrenheit, operating water temperature between 40 and 90 degrees Fahrenheit, and an operating pressure from 35 to 125 PSI.

Product Details

• Featured in the Arctic Pure Plus series
• 5-micron filtration level
• Reduces hard sediments, sand, dirt, and rust from water
• Protects ice maker's solenoids, valves, and inlets
• Compatible with all undercounter cube, flake, and nugget ice machines and countertop nugget ice makers
• Requires installation with Manitowoc AR-10000-P water filter assembly, the Manitowoc AR-20000-P water filter assembly, or the Manitowoc AR-40000-P water filter assembly
• Includes head, shroud, hardware, mounting assembly, and filter cartridge
• Maximum service flow rate: 1.5 GPM
• Operating air temperature range: 40-110 degrees F
• Operating incoming water temperature range: 40-90 degrees F
• Operating pressure range: 35-125 PSI
• Filter must be changed every 6 months or when water pressure drops below 35 PSI
• For cold water use only
• Overall dimensions: 413⁄100 in. W x 412⁄25 x 22 in. H

Product Features

*Manitowoc Ice AR-PRE-P is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

Arctic Pure® Plus Pre-Filter Assembly, 5 micron filtration includes head, shroud, hardware, mounting assembly, & (1) filter cartridge, (NOT stand-alone; should be used in conjunction with primary water filter assembly)

*Image may not depict product color, inclusions or accessories.
